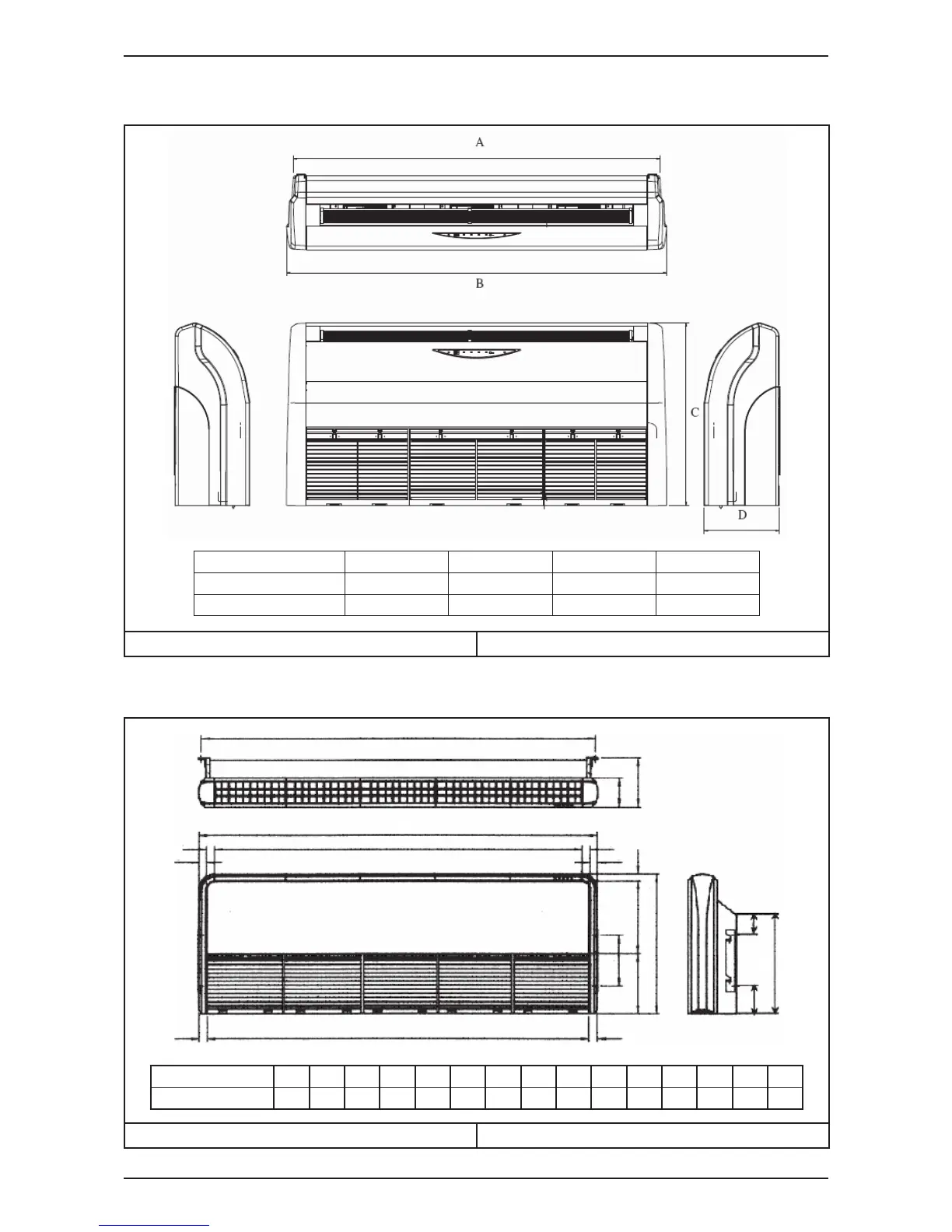

M5LCY-II_(i) Outlines & Dimensions
31
Indoor Unit
Model: M5CMY 40/50ER
Model A B C D
M5CMY 40ER 1491.0 1538.0 634.0 260.0
M5CMY 50ER 1739.0 1786.0 634.0 260.0
Drawing number: 70014087318 Note: Dimension in mm
Indoor Unit
Model: M5CMY 62CR
K
D
B
C
B
C
CC
C
L
H
X
TO
G
F
A
Model A B C D E F G H I J K L O T X
M5CMY 62CR 1750 40 36 1930 1830 608 352 292 285 140 1880 250 126 132 508
Drawing number: - Note: Dimension in mm
