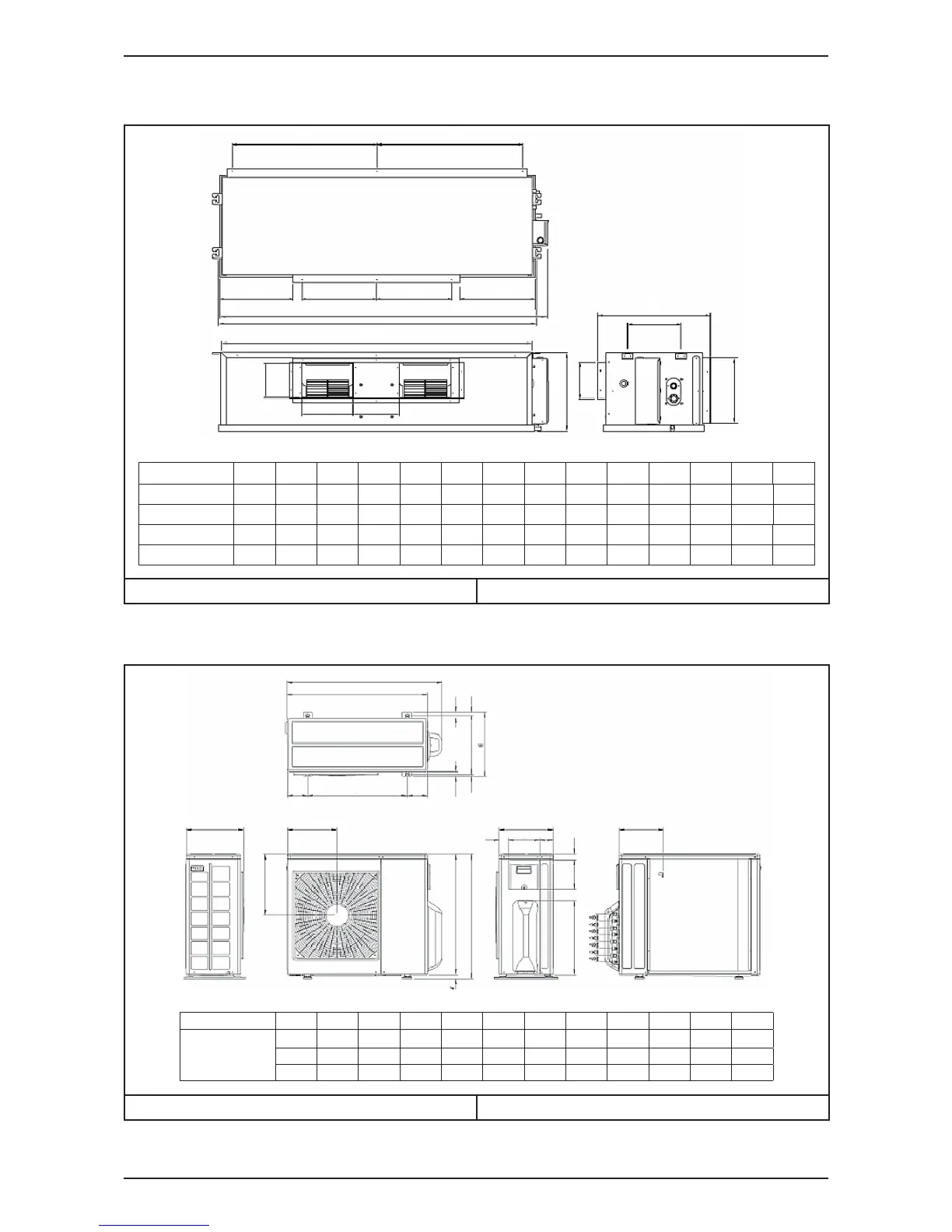

Outlines & Dimensions M5LCY-II_(i)
32
Indoor Unit
Model: M5CCY 28/38/50/60CR
B
C
D
MN
L
F
I
J
E
KK
G
H
AA
E
Model A B C D E F G H I J K L M N
M5CCY 28CR 372 1007 959 920 410 295 600 339 121 213 64 100 239 214
M5CCY 38CR 371 1312 1264 1225 563 315 638 401 183 233 217 169 251 238
M5CCY 50CR 359 1369 1326 1287 594 378 541 256 173 306 256 161 248 220
M5CCY 60CR 359 1569 1526 1487 694 378 541 256 173 306 356 161 248 220
Drawing number: - Note: Dimension in mm
Indoor Unit
Model: M5LCY 28CR
A
D
GT
HL-
P
NO
T
BI
J
FUU
V
RQM
VK
C
Model A B C D E F G H I J K L
M5LCY 28CR
940 348 756 855 392 733 603 328 303 370 362 271
MNOPQR S T UVWX
448 190 80 58 180 32 39 126 32 15 23 44
Drawing number: 7001411342 Note: Dimension in mm
