4.6 Smart Commander Software Interface
Smart Commander Service version has two different windows. The first window is named Circuit Monitor. User
is allows to control and monitor the indoor and outdoor parameter under this windows. The Server Monitor
window allows user to plot graph using the data already obtain when the Smart Commander is connected to the
MDS system.
4.6.1 Circuit Monitor
Circuit monitor interface is used to monitor all parameter of indoor and outdoor which connected to Smart
Commander.

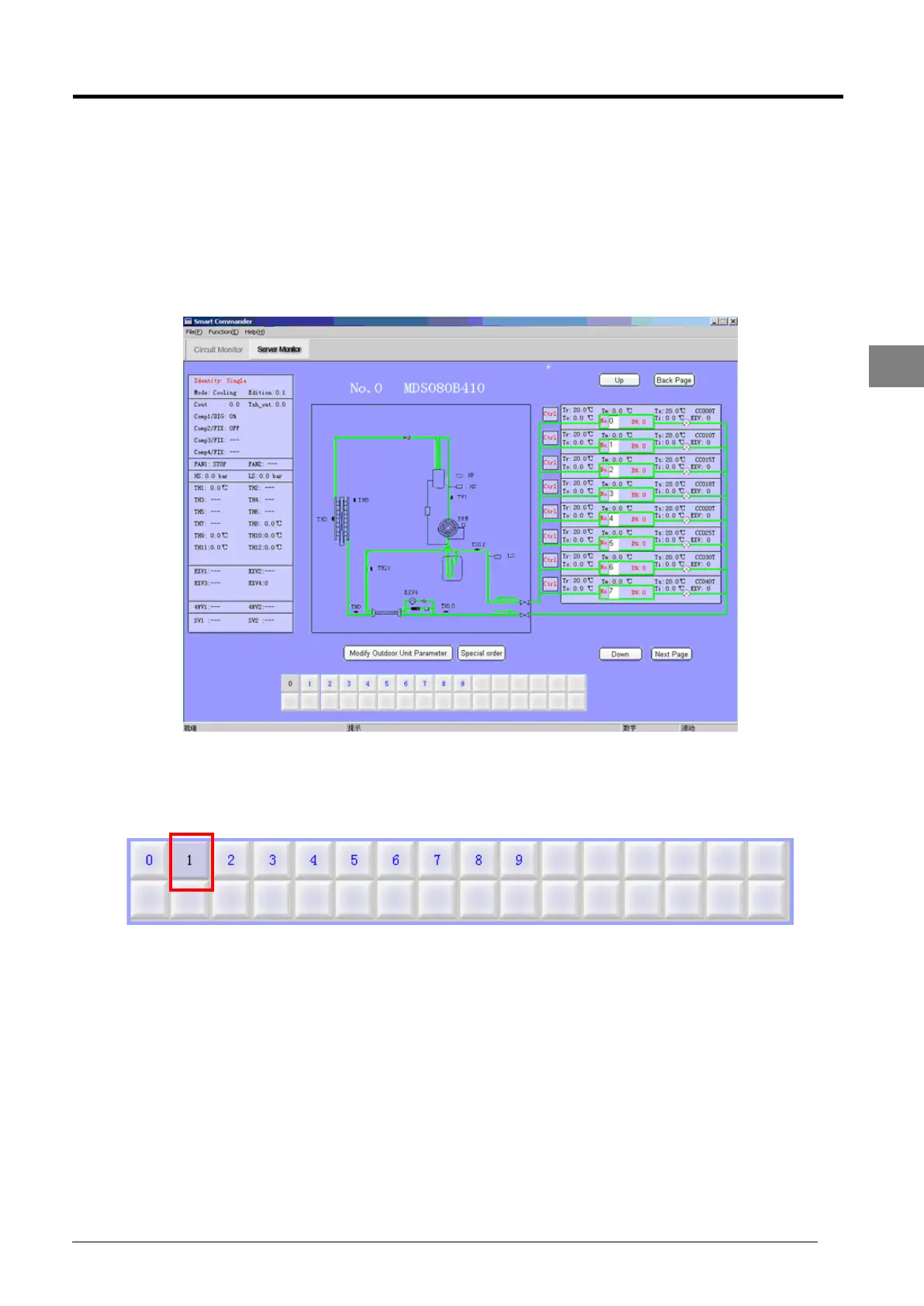

Circuit Monitor Window in Smart Commander
If the MDS units are connected in a network, user can observe all parameter of outdoor unit through the outdoor
set address in the PCB. Once the outdoor is selected, the relevant outdoor unit number will be highlighted with a
darker color.
Control Panel for Outdoor Selection
There are three major parts in the Circuit Monitor window.
i. Outdoor Unit Monitoring
ii. Outdoor Refrigerant Diagram
iii. Indoor Unit Control and Monitoring
The function and usage of these parts is shown in the following pages. Other than that, the Smart Commander
(Service Version) software allows advance users to modify outdoor unit parameters. This function will be shown
in the next section, 4.7 Software Additional Function.
