19
Kitchen

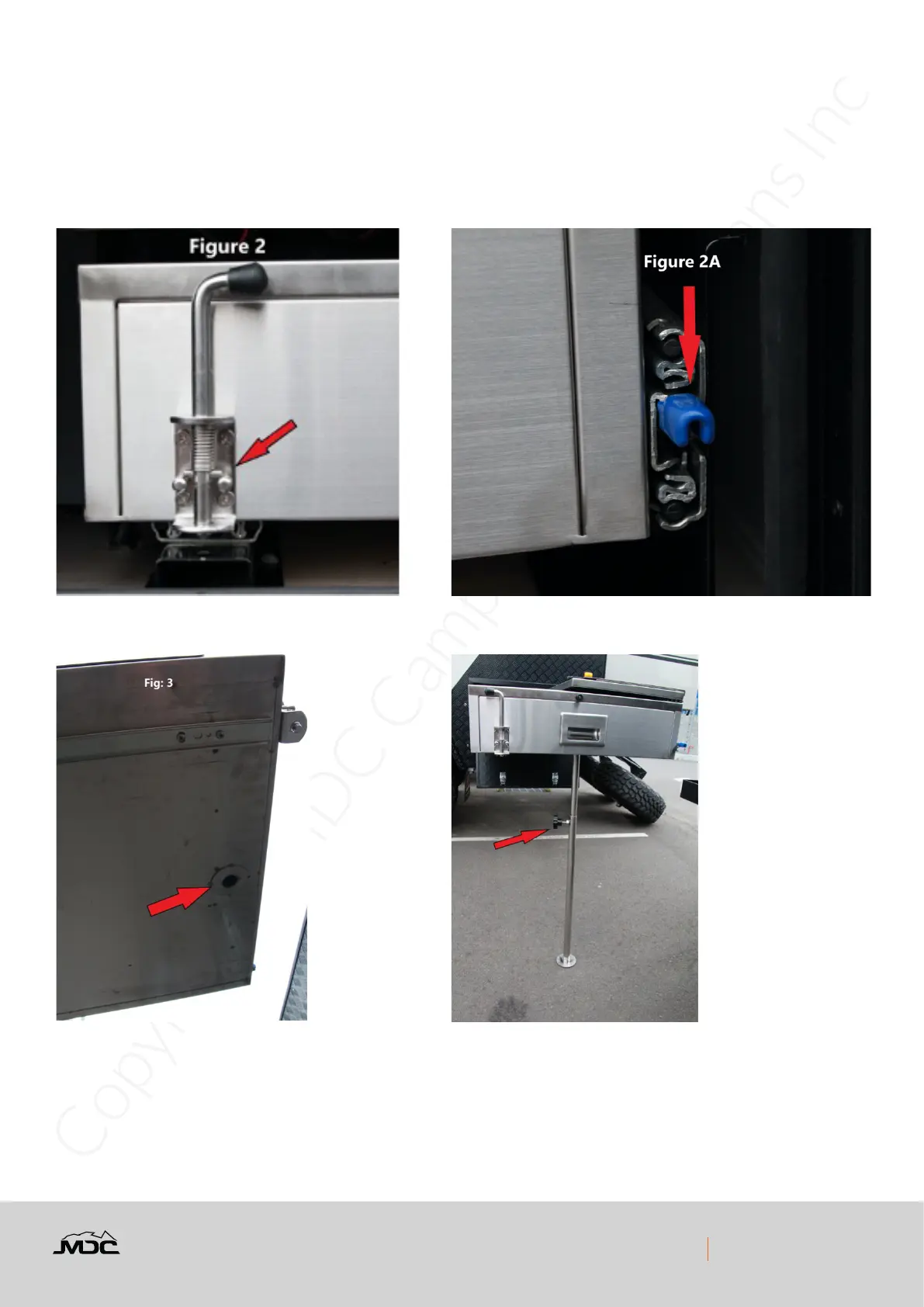

Before sliding out kitchen, raise the pad bolt and turn to lock in the up position (Fig: 2)
Push down blue latch on the slide mechanism and pull kitchen out. (Fig: 2a)
When kitchen is extended t the support leg into its receiver (Fig: 3)
Extend support leg and secure locking screw (Fig: 3a)
(Fig: 3a)(Fig: 3)
