MDC XT12 2021 - Coupling

www.marketdirect.com.au Ph: 1300 494 494
32

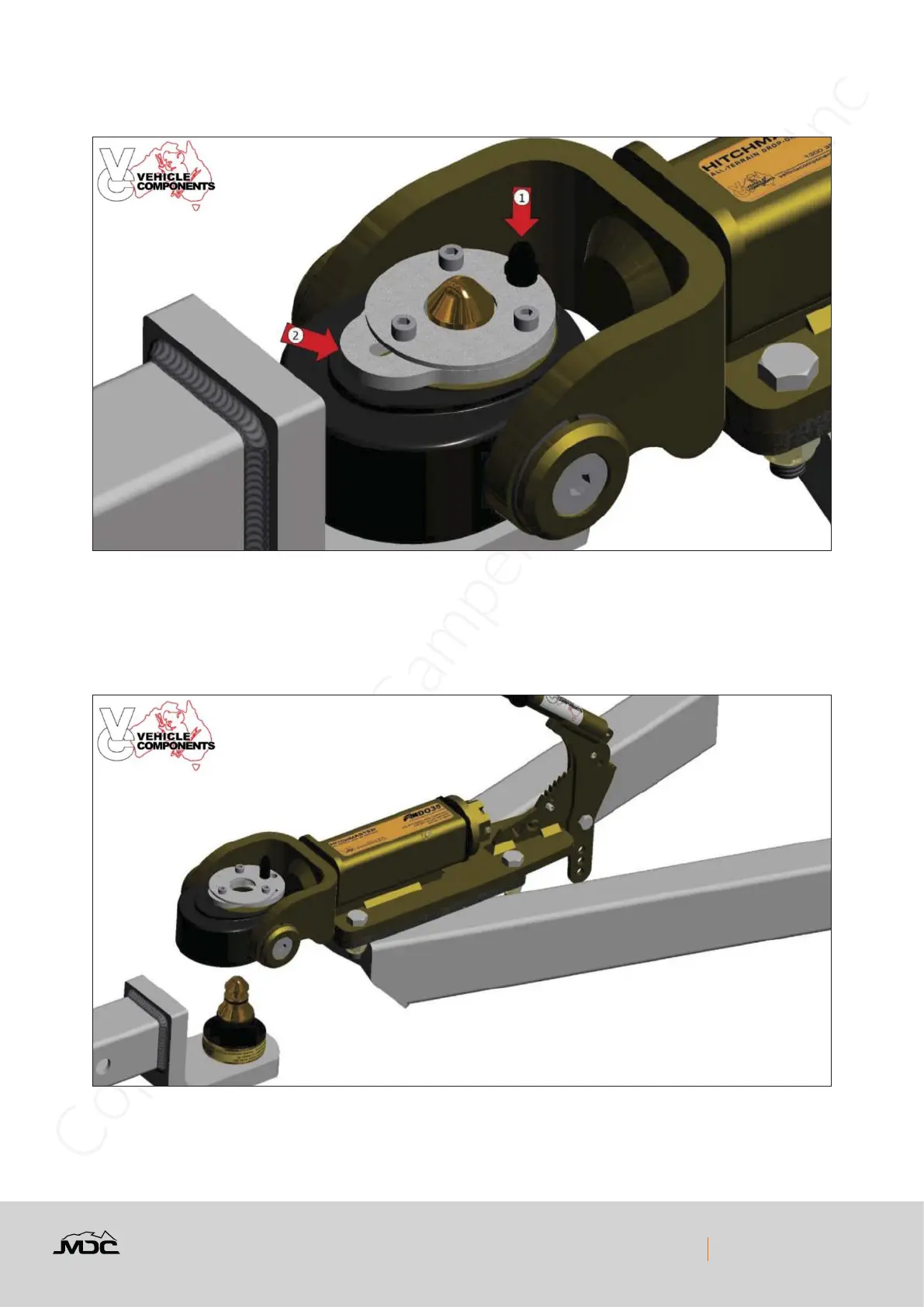

Push down the button 1 and push the locking mechanism back 2. When the locking mechanism is all the way back
release the button while holding the mechanism to ensure it does not spring back to the locked position.
Lift the coupling up off the tow pin.
Uncoupling
STEP 1
STEP 2
