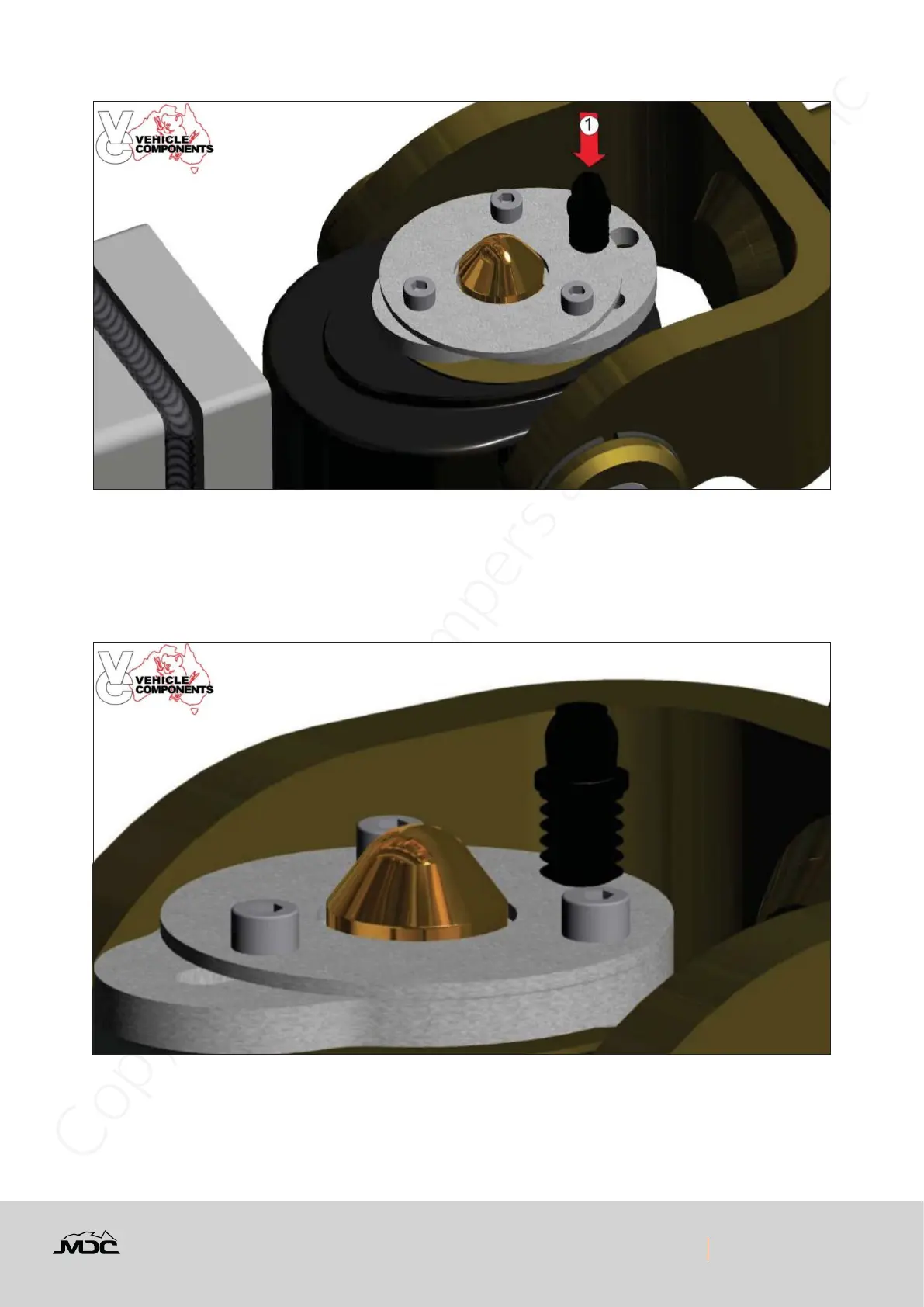

Make sure the tow pin is seated inside the universal and the tow pin top is sticking out of the locking mechanism
(see below). Press the button (1) to release the locking mechanism there will be an audible locking noise at which
point the mechanism will return to the initial position as shown in step 1. Verify the pin is correctly through the
mechanism and assemble the cap. If the cap will not t check the locking mechanism is in the correct locked
orientation.
Detail view of pin through locking mechanism.
STEP 3
