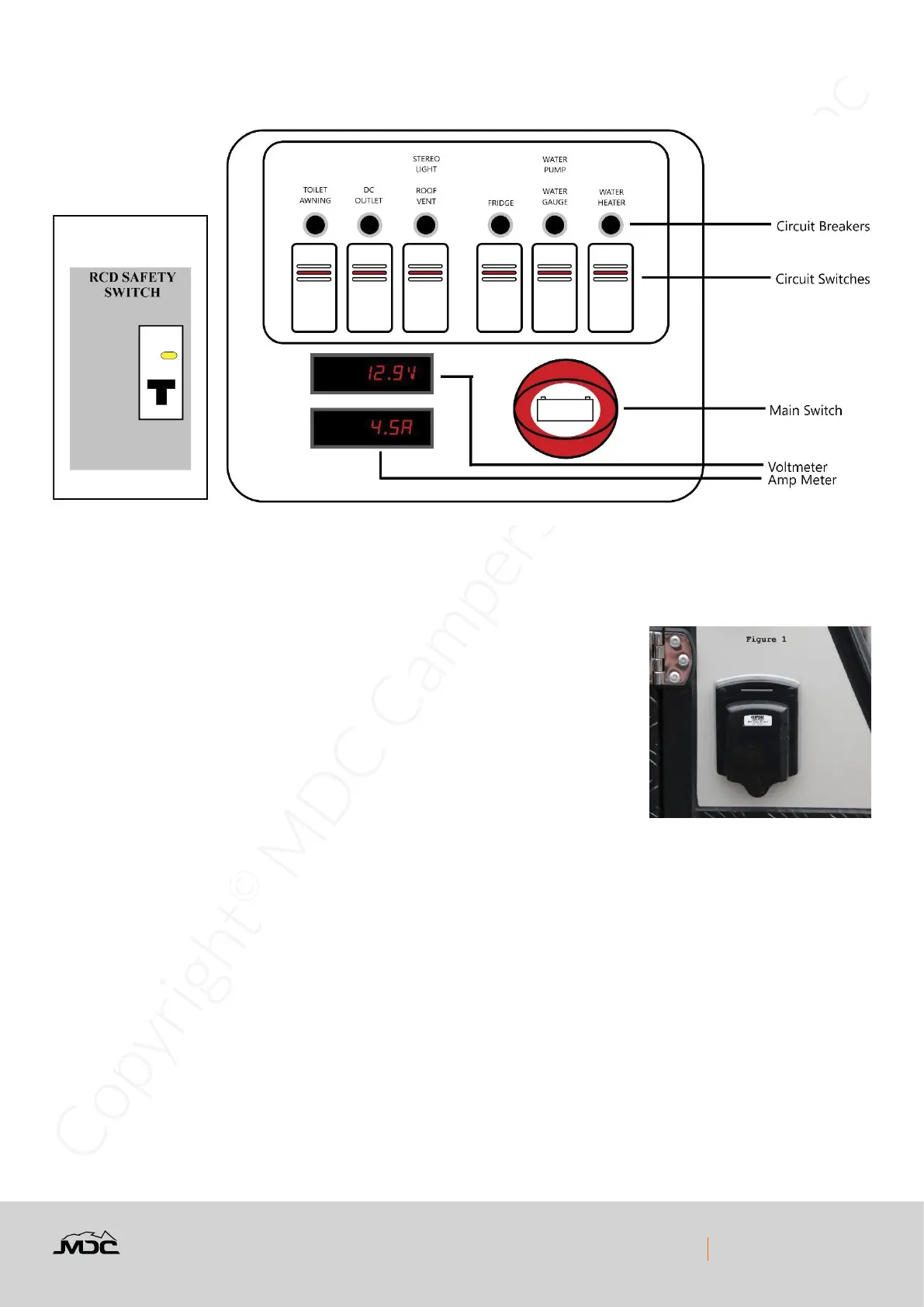

Electrical Panel
Control Panel
*Voltmeter will indicate battery voltage when idle or charge voltage when charging.
* Amp meter will show current being used not charge current.
Connecting to Mains Power
The Projecta charger in your caravan is connected via the 15A exterior socket.
To use site power, you will require a 15A power lead connected to a 15A outlet
(gure 1). In the event a 15A outlet is unavailable you will need a conversion box
that will step up from 10A to 15A with a safety switch. Never leave power leads
coiled when in use, lay the lead out back and forward in a manner that won’t be a
trip hazard or risk damage to the lead.
Charging from Mains Power
You caravan will charge from mains power via the Projecta 7 stage charger. Ensure the charger is plugged into its
dedicated outlet in its bay and is switched on. The factory batteries in your XT12 are AGM and the charger must be
set for AGM batteries.
Solar Power
The roof mounted solar panels will charge automatically provided there is enough radiated energy from the sun.
Motor Vehicle
Your towing vehicle should be tted with an Anderson plug connection to charge your caravan while towing.
See “Charging the Caravan While Driving” section.
