Adjuster Automove Type

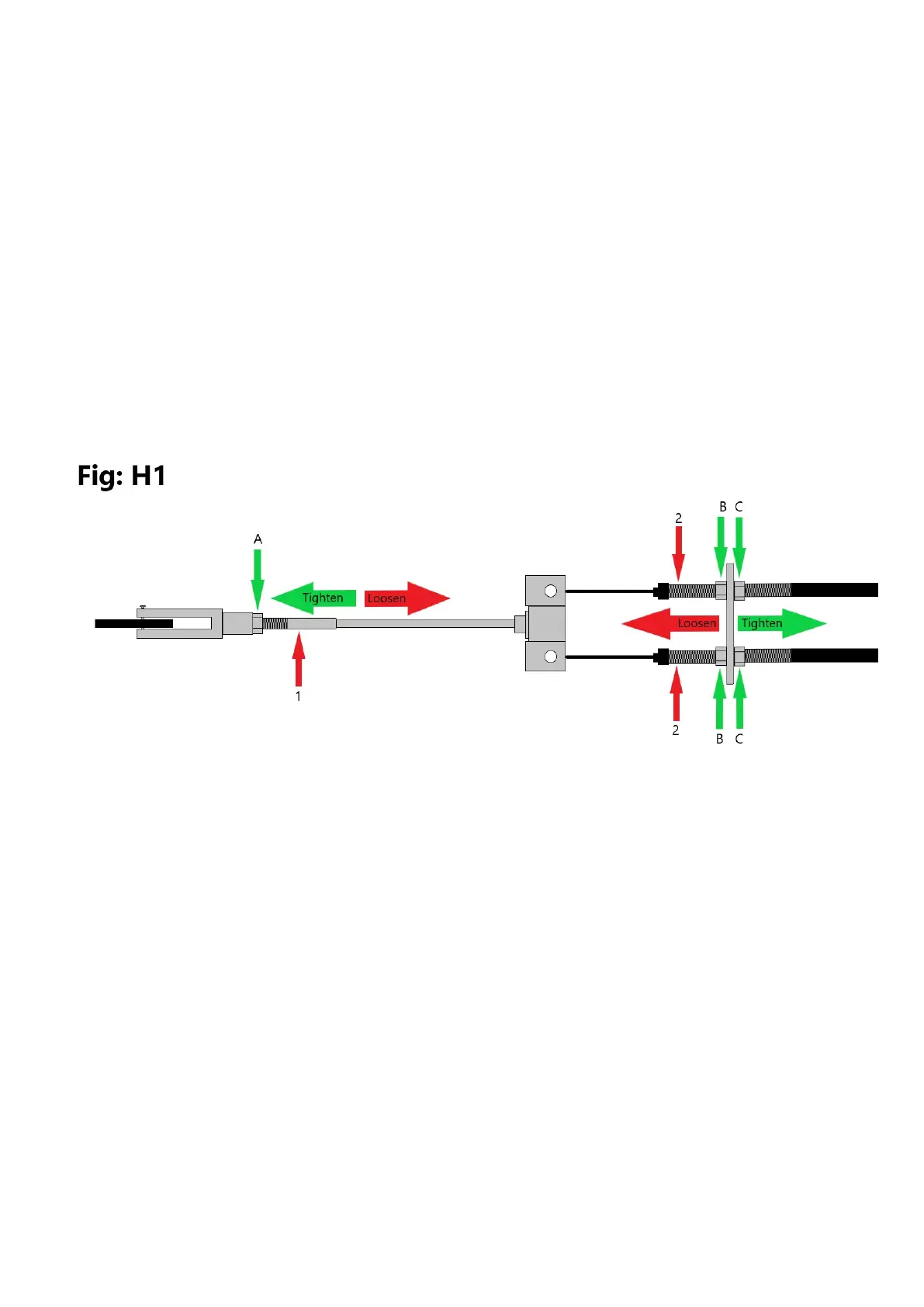

Adjusng the automove style handbrake on later models is done as follows.
To adjust the le and right side simultaneously:
1. Loosen locknut A
2. Turn sha 1 clockwise, shortening the length exposed unl desired adjustment achieved.
3. Re-ghten locknut A
For extended adjustment or to balance le and right cables:
1. Choose the side you want to adjust and undo locknut B.
2. Turn locknut C behind mounng bracket clockwise in the direcon of the handbrake lever while loosenin
g
l
ocknut B to ghten the cable and apply more handbrake.
3. Turn locknut B clockwise towards the backing plate while loosening locknut C to reduce handbrake.
4. When finished, ghten locknuts to prevent further movement.
