WebDAQ 504 User's Guide Introducing the WebDAQ 504
7

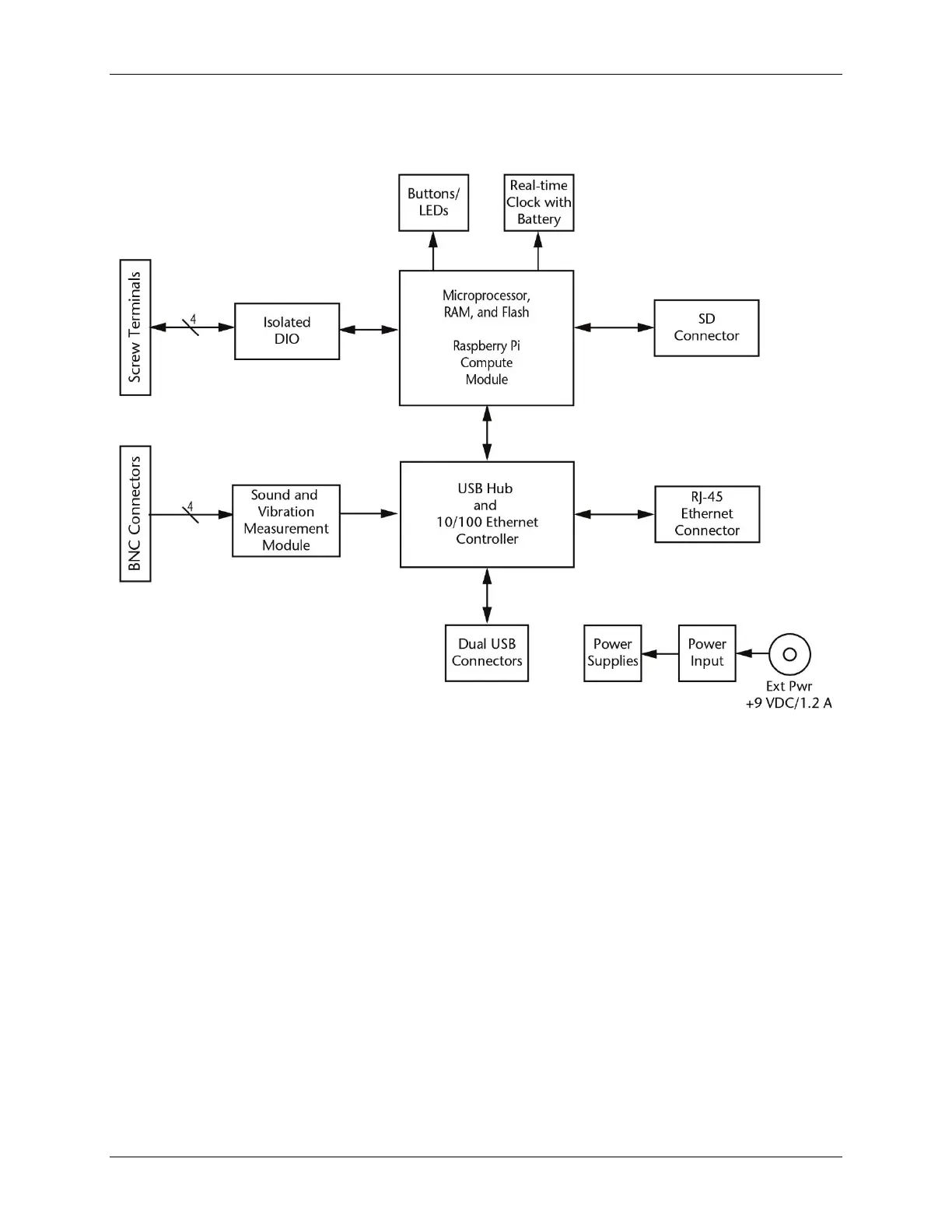

Functional block diagram
Device functions are illustrated in the block diagram shown here.
Figure 1. WebDAQ 504 functional block diagram
Unpacking
As with any electronic device, you should take care while handling to avoid damage from static
electricity. Before removing the board from its packaging, ground yourself using a wrist strap or by simply
touching the computer chassis or other grounded object to eliminate any stored static charge.
