OPERATOR CONTROLS
BASE CONTROLS
CONTROL DESCRIPTION
1 Lift/Lower Switch Use to control the lift and lowering of the platform from the base
panel, when “BASE” position is selected as the primary control
station.
2 Circuit-breaker Pops out when there is excessive electrical load in the 12-volt
control circuit. Push in to reset.
3 Base/Off/Platform Select “BASE” position to control operation of machine using
Selector Switch the base controls. Select “PLATFORM” position to control opera-
tion of machine using the platform console.
NOTE: A key shall be provided for European machines and will be
removable in “PLATFORM” position only.
4 Battery Gauge Indicates percent of charge left in batteries.
(Optional)
5 Emergency Stop Use to stop all functions in an emergency. Push for emergency
Button stop. To reset turn clockwise.
6 Hour Meter Indicates total elapsed time the machine has been operated.

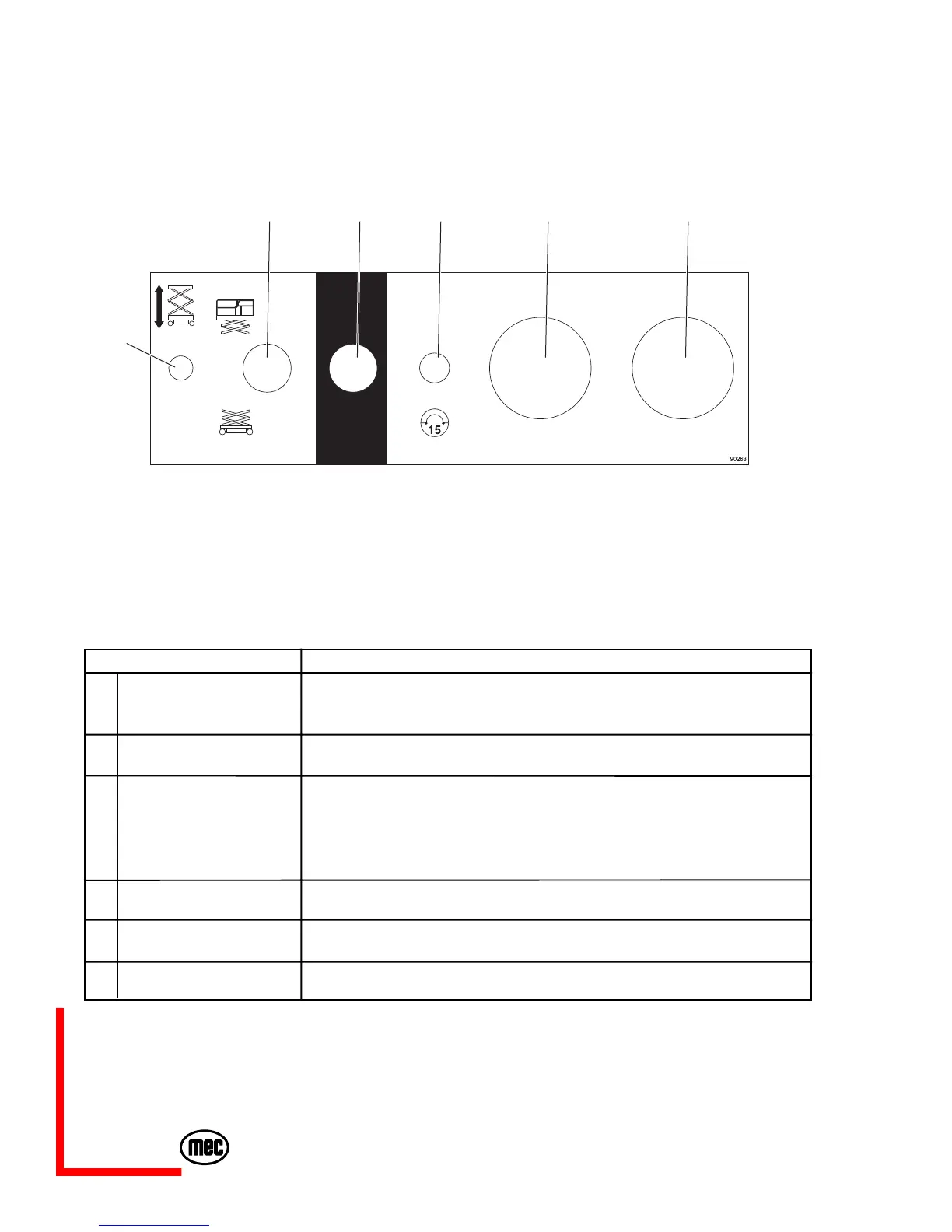

1
3 5 2 4 6
90263
