Component Locations

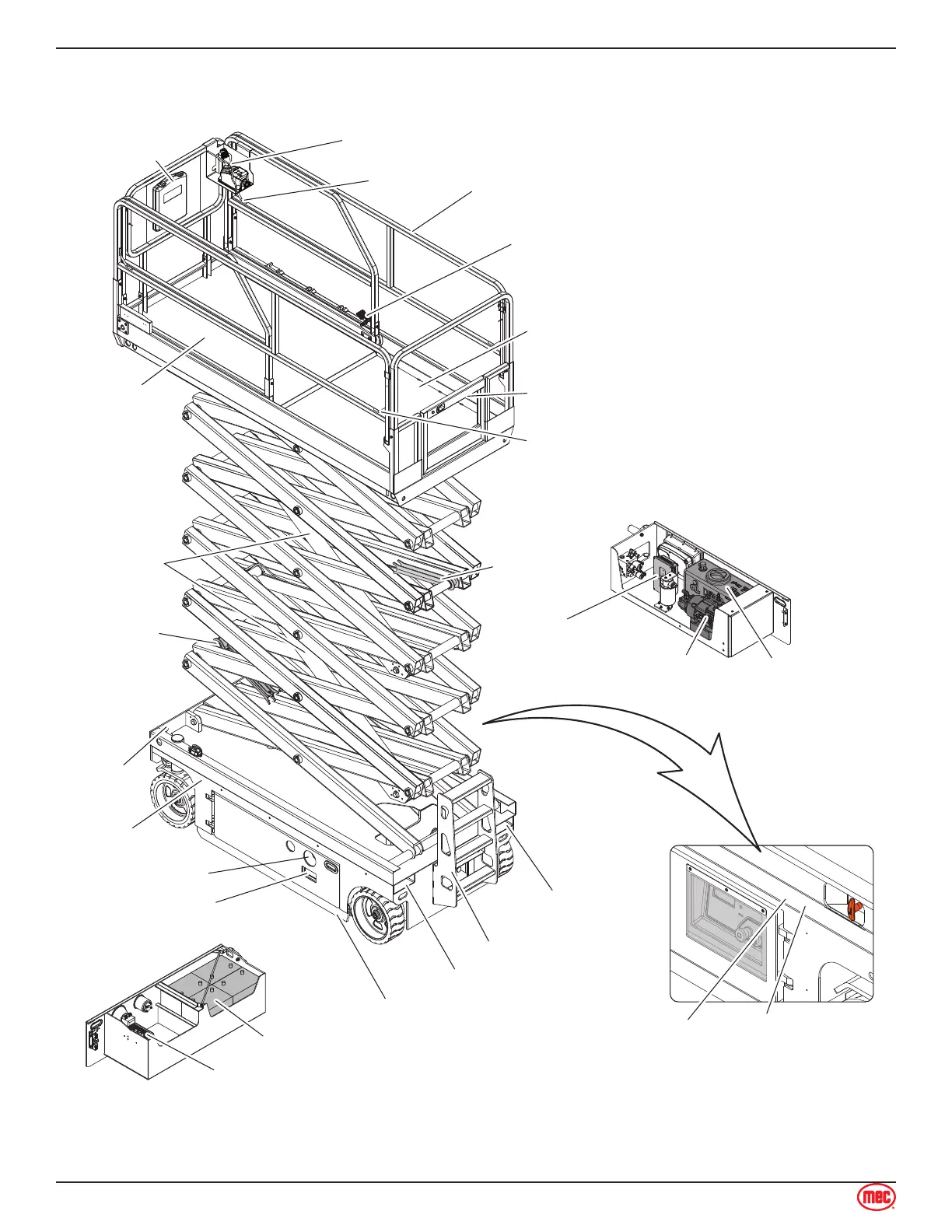

ART_5008C
Platform
Controls
Lanyard
Anchorage
Lanyard
Anchorage
Deck Extension
Release
Typical Machine
Lift Cylinders
Chassis
Tie-Down/
Lift Points
Entry Gate
Main Platform
Lower
Controls
Emergency
Lowering
Handle
Batteries
Motor
Controller
Hydraulic Pump
& Motor
Hydraulic
Tank
Entry Ladder
Forklift Pocket
Pothole Guard
Forklift Pocket
Battery Tray
Controls Tray
Maintenance
Lock
Maintenance
Lock
Guard
Rails
Manuals
Case
Deck
Extension
Battery
Charger
Battery
Charger
Main Power
Switch
