Mec 4046SE - Serial Plate

Page 43 SE
AC
Slab Series - Operator’s Manual
November 2022Section 10 - Warning and Instructional Decals
Serial Plate

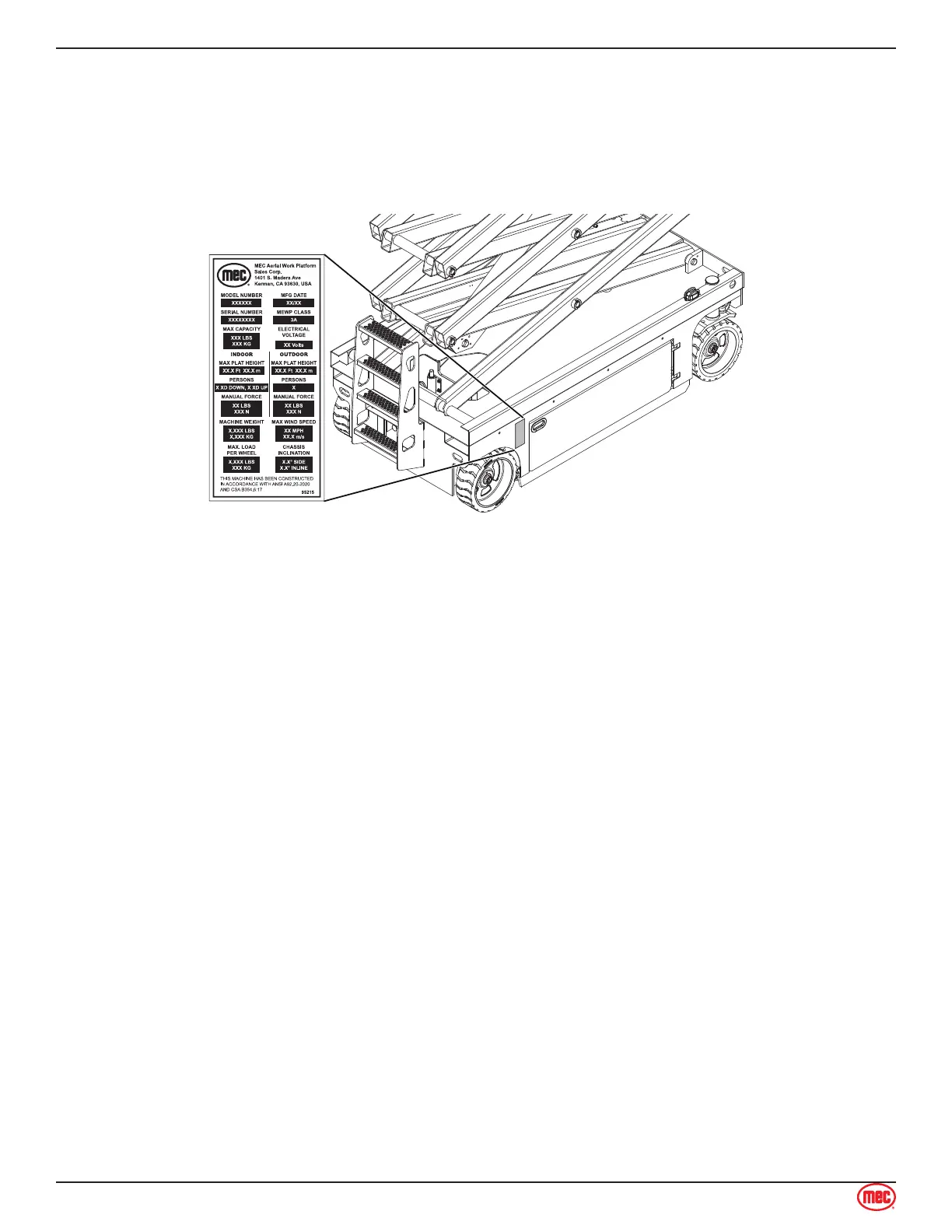

Serial Plate Location
The serial plate is attached to the machine at the time of manufacture. Important information about
the machine is recorded on the serial plate.
ART_5028
Serial Plate Description
MODEL NUMBER:Identies the machine.
MFG DATE:Month / Year of manufacture.
SERIAL NUMBER:Identies a machine with reference to its original owner. Refer to the number when requesting
information or ordering parts.
MEWP CLASS MEWP=Mobile Elevating Work Platform
MAX. CAPACITY:The maximum safe load (material, persons + equipment) which can be correctly placed on the
platform at any elevation.
ELECTRICAL VOLTAGE:The voltage at which this machine operates.
MAX. PLATFORM HEIGHT (INDOOR):The indoors maximum attainable height measured from level ground surface
to platform oor.
PERSONS (INDOOR):The maximum number of occupants indoors.
MANUAL FORCE (INDOOR):Amount of manual force need to move machine indoors.
MAX. PLATFORM HEIGHT (OUTDOOR):The outdoors maximum attainable height measured from level ground
surface to platform oor.
PERSONS (OUTDOOR):The maximum number of occupants outdoors.
MANUAL FORCE (OUTDOOR):Amount of manual force need to move machine indoors.
MACHINE WEIGHT:The weight of the machine with no options.
MAX WIND SPEED:The maximum wind speed for safe working conditions.
MAX. LOAD PER WHEEL: The maximum safe weight applied to each wheel. Calculated with all available options
installed. Fw = 30% (Wm + Wc + Wopt)
CHASSIS INCLINATION: The maximum amount of tilt for safe working conditions.
