Page 14 SE
AC
Slab Series - Operator’s Manual
November 2022Section 5 - Controls & Components

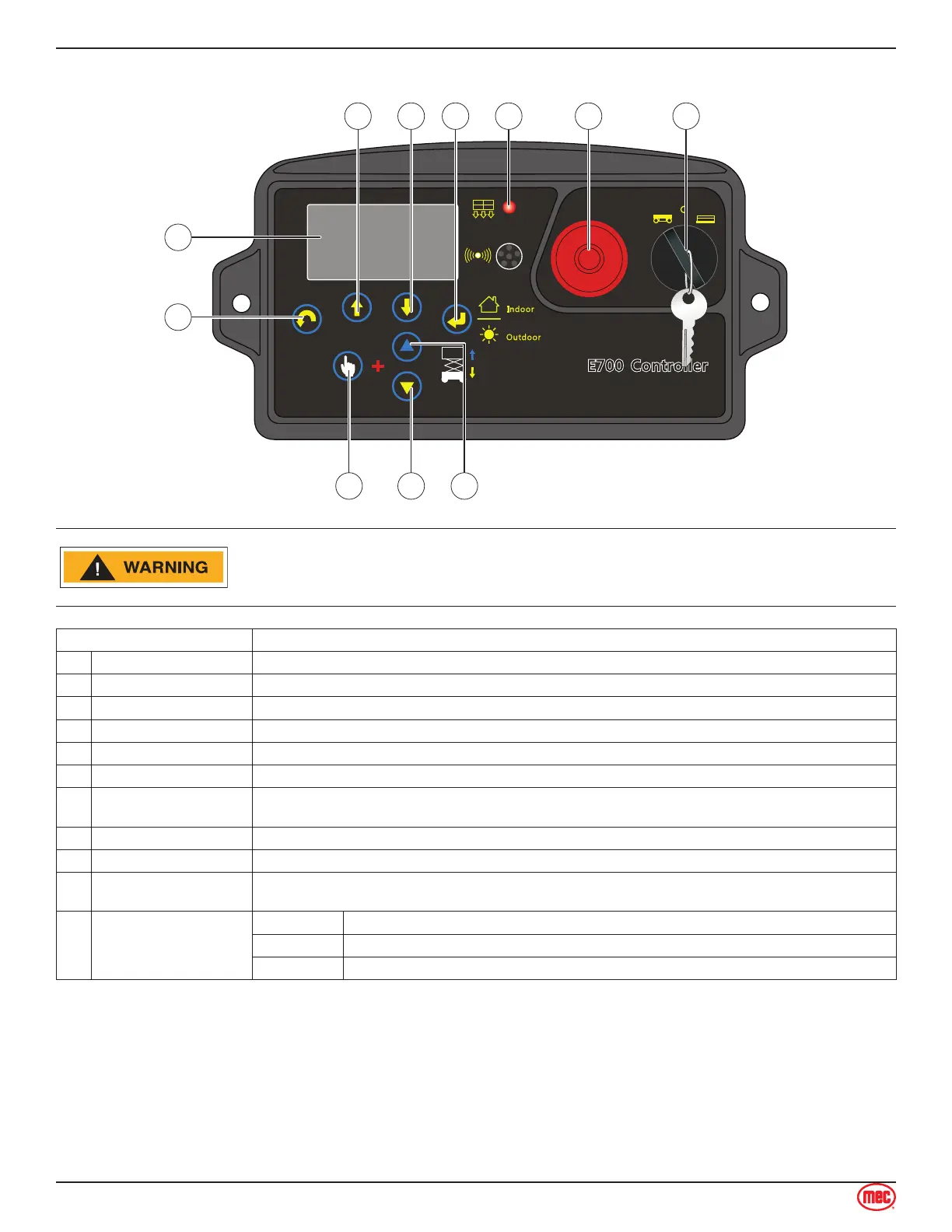

Lower Controls
ART_5804
1
2
3 4 5 6
7 8 9
10 11
ALWAYS be aware of the machine’s position and of your surroundings
before activating any control function.
Control Description
1 Menu Escape Button Press this button to exit the Menu screen.
2 LED Readout Screen Diagnostic readout and battery charge indicator.
3 Menu Up Button Press this button to go up the Menu items.
4 Menu Down Button Press this button to go down the Menu items.
5 Menu Enter Button Press this button to enter the Menu screen
6 Overload Indicator Light Light on indicates when platform is overloaded.
7 Function Enable Button
Press and hold this button along with either the Platform Down Button (#8) or the Platform Up Button
(#9) to activate selected function.
8 Platform Down Button Press and hold the Function Enable Button (#7) and this button then the platform with lower.
9 Platform Up Button Press and hold the Function Enable Button (#7) and this button then the platform with rise.
10 Emergency Stop Switch
Press the EMERGENCY STOP switch at any time to stop all machine functions.
Pull button out to the “ON” position to operate the machine.
11 Key Switch
PLATFORM Turn the key switch to the platform position and the platform controls will be selected.
OFF Turn the key switch to the “OFF” position and the machine will be o.
BASE Turn the key switch to the base position and the ground controls will be selected.
Selecting Indoor/Outdoor Mode:
To select the Indoor/Outdoor Mode press and hold the Platform Down Button (#8), the Platform Up
Button (#9) and the Menu Enter Button (#5) for a few seconds to switch to Indoor or Outdoor.
• INDOOR
• Select to allow unrestricted height when not exposed to wind.
• OUTDOOR
• Select to limit the maximum height when exposed to wind.
