November 2022Section 7 - Operating Instructions & Functions Test
Sheet Materials Rack - 1930SE, 2632SE & 3346SE Models Only
SHEET MATERIAL WEIGHT IS PART OF THE TOTAL PLATFORM
CAPACITY. THIS MAY LIMIT CAPACITY TO ONE OCCUPANT.
DO NOT exceed the Sheet Materials Rack capacity listed in the table
below.
DO NOT allow any personnel to stand below the machine when the Sheet
Materials is in use.
Fasten the material securely with straps or optional material clamps until
use.

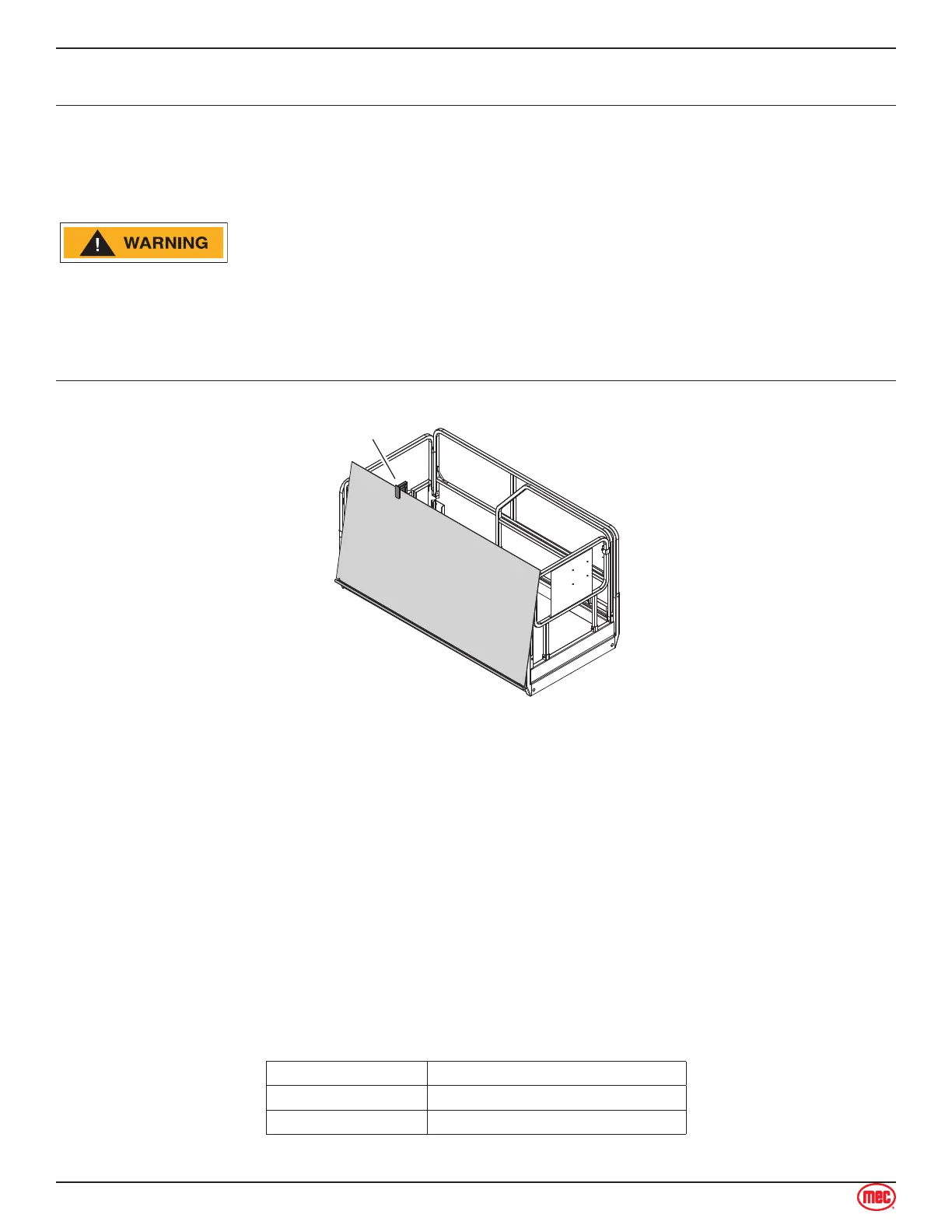

ART_5180
Material
Clamp
1930SE, 2632SE and 3346SE models are equipped with a Sheet Materials Rack. Sheet material may
be secured outside the platform to this rack up to the capacities listed in the table below. Maximum
size of material on the Sheet Material Rack is 4’ x 8’ (1.2m x 2.4 m) for outdoor wind loading. All
material should be centered on the Sheet Materials Rack.
Use caution when driving the machine or elevating the platform when the Sheet Material Rack is
loaded.
Secure the sheets to the platform with the provided material clamp until ready to use.
Remove the J-shaped arm from the Material Clamp when loading material on the Sheet Material
Rack.
When all material is loaded, replace the J-shaped arm as shown and secure in place with the snap
pin.
Model Sheet Material Rack Capacity
1930SE / 2632SE 110 LB / 50 KG
3346SE 250 LB / 113 KG
