Page 48 SE
AC
Slab Series - Operator’s Manual
November 2022Section 12 - Transport and Lifting Instructions

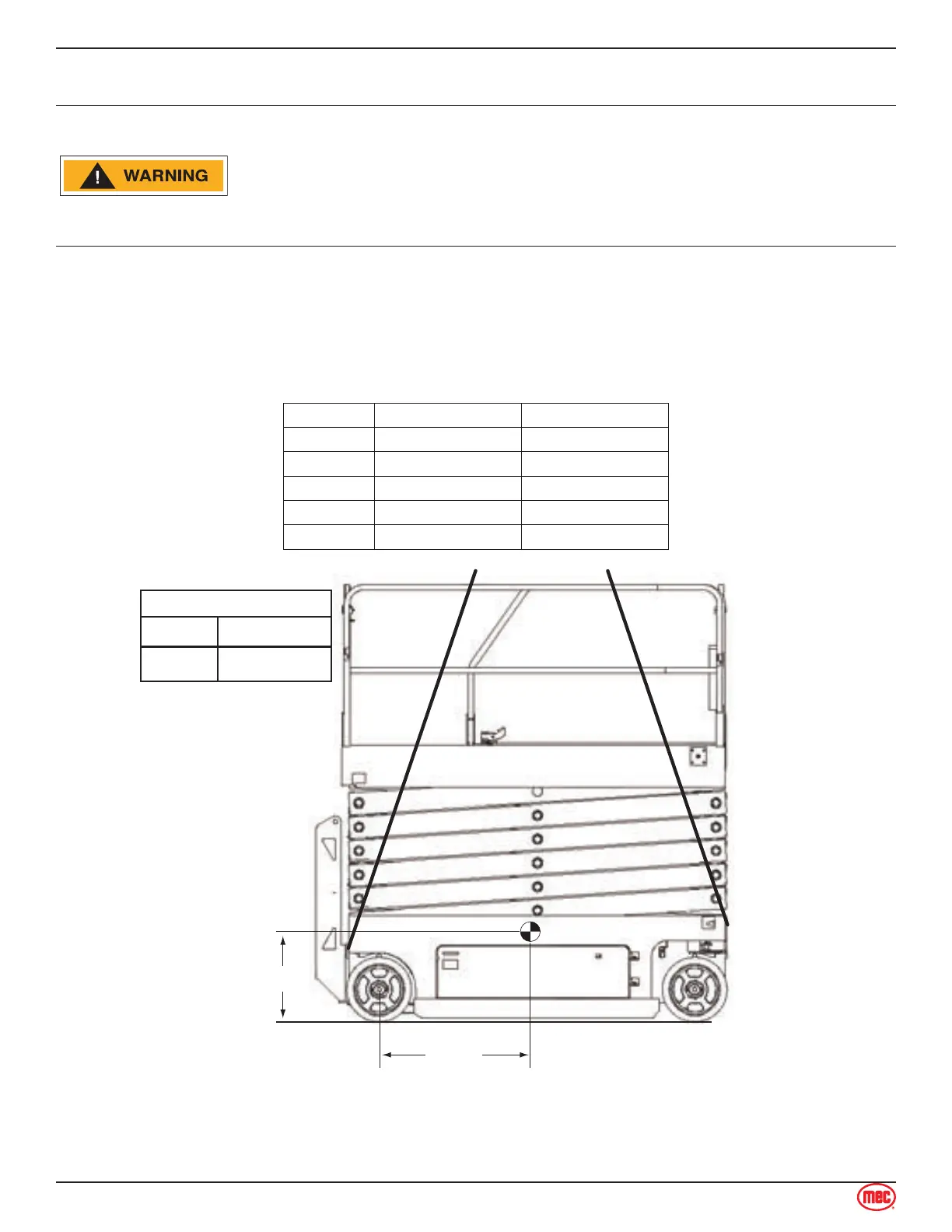

Lifting Instructions
Only qualied riggers should rig and lift the machine.
Ensure that the crane, loading surfaces, spreader bars, cables, chains
and straps are of sucient capacity to withstand the machine weight.
See the serial plate for the machine weight.
• Fully lower the platform. Be sure the deck extension is retracted and the controls and component
trays are closed and secure. Remove all loose items from the machine.
• Determine the center of gravity of the machine.
• Attach rigging to the designated lift points only.
• Adjust the rigging to prevent damage to the machine and to keep the machine level.
Model X Axis Y Axis
1930SE 25.5 in / 4.8 cm 23.3 in / 59.1 cm
2632SE 31.7 in / 80.6 cm 22.7 in / 57.6 cm
3346SE 32.7 in / 83 cm 26.9 in / 68.2 cm
4046SE 32.7 in / 83 cm 28.4 in / 72.1 cm
4555SE 38.6 in / 98 cm 27.8 in / 70.5 cm
Y Axis
Chassis
Lifting
Points (2)
Chassis
Lifting
X Axis
Y Axis
38.6” (98 cm)
27.8” (70.5 cm)
Center of Gravity
ART_5032
