Page 22 65-J Diesel - Operator’s Manual
September 2022Section 7 - Operating Instructions & Pre-Operation Function Tests

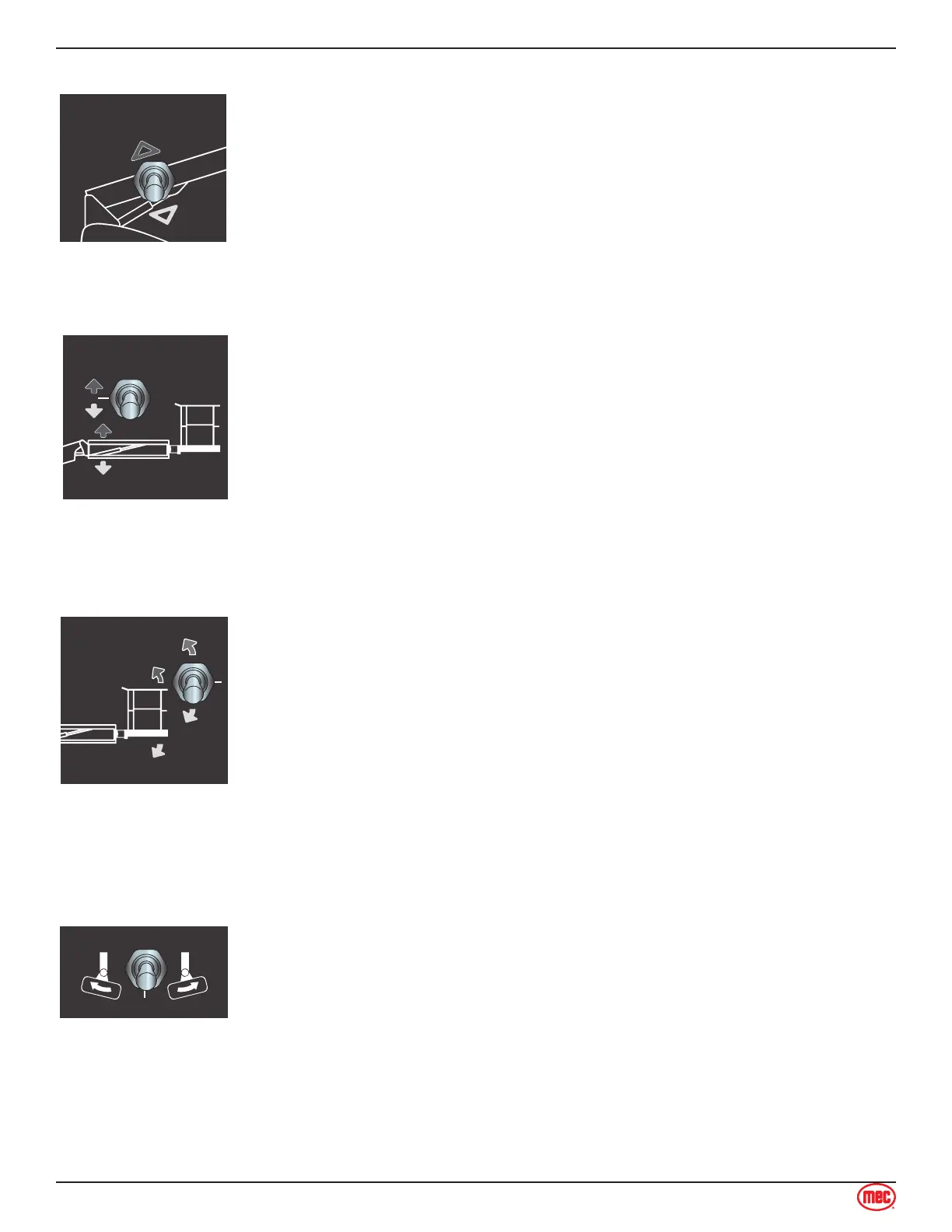

Boom Lift/Lower
Press and hold the Boom Lift/Lower switch on the base control panel to lift or
lower the boom.
Test Operation
• Press and hold the Function Enable switch.
• Raise the boom until it stops.
• Lower the boom until it stops. Boom should rest on the turntable pads.
• Releasing the switch will stop Boom Lift/Lower function.
• Pressing the Emergency Stop Switch will stop boom lift/lower function.
Jib Lift/Lower
Press and hold the Jib Lift/Lower switch on the base control panel to lift or
lower the jib.
Test Operation
• Press and hold the Function Enable switch.
• Raise the jib until it stops.
• Lower the jib until it stops.
• Releasing the switch will stop Jib Lift/Lower function.
• Pressing the Emergency Stop Switch will stop jib lift/lower function.
Platform Level
The platform will automatically level as the boom is lifted or lowered. The
Platform Level function allows manual level adjustment of the platform. Manual
leveling may be used to adjust the platform within 5° of level.
• Press and hold the Platform Level switch on the base control panel to
manually adjust the level of the platform.
Test Operation
• Press and hold the Function Enable switch.
• Push the switch up and down.
• The platform level should change accordingly. Releasing the switch will
stop platform level function.
• Pressing the Emergency Stop Switch will stop platform level function.
Platform Rotate
Press and hold the Platform Rotate switch on the base control panel to rotate
the platform.
Test Operation
• Press and hold the Function Enable switch.
• Push the switch left and right. The platform should rotate accordingly.
• Releasing the switch will stop platform rotate function.
• Pressing the Emergency Stop Switch will stop platform rotate function.
