Overload Indicator Light
Light ON indicates too much weight on the platform.
An audible alarm will sound and all machine function will stop. Remove weight
from the platform to restore function and continue.
ART_6097
ILLUSTRATION No.

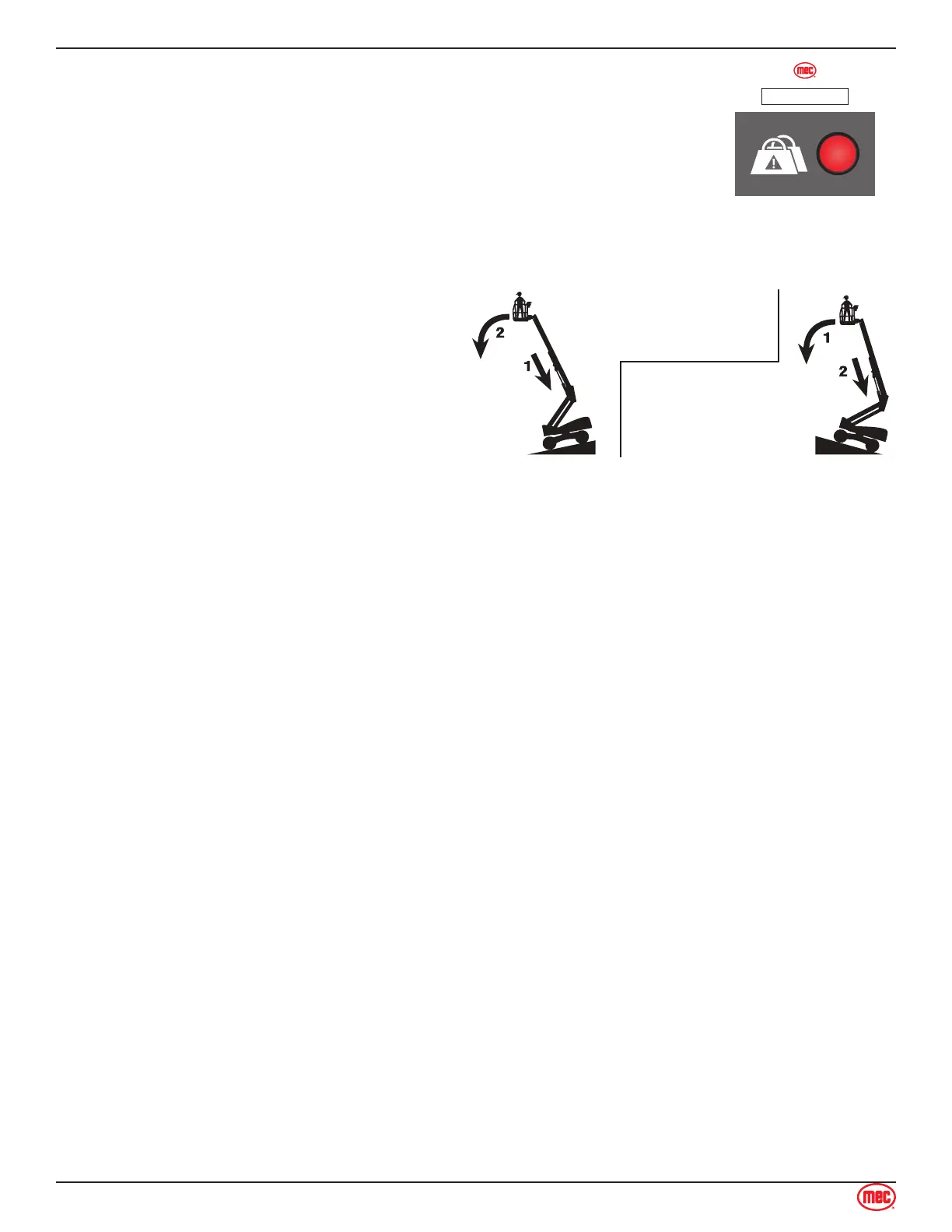

Tilt Alarm
Light ON and alarm sounding indicates an
unsafe condition.
• STOP ALL MOVEMENT. The machine is
not level.
• Look at the diagram to determine the
condition of the counterweight as it relates
to the slope, then use extreme caution
while following the instructions. DO NOT
rotate the turntable while lowering.
ART_4753b
COUNTERWEIGHT
DOWNHILL:
1-- Lower Boom
2-- Retract Boom
COUNTERWEIGHT UPHILL:
1-- Retract Boom
2-- Lower Boom
• If the Tilt Alarm sounds while the counterweight is uphill, rst retract the boom, then lower the
boom.
• If the Tilt Alarm sounds while the counterweight is downhill, rst lower the boom, then retract the
boom.
• Move the machine to a rm, level surface before continuing operation.
