J - Operator’s Manual - 95803
January 2024Section 5 - Controls & Components

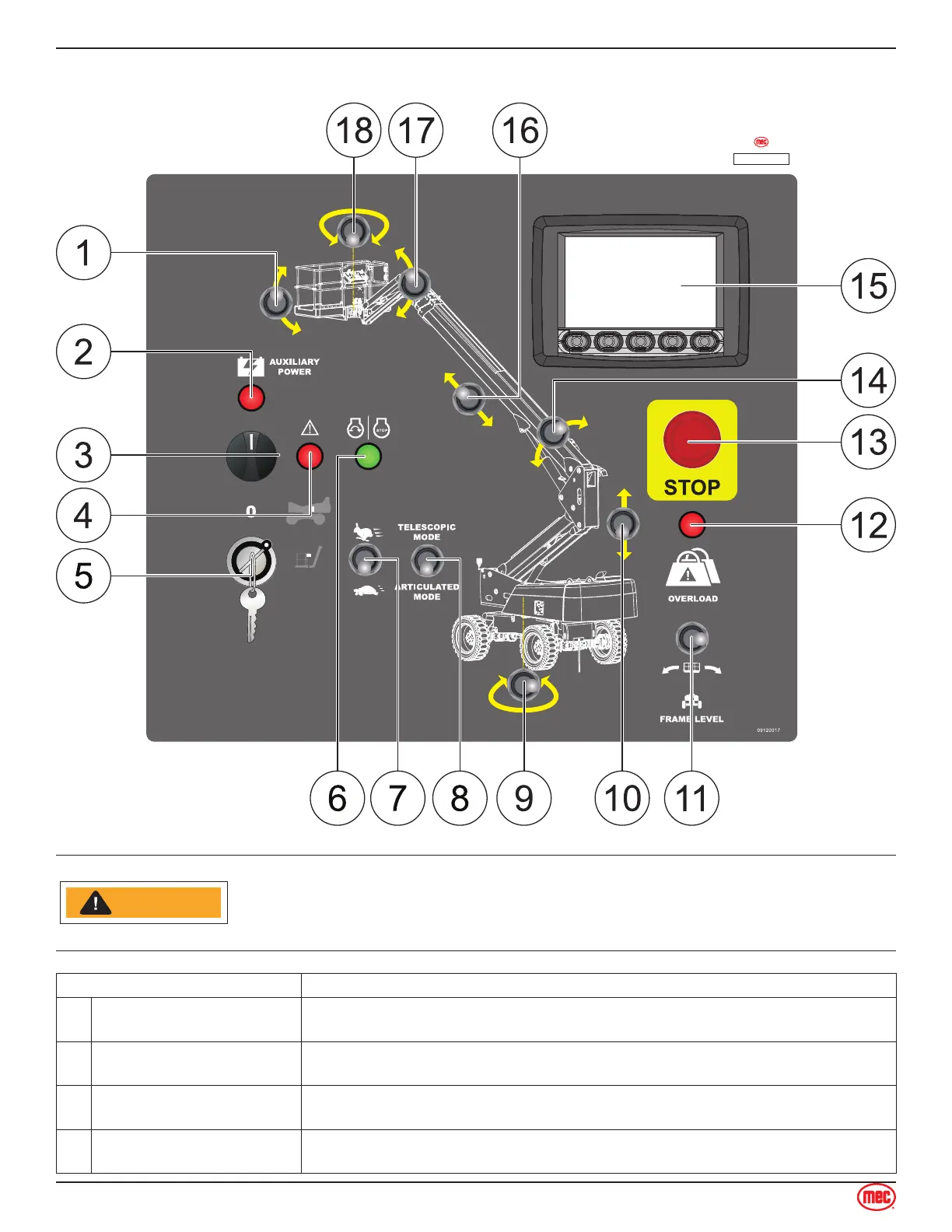

Base Controls
ART_5790
ILLUSTRATION No.
NOTICECAUTION
CAUTIONWARNING
ART_6091
ALWAYS check over, under and around the machine for personnel,
structures and obstructions before activating any control function and
continue to watch for hazards while operating the machine.
Control Description
1 Platform Level Switch
Move this switch up to manually level the platform upward
Move this switch down to manually level the platform downward.
2 Auxiliary Power Button
If normal power fails, press and hold while using Boom Retract and Boom Lower
functions.
3 Function Enable Switch
Turn this switch right and hold to enable boom, turntable and platform operations
from the base controls.
4
Emergency Platform
Bypass
This switch bypasses the e-stop circuit and allows the machine to power on
without completing the emergency power loop.
