Upper Control Box
Decals
Decals

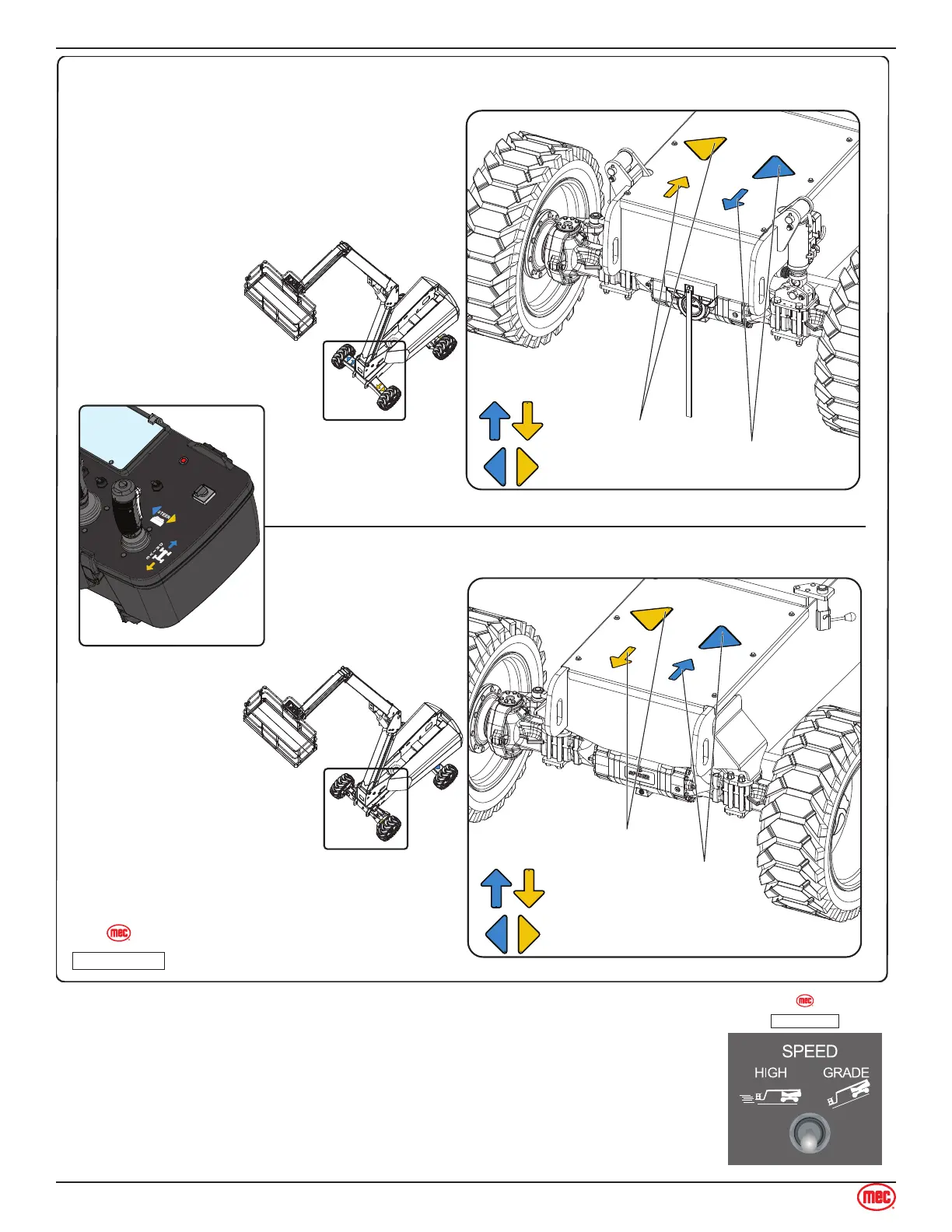

Drive & Steer Directional Arrows
Platform over non-steering wheels
Platform over steering wheels
When the platform is over the steering wheels,
the machine moves in the opposite direction
of the Control Lever.
Pay careful attention to the
Chassis Drive & Steer arrows
for machine direction.
Decals
Decals
Speed/Torque Switch
Move this switch to the left for high speed drive. Push this switch to the right
for high torque drive.
