Serial Plate
The serial plate is attached to the machine at the time of manufacture. Important information about
the machine is recorded on the serial plate. The Serial Plate is located on the side of the chassis
below the Base Controls.

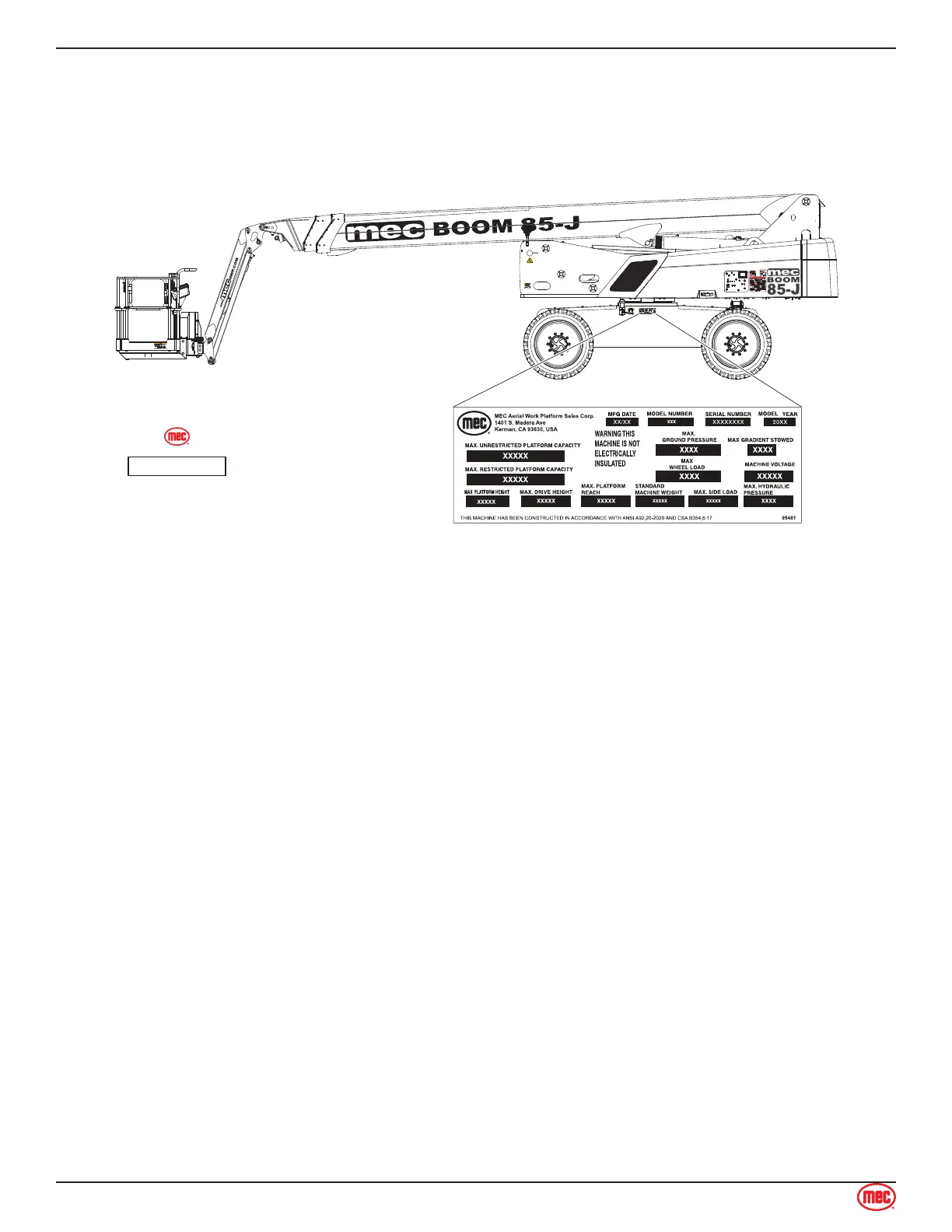

ART_4746
ILLUSTRATION No.
Serial Plate Description
MFG DATE: Month / Year of manufacture.
MODEL NUMBER: Identies the machine.
SERIAL NUMBER: Identies a machine with reference to its original owner. Refer to the number when requesting
information or ordering parts.
MODEL YEAR: Identies the model year of the machine.
MAX. PLATFORM UNRESTRICTED
CAPACITY:
The maximum safe load (material, persons + equipment) which can be
correctly placed on the platform within any range of motion.
MAX. PLATFORM RESTRICTED
CAPACITY:
On optionally equipped machines, the maximum safe load (material, persons +
equipment) which can be correctly placed on the platform when used within a
restricted range of motion.
MAX. HYDRAULIC SYSTEM PRESSURE: The maximum pressure generated by the machine’s hydraulic system.
MAX. WHEEL LOAD: The maximum safe weight applied to each wheel. Calculated with all available options
installed. Fw = 30% (Wm + Wc + Wopt)
MACHINE VOLTAGE: The electrical voltage at which the machine operates.
MAX. PLATFORM HEIGHT: The maximum attainable height measured from level ground surface to platform oor.
MAX. DRIVE HEIGHT: The maximum safe platform height at which the machine can be driven.
MAX. PLATFORM REACH: The maximum horizontal outreach of the extended boom.
STANDARD MACHINE WEIGHT: The weight of the machine with no options.
MAX. GROUND PRESSURE: The amount of pressure exerted on the surface at each wheel. Calculated with all
available options installed. Pmax = 30% (Wm + Wc + Wopt) / Contact Area
MAX. SIDE LOAD: The maximum safe force that the occupant can exert laterally on an object outside the platform.
