Mecmesin MultiTest-x Series - Page 62

Appendix 6: MultiTest-x Menu Options Page 10

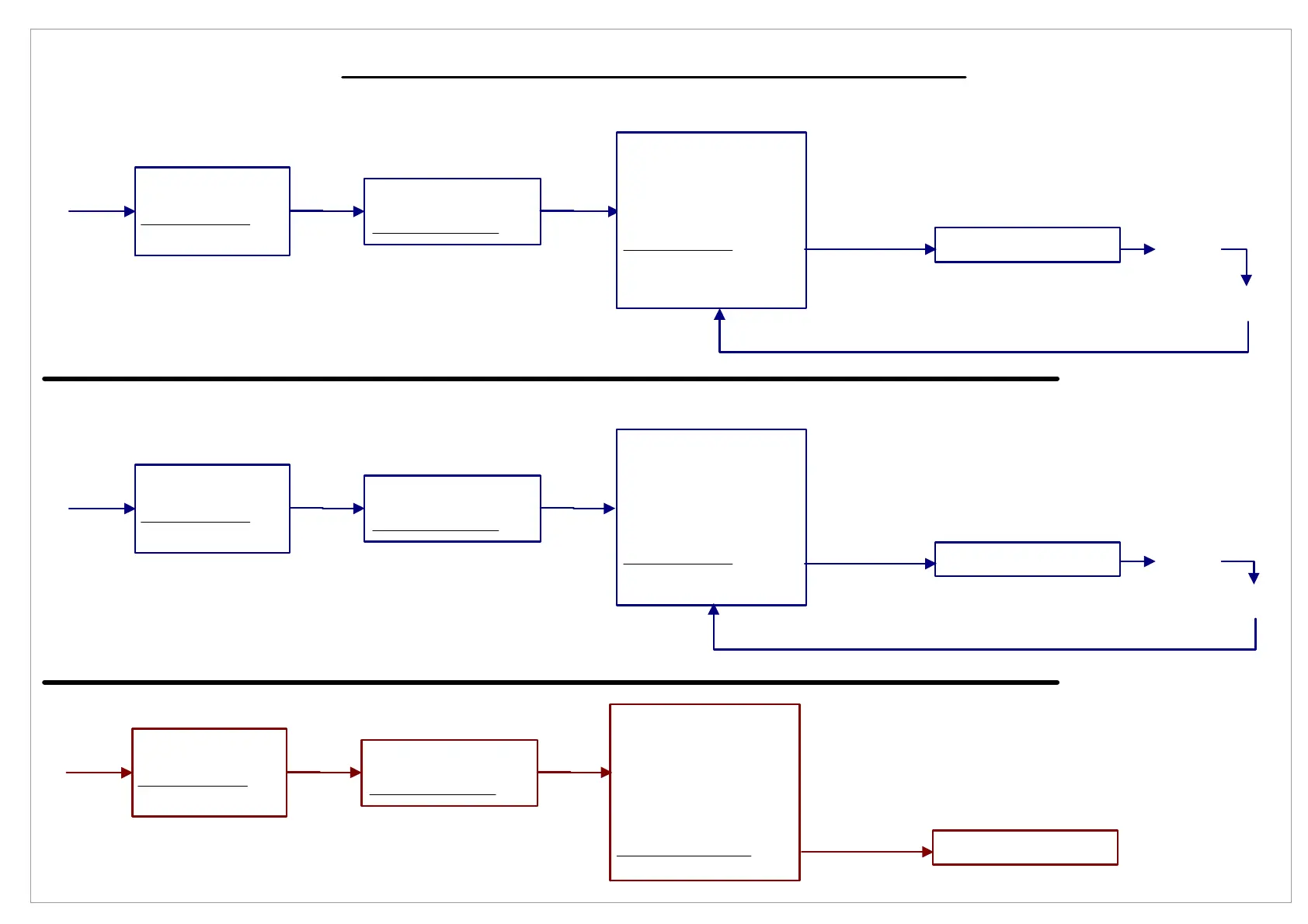

[1], [3], [3], [7] Touch Load
1) Procedure 1
2) Print Menu
3) Setup Menu
4) Utilities Menu
Press
[3]
1) Acquisition Menu
2) Analysis Menu
3) Control Menu
Press
[3]
1) Define Tst Profile
2) Dir-TENSION
3) Post Test-STOP
4) Jog Rate v
5) Home Location
6) Home Rate
7) Touch Load
8) Touch Rate
9) Control Gains
Press
[1/Menu]
Touch( N)
----
Type in
the touch-on load
in units indicated
Press
[Start/ENT]
Press [Jog Dn]
and
Press [7]
[1], [3], [3], [9] Control Gains
1) Define Tst Profile
2) Dir-TENSION
3) Post Test-STOP
4) Jog Rate v
5) Home Location
6) Home Rate
7) Touch Load
8) Touch Rate
9) Control Gains
Press
[1/Menu]
[1], [3], [3], [8] Touch Rate
1) Procedure 1
2) Print Menu
3) Setup Menu
4) Utilities Menu
Press
[3]
1) Acquisition Menu
2) Analysis Menu
3) Control Menu
Press
[3]
1) Define Tst Profile
2) Dir-TENSION
3) Post Test-STOP
4) Jog Rate v
5) Home Location
6) Home Rate
7) Touch Load
8) Touch Rate
9) Control Gains
Press
[1/Menu]
Touch(mm/min)
----
Type in
the touch-on speed
in units indicated
Press
[Start/ENT]
Press [Jog Dn]
and
Press [8]
1) Procedure 1
2) Print Menu
3) Setup Menu
4) Utilities Menu
Press
[3]
1) Acquisition Menu
2) Analysis Menu
3) Control Menu
Press
[3]
Password:
Press [Jog Dn]
and
Press [9]
Special Access
Only
