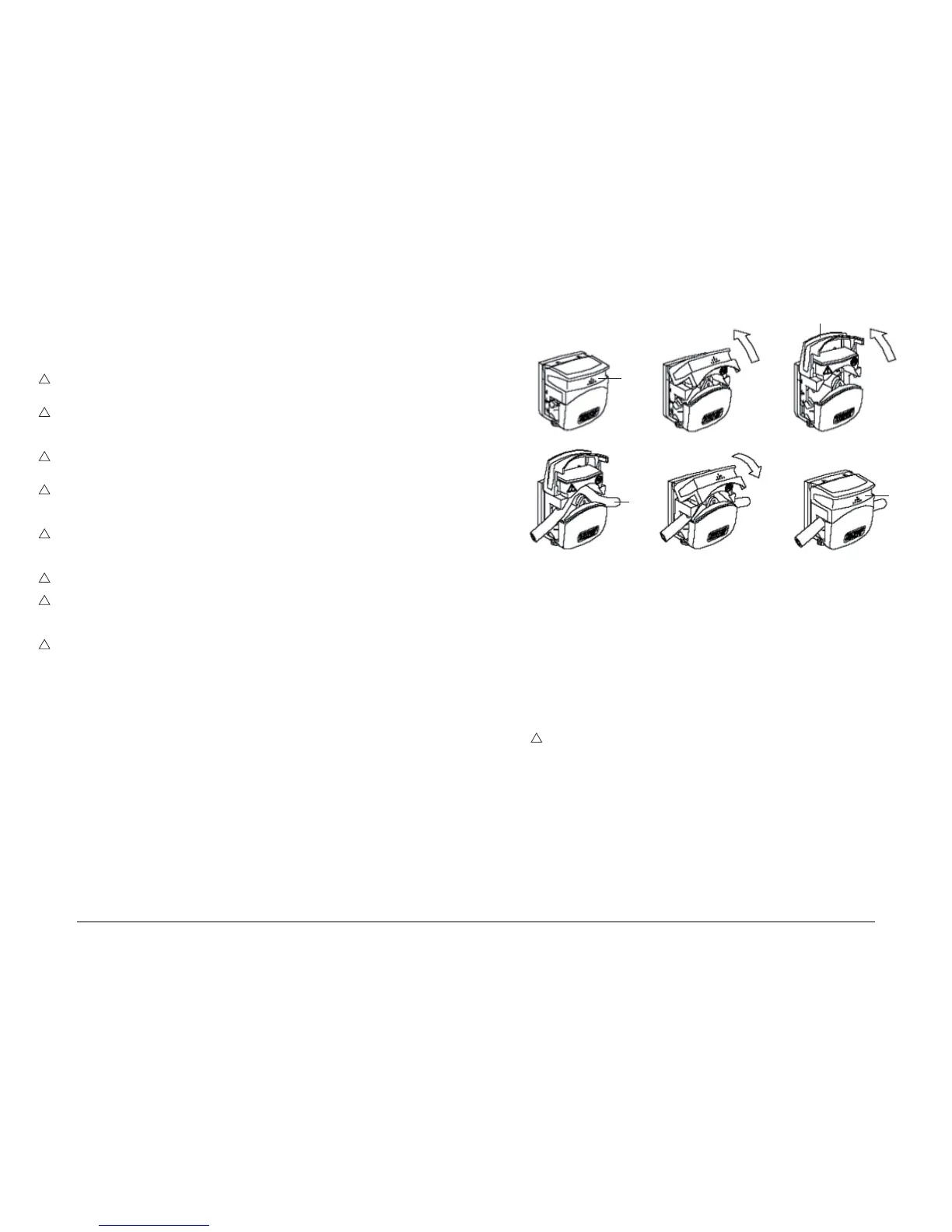

Fig. 4
04.0 Installation
04.1 Safety requirements during Installation
�
DANGER: The wiring system of the premises where the apparatus is installed and used must
comply with the applicable standards and the relevant electrical safety requirements.
�
DANGER: Do not install the apparatus in places where there is a risk of explosion. The ap-
paratus may not be used in areas where there are inammable atmospheres (anaesthetic mixtures,
oxygen, etc.).
�
DANGER: Install the apparatus in a place where it will be protected from blows and from ac-
cidental sprays of water or other liquids.
�
DANGER: Do not install the device on or in the vicinity of sources of heat. Install it in such a
way that there is an adequate circulation of air around it. Leave sufcient free space around it, in
particular with reference to the fan on the rear (Fig.5 - Ref.G).
�
DANGER: Personal injury.
The footswitch of the Piezosurgery must not be activated when the door of the peristaltic pump is
open (Fig.4 - Ref.B). Moving parts could cause personal injury of the operator.
�
WARNING: Do not expose the apparatus to direct sunlight or to sources of UV light.
�
WARNING: The apparatus is transportable, however it must be handled with care when it is
moved. Position the pedal on the oor in such a way that it can only be activated intentionally by
the operator.
�
WARNING: Before connecting the cord to the device, make sure that the electrical contacts are
perfectly dry. If necessary, dry them with the air syringe.
04.2 Initial installation
To ensure perfect operation of the equipment, it is installed by technical personnel authorised by
Mectron. The equipment will be installed in a suitable and handy place for it to be used, and is
enabled by entering an activating password.
The activating password is given to the technician responsible for installation and is not indicated
inside the package containing the device. The purpose of this is to ensure immediate traceability of
the device, as required according to current legislation.
The technician must:
- Install the device in a suitable place;
- Explain the main aspects of correct installation to the user;
- Fill in the installation form, including the purchaser’s data;
- Send the installation form to Mectron to ensure traceability and activation of the warranty;
- Enter the activating password to enable the device.
A
C
D
E
B
04.3 Connecting the Accessories
The accessories listed below have to be connected to the Piezosurgery device:
1 Insert the silicone tube into the peristaltic pump, proceeding as follows:
- Open the door (Fig.4 - Ref.A) as far as it will go (Fig.4 - Ref.B).
- Position the tube in the impeller (Fig.4 - Ref.C).
- Close the door completely (Fig.4 - Ref.E).
�
DANGER: Personal injury.
The footswitch of the Piezosurgery must not be activated when the door of the peristaltic pump
is open (Fig.4 - Ref.B). Moving parts could cause personal injury of the operator
2 Insert the rod for supporting the bag into the hole provided for it (Fig.5 - Ref.E).
3 Insert the handpiece support into the two holes provided for it (Fig.5 - Ref.C).
4 Connect the footswitch to the casing of the device by inserting the plug into the footswitch
socket (Fig.5 - Ref.H).
5 Plug the power cable into the connector on the casing of the device (Fig.5 - Ref.I) and then into
the power outlet.
6 Connect the Piezosurgery cord to the cord connector on the device (Fig.5 - Ref.D).
7 Insert the tube of the Piezosurgery into the pump tting (Fig.5 - Ref.N). Insert the pump tting
into the tube of the peristaltic pump (Fig.5 - Ref.M).
8 Connect end of the tube of the peristaltic pump (Fig.5 - Ref.L) to the ow-control system.
9 Connect the ow-control system to the bag containing the appropriate liquid for the treatment.
