05.3 Description of the display and functions
This point describes the three “screens” shown on the Piezosurgery display and their functions.
With the Piezosurgery device, two different power modes can be used. These are ROOT and
BONE. Press the arrow key (Fig.6 - Ref.D) to set the required power mode. The type of power that
has been chosen will be indicated between two pointers (Fig.7 - Ref.B).
Device in the ROOT mode Fig. 7 - In the ROOT mode, press the power-level key (Fig.6 - Ref.C)
to set the following functions:
- ENDO
- PERIO
To adjust the delivery rate of the pump, press the + and – keys (Fig.6 - Ref.B). In the ROOT mode,
the speed can be set to between nought and ve. The display will show the speed that has been
selected (Fig.7 - Ref.A).
Device in the BONE mode Fig. 8 - In the BONE mode, press the power-level key (Fig.6 - Ref.C)
to set the following functions:
- QUALITY 1
- QUALITY 2
- QUALITY 3
- SPECIAL
To adjust the delivery rate of the pump press the + and – keys (Fig.6 - Rif.B). In the BONE mode,
the speed can be set to between one and ve. The display will show the speed that has been
selected (Fig.8 - Ref.A).
A
D
C
B

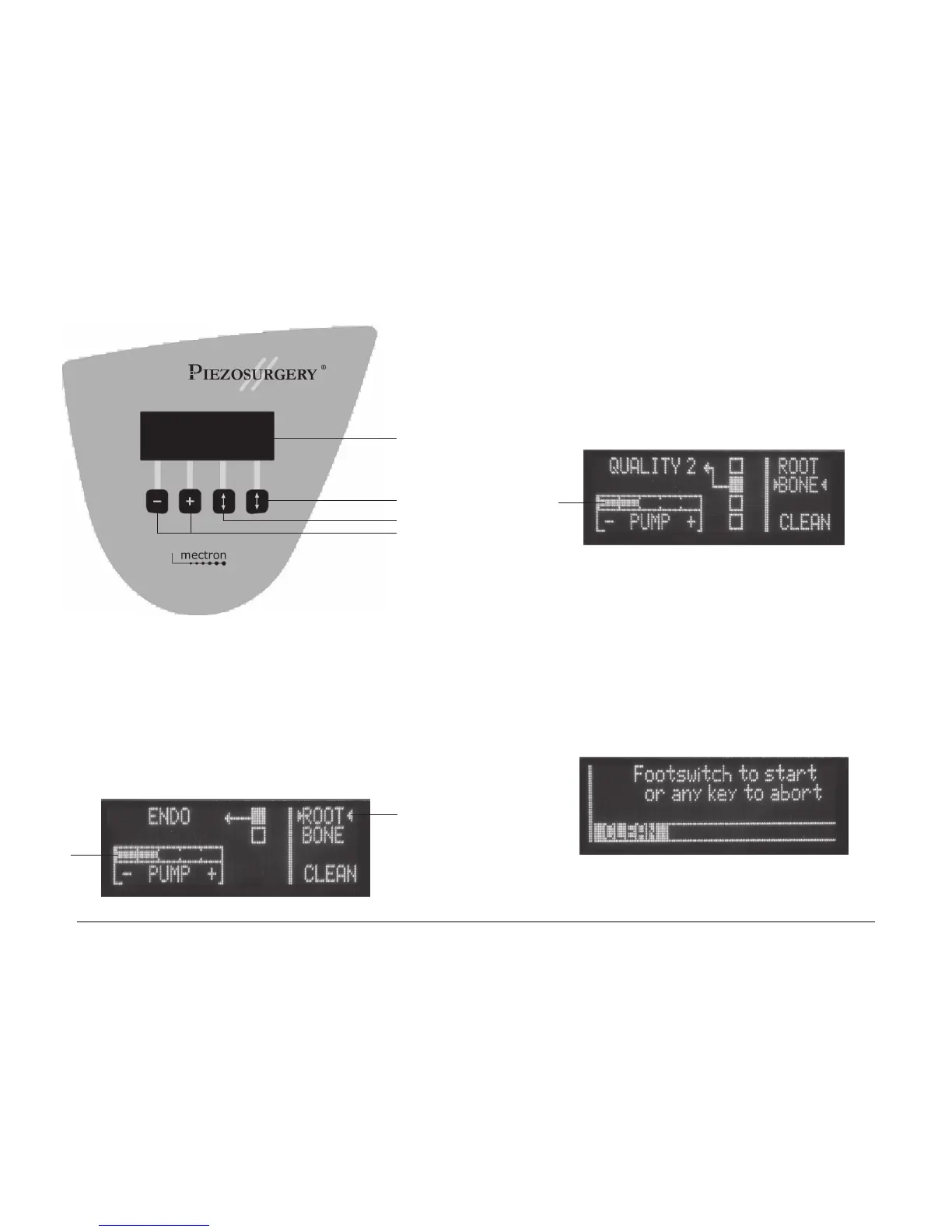

Fig. 6
Fig. 7
B
A
Fig. 8
A
Fig. 9
Device in the CLEAN mode: Fig. 9 - The device has a CLEAN function, which can be used to
carry out a cleaning cycle of the hydraulic circuit. This function must be carried out after using the
device, before cleaning, disinfecting and sterilising all the parts (See Section 06.0).
To activate the CLEAN function, press the power selection key and hold it down for 5 seconds
(Fig.6 - Ref. D). The following message will appear on the display “Footswitch to start or a key to
abort”. This tells the operator to press the footswitch to start the cleaning cycle or to press any of
the four keys below the display to exit from the CLEAN function. For further indications concerning
the CLEAN function, see point 06.1.
