Chapter 3 Installation
- 6 -
Notes:
①
Please connect the device to the mains power only when it is off.
②
The device shall not be positioned where it’s difficult to disconnect while
charging.
3. Charging Indicator
The charging indicator lights up in red during charging.
The charging indicator lights up in green when the battery is fully charged.
The charging indicator goes out when the charger is disconnected from the mains power.
3.2 Environmental Requirement
The device should be operated in a clean room, preferably one with an air-conditioner, in order to
work stably.
Don’t place the device near heat sources or cover it for a long time to avoid affecting heat
dissipation.
Do not use the device in locations with intense electric or magnetic fields (e.g. RF therapeutic
equipment). Avoid excessive shock and direct exposure to sunlight.
3.3 Connection
3.3.1 Charging
As shown in Fig. 3.1(b), connect the DC output of the charger to the charging socket of the device,
and connect the other end of the charger to the mains socket. The charging indicator is in red
during charging. When the charging indicator turns green, it indicates that the battery is fully
charged and the operator shall disconnect the charger from the mains socket.
The Main Unit will stop working while charging and the text of “Charging…” is shown on the
charging prompt interface to inform the user that the Main Unit is being charged; a white charging
progress bar under the text shows the progress of charging and the length of the charging
progress bar represents the battery power, as shown in Fig. 3.2a. Meanwhile, the charging
indicator is red.
When the device is fully charged, the length of the charging progress bar is equal to the width of
the screen, as shown in Fig. 3.2b. Meanwhile, the charging indicator is green.

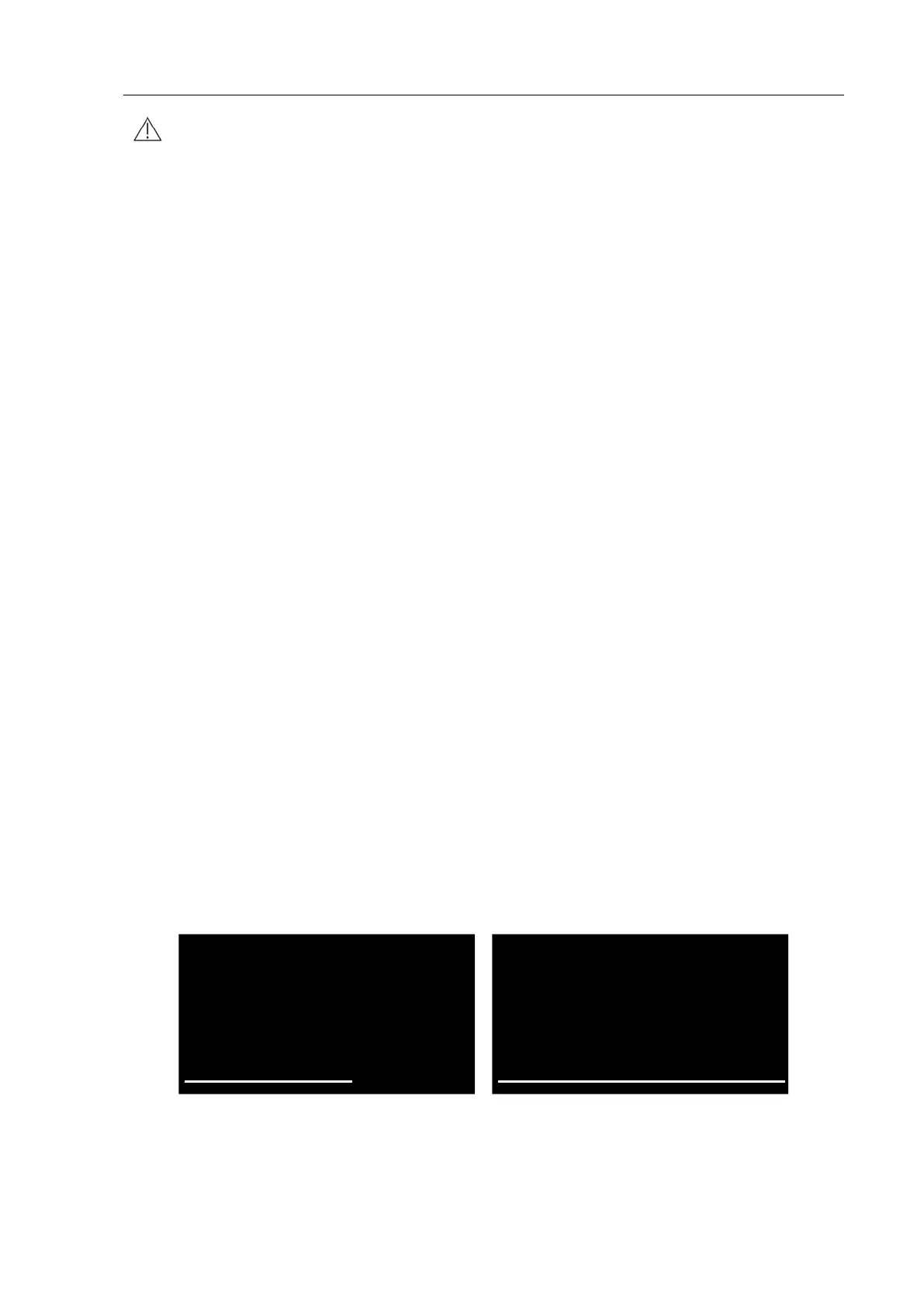

Fig. 3.2a Charging Prompt Interface Fig. 3.2b Fully Charged
