Genio 1200 Evaluation Kit User Guide
4 Camera Daughter Board
There are two camera boards incorporated with Genio 1200 EVK: D2 and D6 camera daughter board (DTB).
Genio 1200 EVK built in with three CAM connectors, and the configure is setting as below:
Table 4-1 Camera Configure (CAM Connector)
Camera Configure Front Camera Rear Camera
Configure 1 (Default) CAM 0 CAM 2
Configure 2 CAM 1 CAM 2
4.1 D2 Camera Daughter Board
The D2 camera DTB integrated with a SONY IMX214-0AQH5-C image sensor chip, which is a high-performance camera
image processor with rich features.

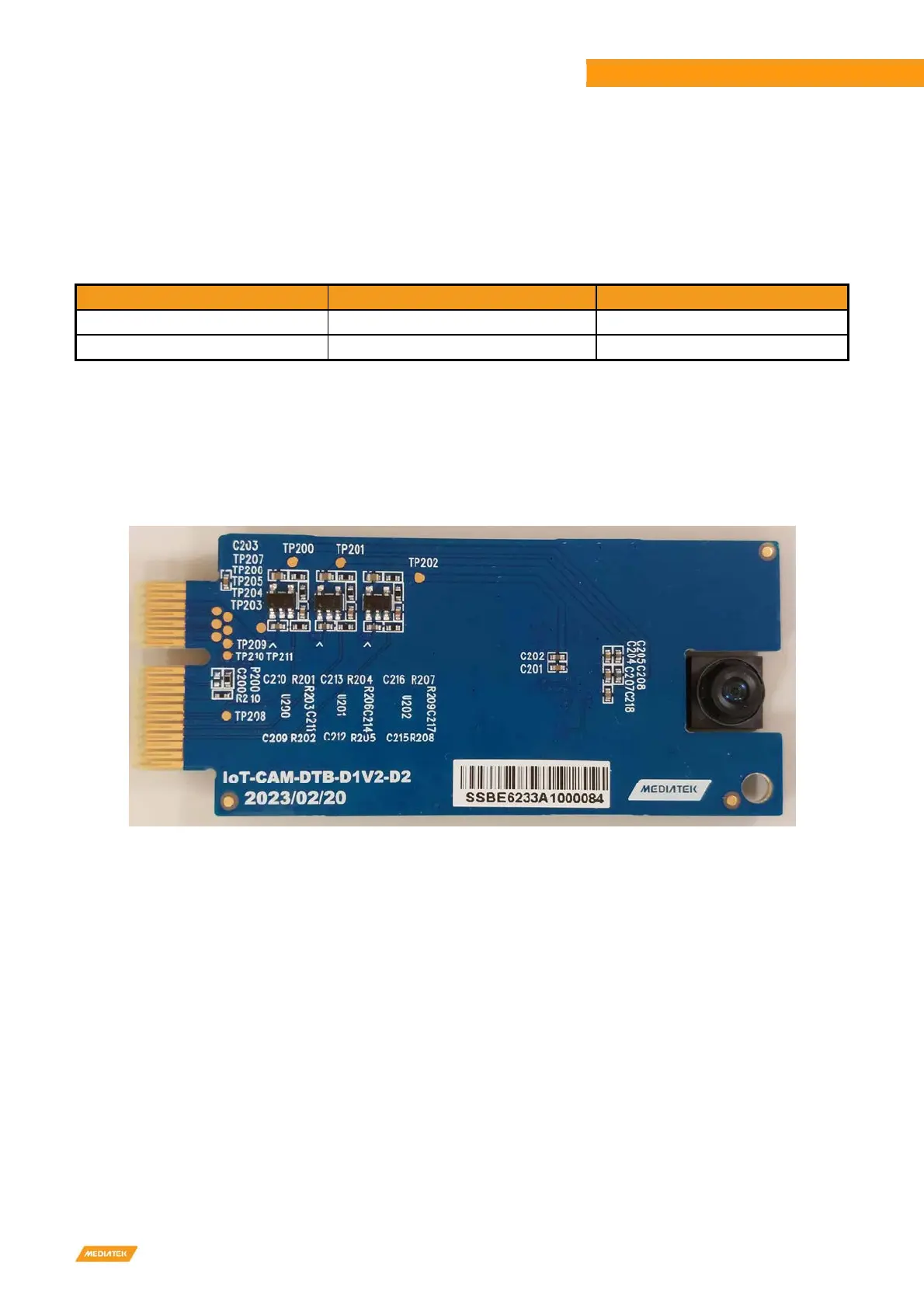

Figure 4-1 D2 Camera DTB
To Next Page
