Genio 1200 EVK
Genio 1200 Evaluation Kit User Guide

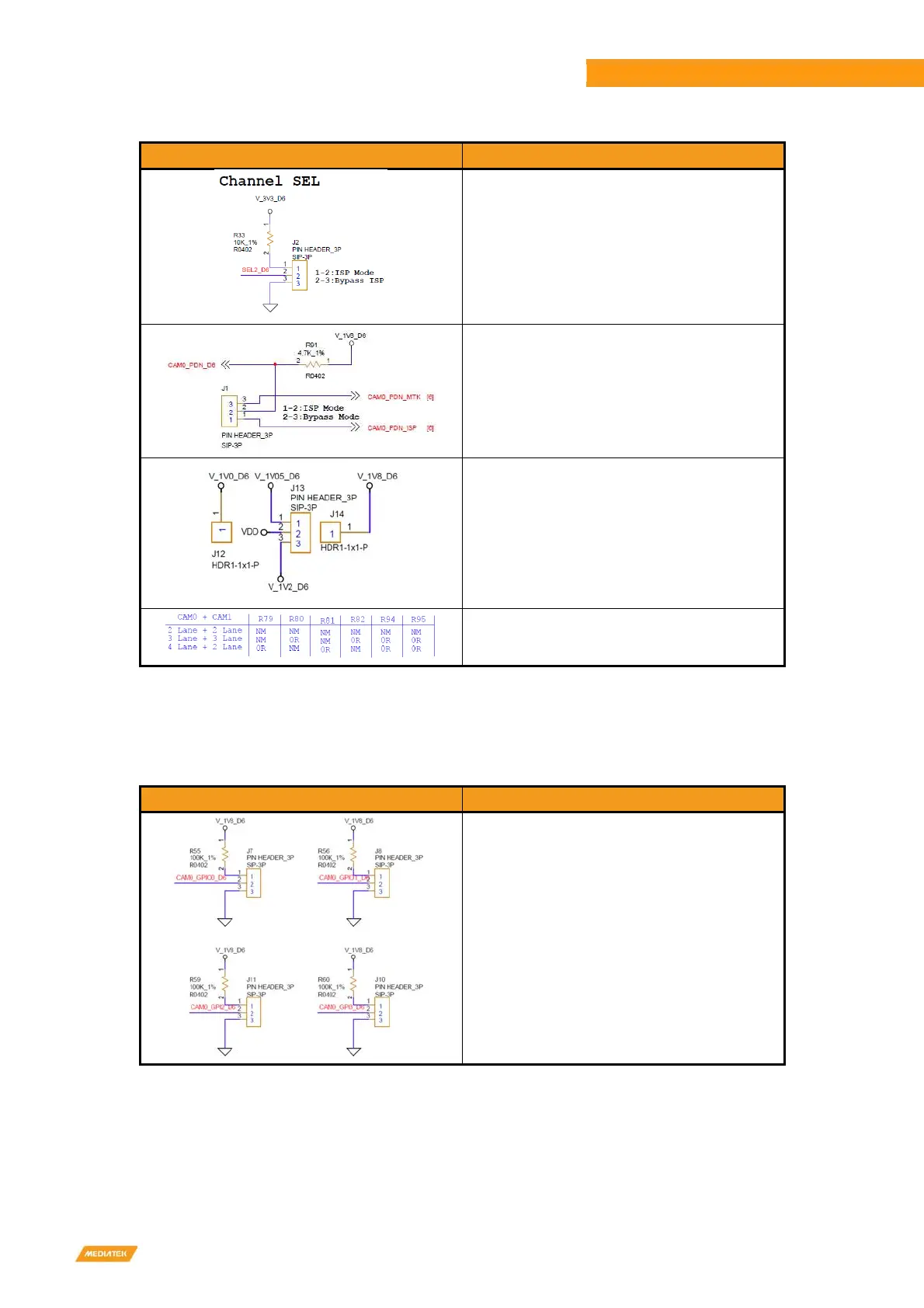

Schematic Description
(1) Jumper@ 1-2: ISP Mode
(2) Jumper@ 2-3: Bypass Mode
(1) Jumper@ 1-2: ISP Mode
(2) Jumper@ 2-3: Bypass Mode
(1) Jumper@ J13.1-J13.2: VDD = 1.05V
(2) Jumper@ J13.2-J13.3: VDD = 1.2V
(3) Jumper@ J12.1-J13.2: VDD = 1.0V
(4) Jumper@ J14.1-J13.2: VDD = 1.8V
Number of data lanes can be set according to
the resistors table in the left picture.
4.2.3 D6 Camera DTB Optional Function
Table 4-3 Optional Function of D6 Camera DTB
Schematic Description
GPIO[0]: Flash output (default), all input options
in GPI[2].
GPIO[1]: Shutter output (default), 3-D daisy
chain communication output and all options in
GPI[2].
GPI[2]: SADDR and standby.
GPI[3]: 3D daisy chain communication input and
all options in GPI[2].
