Mediatrix 1104 - Calls Involving an Analog Gateway

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)
Mediatrix 1104
3

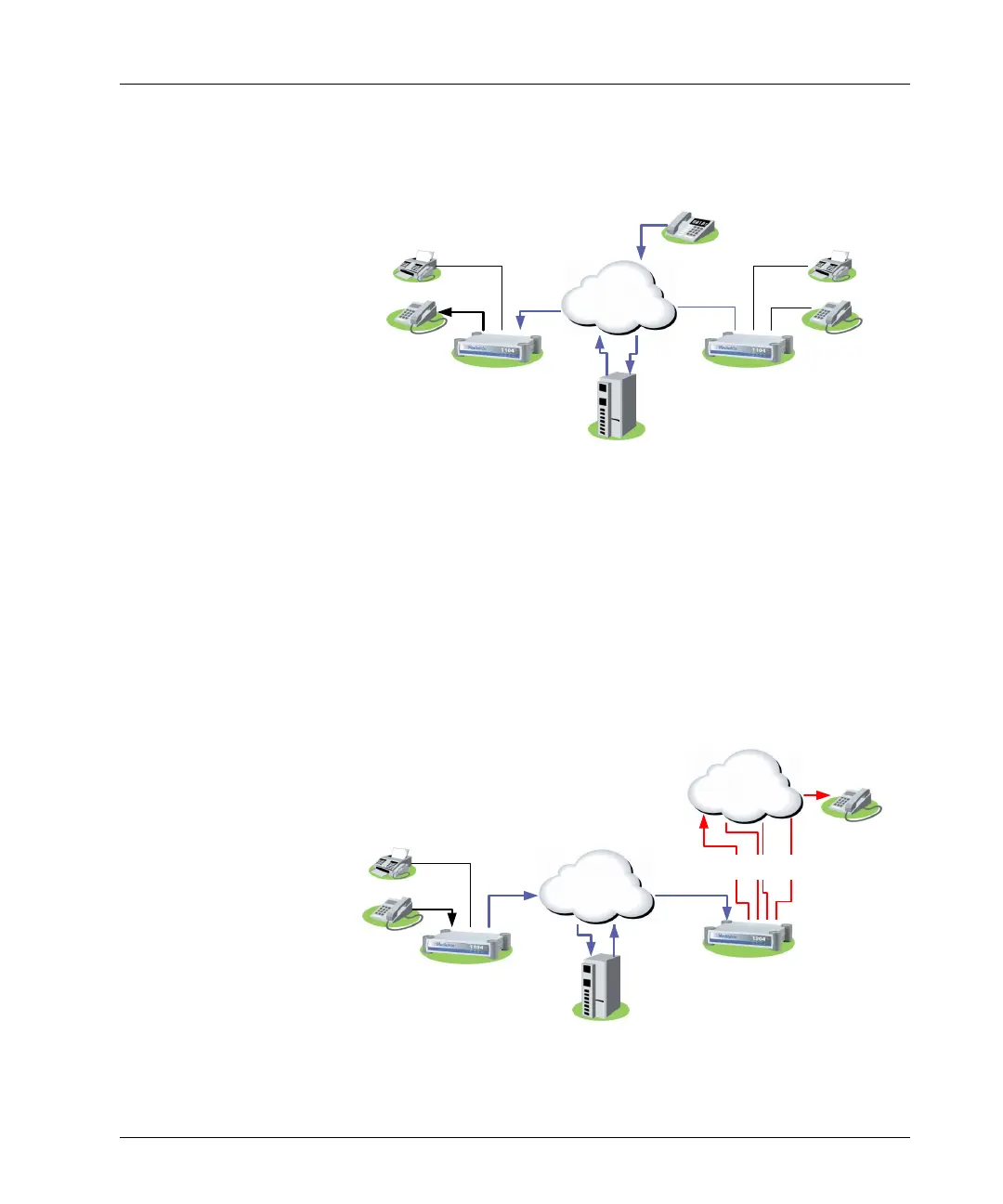

X LAN Endpoint -> Mediatrix 1104 -> Phone/Fax
A LAN Endpoint contacts the Mediatrix 1104, which reaches the
corresponding phone/fax connected to the Mediatrix 1104 access
device.
Calls Involving
an Analog
Gateway
The following example illustrates how a telephone/fax connected to a
Mediatrix 1104 access device and a SCN phone can communicate via
an analog gateway.
X Phone/Fax -> Mediatrix 1104 -> Mediatrix 1204 (Gateway) -> SCN
A user makes a call with the phone/fax connected to a Mediatrix 1104,
which in turn contacts a Mediatrix 1204 gateway, then reaches the
corresponding SCN phone.
A SCN user can also contact the Mediatrix 1204 gateway, which in turn
contacts the Mediatrix 1104, then reaches the corresponding phone/
fax.
Telephone
y IP phone
y Soft Phone
Mediatrix 1104 Mediatrix 1104
Fax
Telephone
Fax
Server
LAN Endpoint
IP
SCN
Mediatrix 1104
Mediatrix 1204
(Gateway)
Server
SCN
Telephone
Fax
Telephone
IP
4 telephone lines
connected to the SCN
