MEDIVATORS REPROCESSING SYSTEMS
17

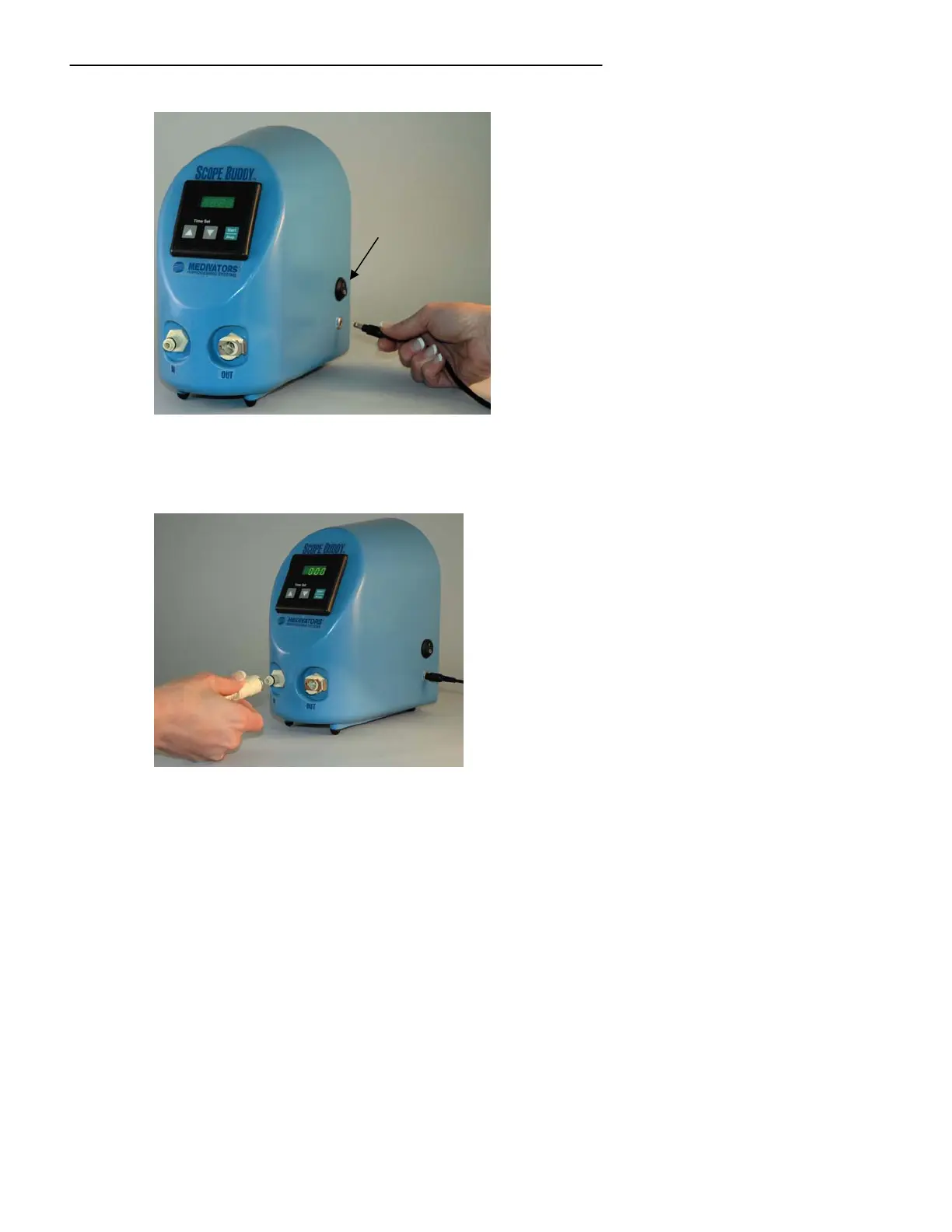

Figure 3 Base Unit Power Cord Connection
2. Locate the Fluid Intake Line and attach to front panel tubing connection port labeled “IN.” Place the
screened end into the sink or a clean container of detergent solution. Verify the screened end is deeply
submerged into the detergent solution. See Figure 4.
Figure 4 Plugging into “IN” labeled connection port on base unit.
3. Locate the DSD Extension Line and attach it to the front panel tubing connection port labeled “OUT.”
Attach the remaining end to the appropriate DSD Hook-up for the endoscope being cleaned. See
Figure 4. The tubing sets should now be connected as in Figure 3.
Power
Switch
To Next Page
