SCOPE BUDDY USER/SERVICE MANUAL
22
Figure 7
2. Locate the Fluid Intake Line and attach it to the front panel tubing connection port labeled “IN.” Place
the screened end into the sink or a clean container of detergent solution. Verify the screened end is
deeply submerged into the detergent solution. See Figure 8.

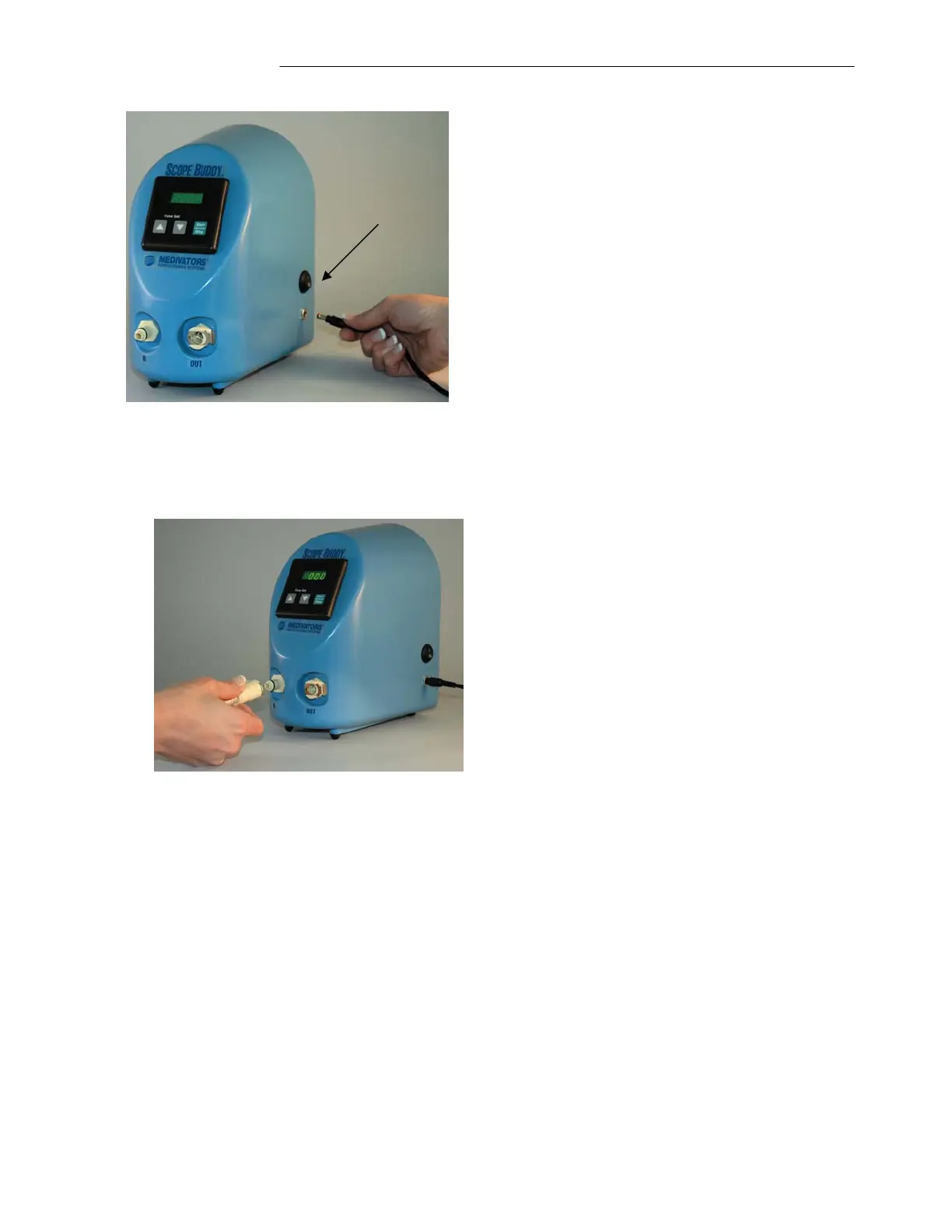

Figure 8 Plugging into “IN” labeled connection
port on base unit.
3. Locate the Universal Cleaning Adapter Extension Line and attach to front panel tubing connection port
labeled “OUT.” Attach the remaining end to the appropriate SCOPE BUDDY Universal Cleaning
Adapter (UCA 2, 3, OR 4-Way Adapter) for the endoscope being cleaned. See Figure 14. The tubing
sets should now be connected as in Figure 9.
Power Switch
