MEDIVATORS REPROCESSING SYSTEMS
31

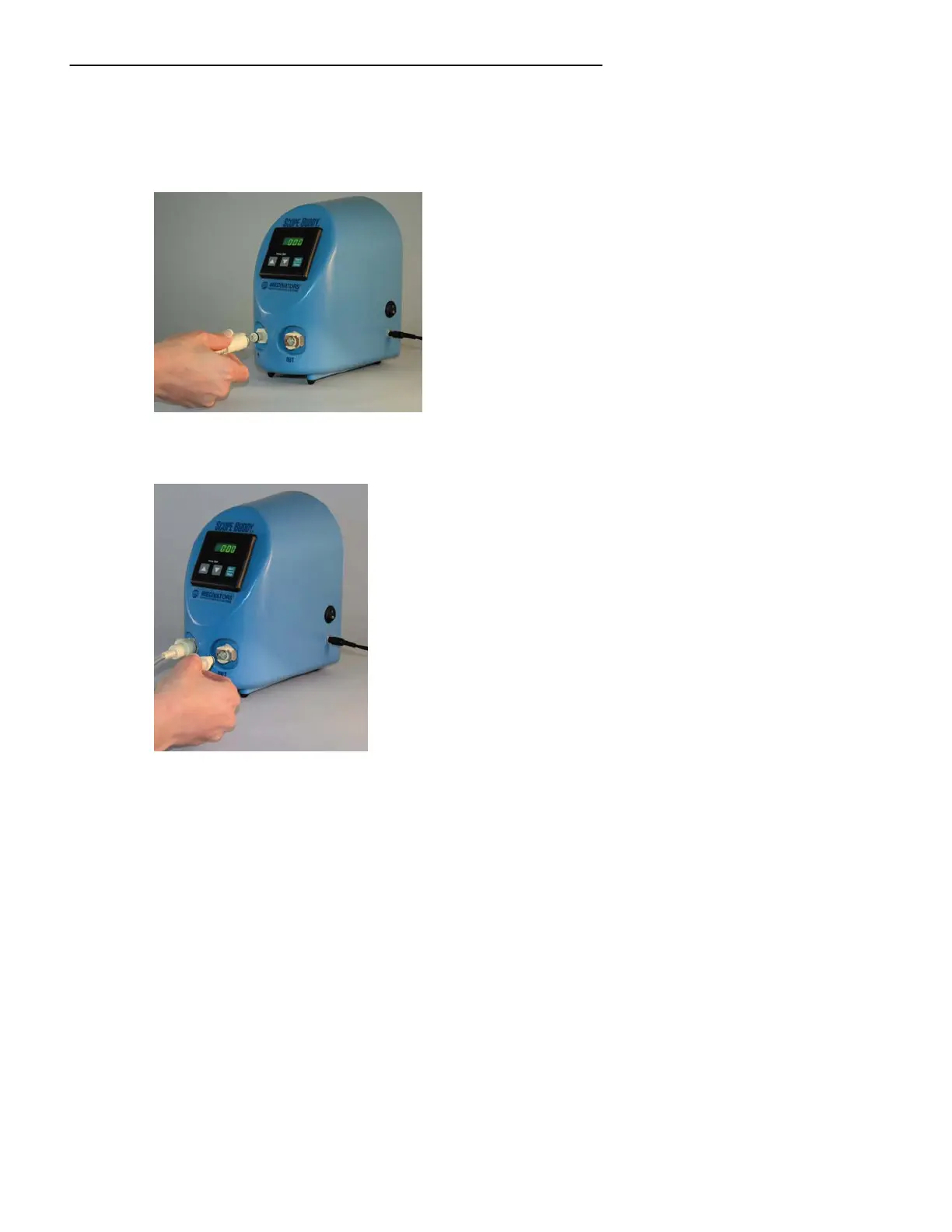

2. Locate the Fluid Intake Line and attach it to the front panel tubing connection port labeled “IN.” Place
the screened end into the sink or container of clean water. Verify the screened end is fully submerged
into the water. See Figure 15
Figure 15
3. Locate the Universal Cleaning Adapter Extension Line and attach it to the front panel tubing connection
port labeled “OUT.” See Figure 16.
Figure 16
4. Locate the Flow Verification Tube and attach the plastic Luer connector to the remaining end of the
Universal Cleaning Adapter Extension Line. Place the open end of the Flow Verification Tube into the
sink. See Figure 17
