MEGADYNE MEGA POWER - Operating Instructions; Foot Controls

7
Operating Instructions

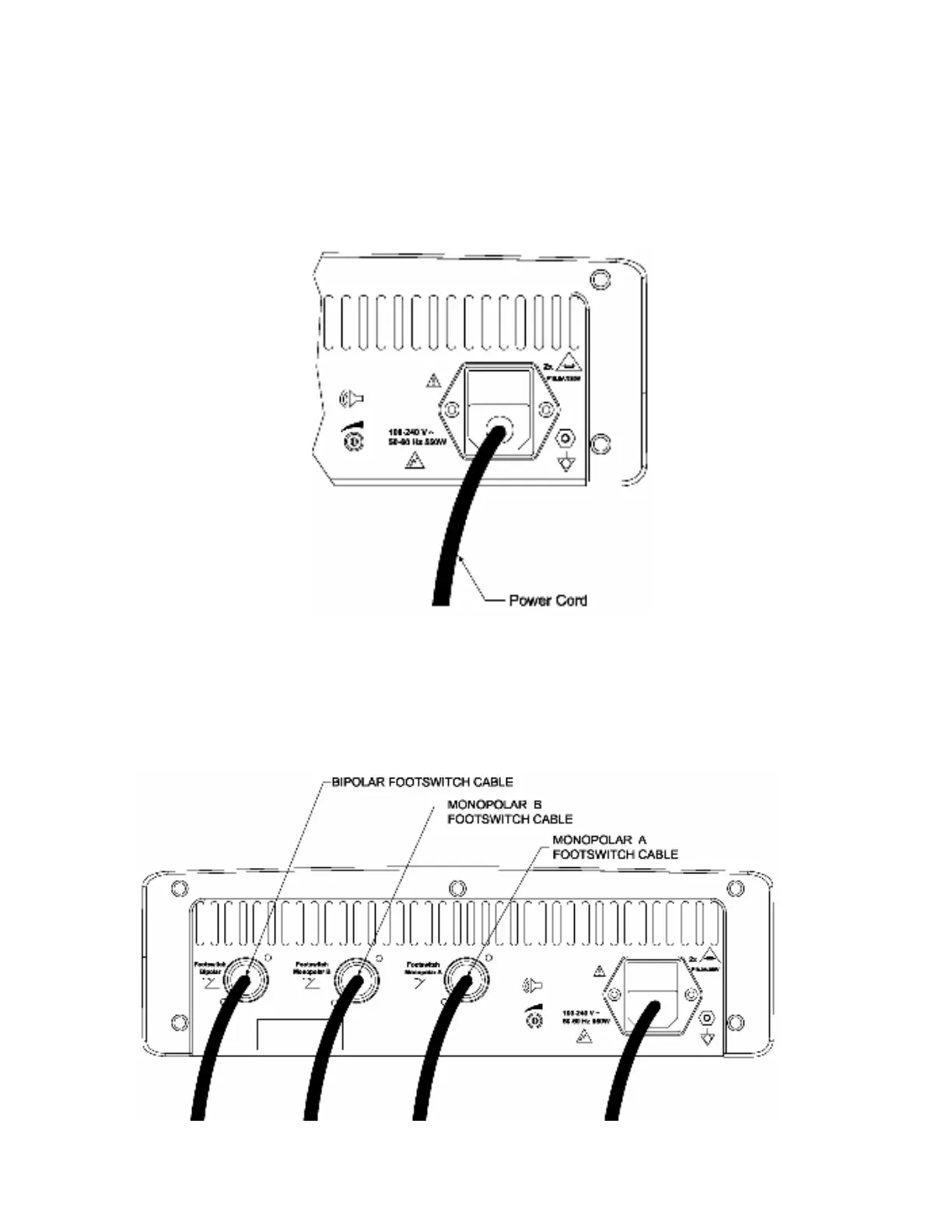

With the generator in the “OFF” position be sure that the power cord is fully inserted into
both the generator receptacle on the back of the generator and into the appropriate
grounded outlet (figure 1). The generator will function in either the 100 or 240 volt
modes depending on the power applied to the generator.
Figure 1.
Foot Controls: If footswitches are to be used for activating the active electrode, attach
the monopolar, and/or bipolar foot controls to their appropriate receptacles while the
generator is in the “off” position (figure 2). If footswitches are not used during the
procedure disconnect the footswitches from their receptacles.
Figure 2.
