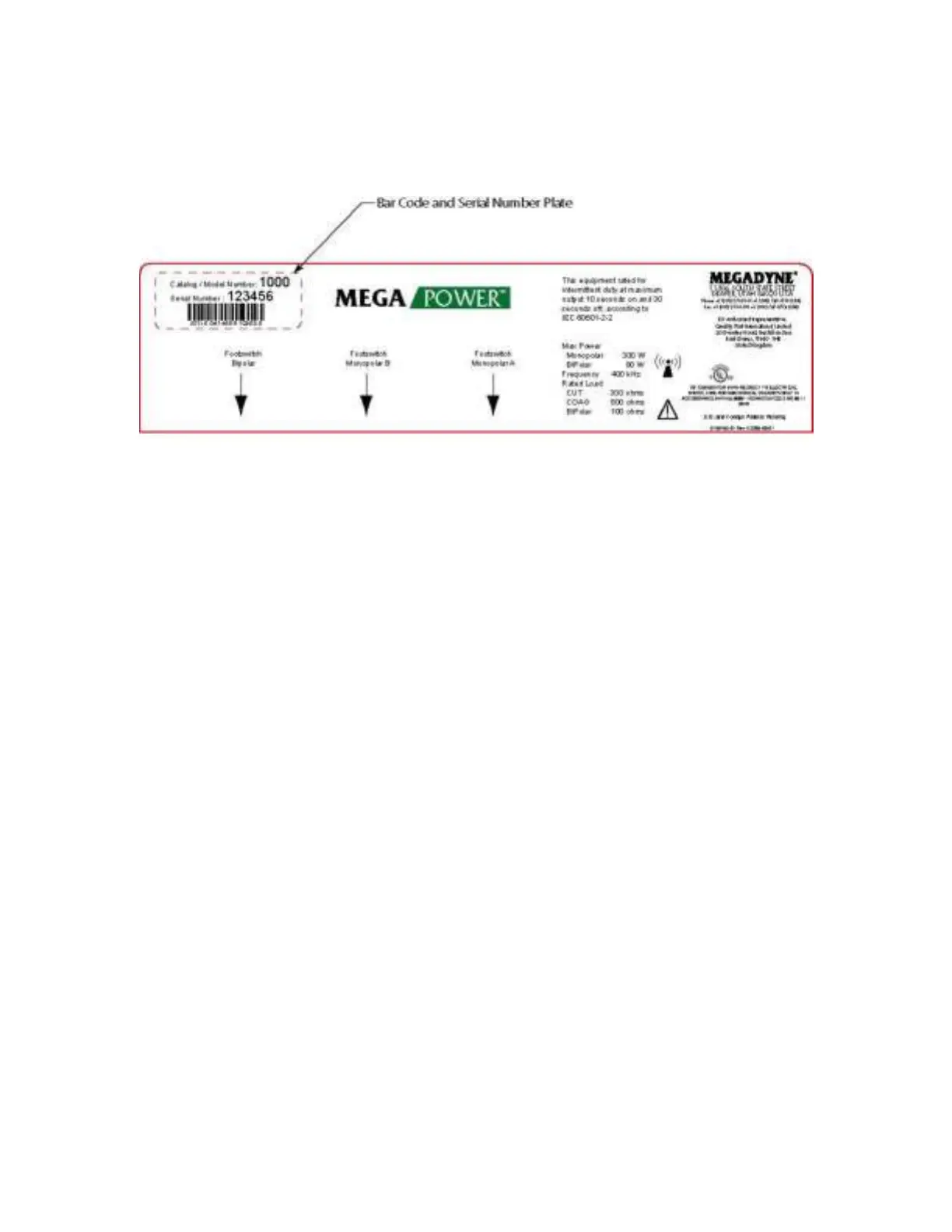

7. Bar Code and Serial Number Plate: The unique serial number is listed on the
plate with a corresponding bar code (figure 9).
Figure 9
Calibration Check
Active outputs
This test requires an ESU analyzer and test leads for connection to generator.
This test can also be performed with fixed loads and a current Loop. All
equipment used must be able to measure true RMS.
1. Connect the Mega Power monopolar A output to the ESU analyzer. Short
the two leads from the return electrode and connect them to the ESU
analyzer.
2. Set the Mega Power to the PURE CUT @ 20 watts, and set the ESU analyzer
to 300 ohms.
3. Activate the Mega Power using the footswitch on monopolar A. Verify an
audible tone while the ESU is activated.
4. Activate the Mega Power and Verify the output power is 20 Watts +/- 4
watts using the ESU analyzer.
5. Change the power setting on the Mega Power to 300 watts, activate the
Mega Power and Verify the output power is 300 Watts +/- 60 watts using
the ESU analyzer
6. Set the Mega Power to the STANDARD COAG @ 20 watts, and set the
ESU analyzer to 500 ohms.
