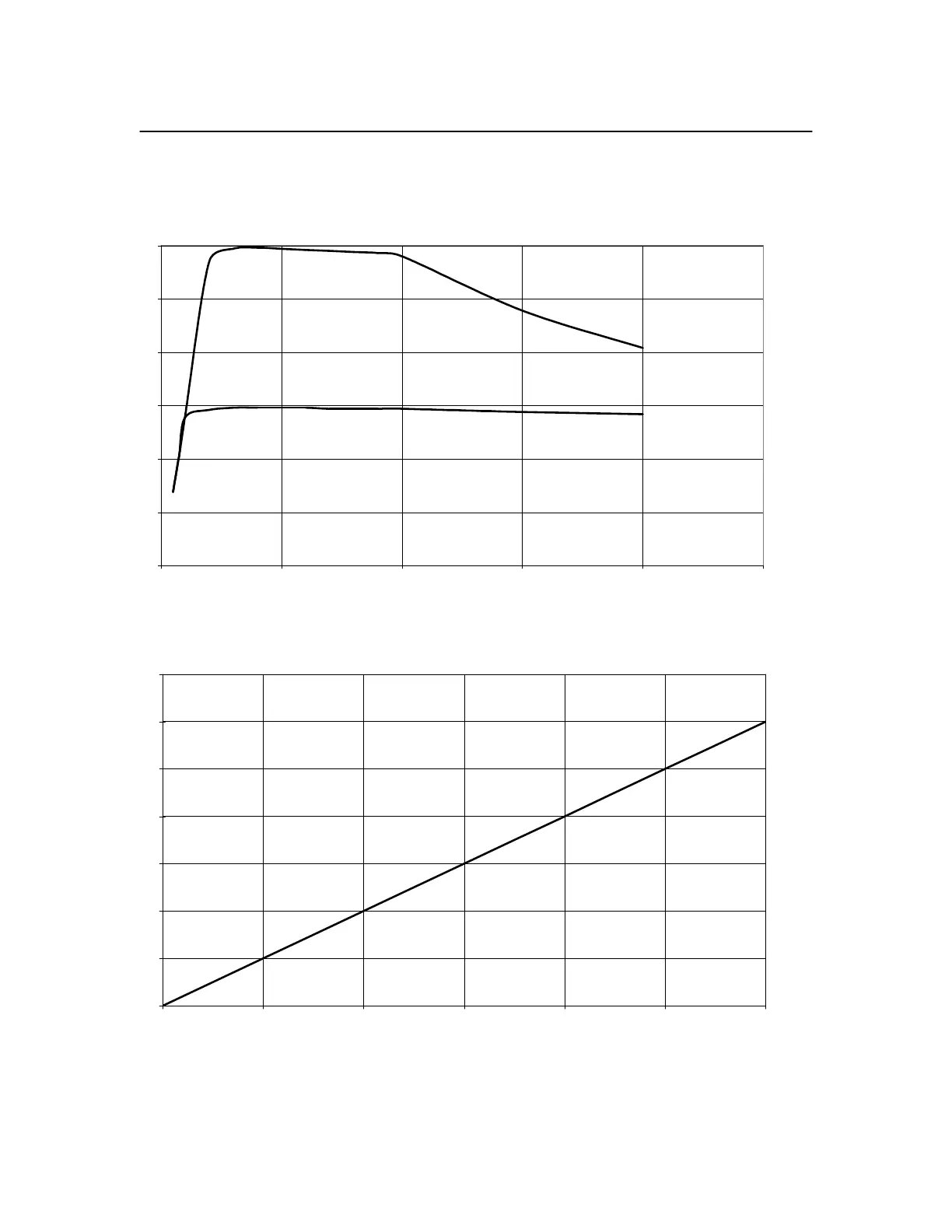

Pure Cut Output Power Graphs
Pure Cut - Output Power vs Load Resistance
0
50
100
150
200
250
300
0 500 1000 1500 2000 2500
Load Resistance (Ohms)
Power (W)
300 W
150 W
Pure Cut - Power Output vs Power Max
0
50
100
150
200
250
300
350
0 50 100 150 200 250 300
Power HF Maximum (W)
Power HF Output (W)
Rl = 300 Ohms
