Megger DLRO100E - Screen Symbol Reference; Screen Symbol Key

www.megger.comDLRO100E, 100X & 100H – 100A
23

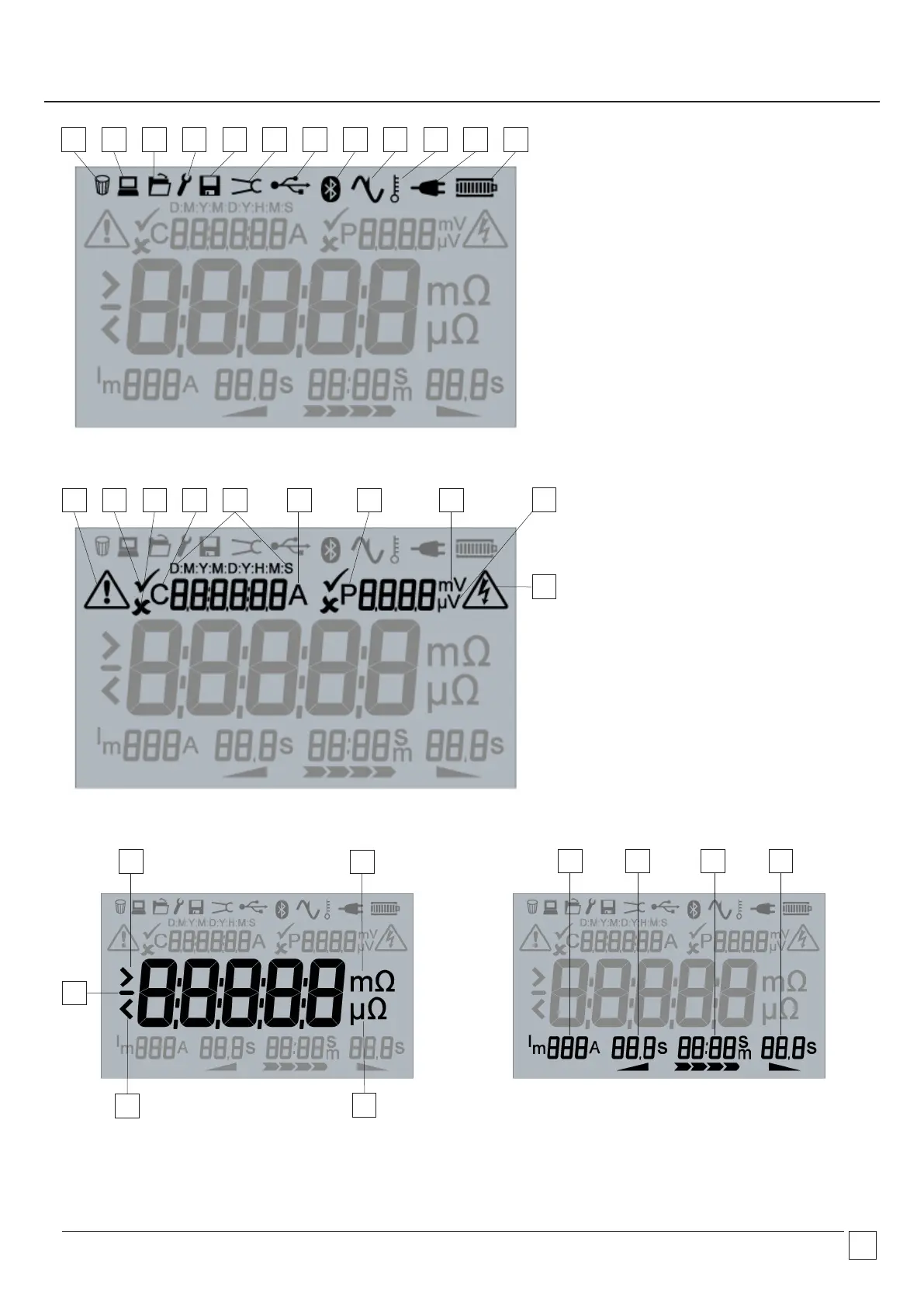

8 Screen symbol reference
1. Im – maximum
current
2. Ramp Up duration
3. Constant current
duration
4. Ramp Down
duration
1. Greater than
2. Minus/dash
3. Less than
4. mW MilliOhms
5. µW MicroOhms
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8
9
10
1
2
3
4
5
1 2 3 4
1. Delete
2. Download / Remote operation
3. Retrieve results
4. Settings
5. Save
6. DualGround™ Clamp
7. USB
8. Bluetooth
®
9. Noise
10. Temperature
11. Mains
12. Battery
1. Exception
2. Tick
3. Cross
4. C – current
5. D:M:Y:M:D:H:M:S – Date and Time
6. A – Amps
7. P – Potential – voltage measurement
8. mV – milliVolts
9. µV – microVolts
10. Hazard warning
