Battery indicator
The battery symbol on the LCD display contains 8 segments. The battery is monitored continuously when the instrument is turned on.
The charge remaining in the battery is indicated by segments as follows:
Error indicators
A lit red LED above the test button, when the instrument is not conducting a test, indicates a fault. Do NOT use the instrument if this
happens. Do not attempt to repair the instrument. See Repair and Warranty section for details.
If the internal temperature of the instrument exceeds a safe level, the test will be aborted and indicated on the screen. The
temperature must drop before testing can be continued.

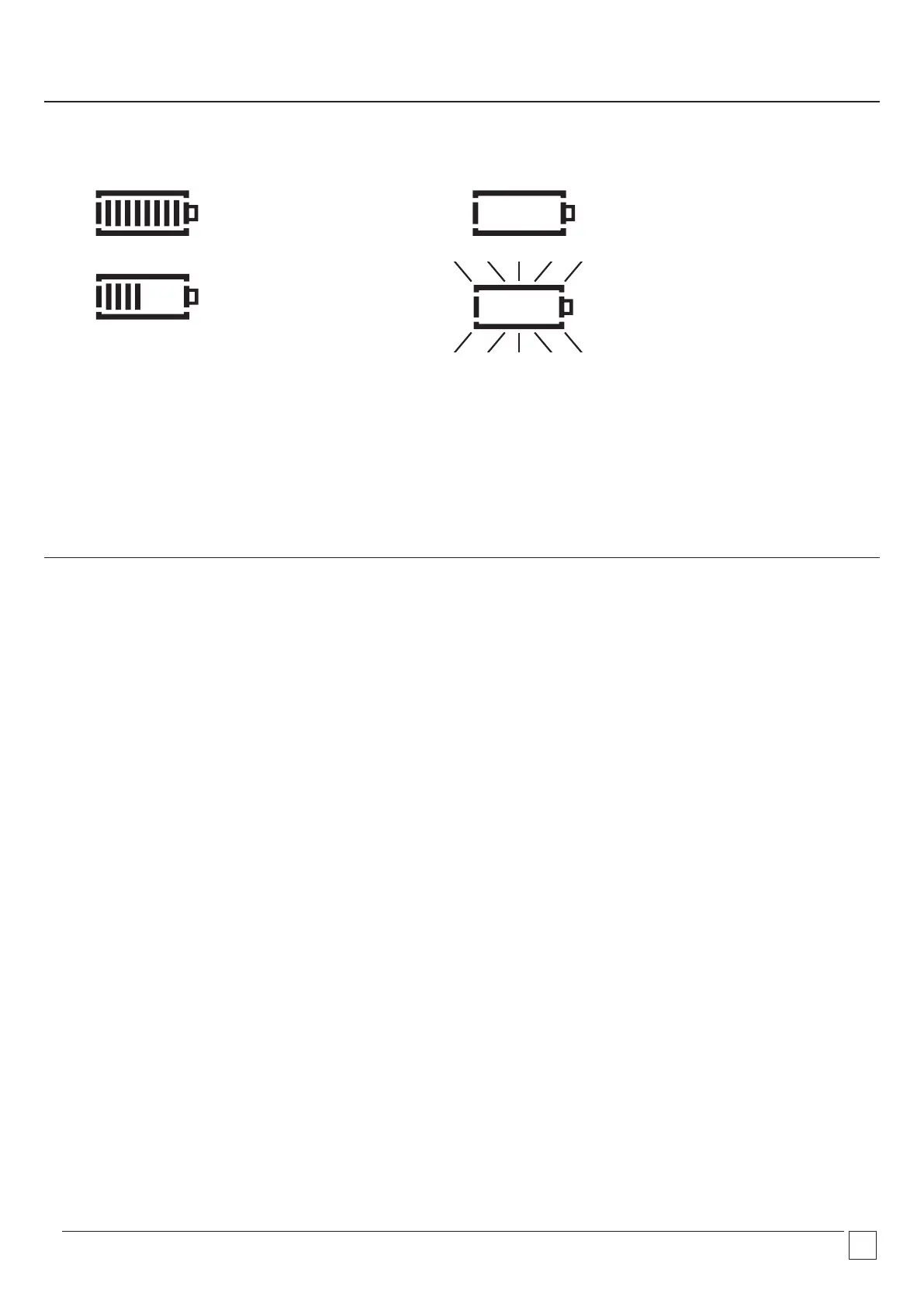

Fully charged battery
50% charged battery
Tests cannot be started,
insufficient charge
Symbol flashes when there
is not enough charge for a test
and the instrument will turn
itself off.
When mains power is present the indicator shows the battery is being
charged by animating the segments of the bar graph.
A flashing battery icon, showing the current charge level, indicates that the battery is prevented from charging due to the temperature
being out of the allowable charge temperature range, 0 ºC to 40 ºC, or that the battery has failed.
