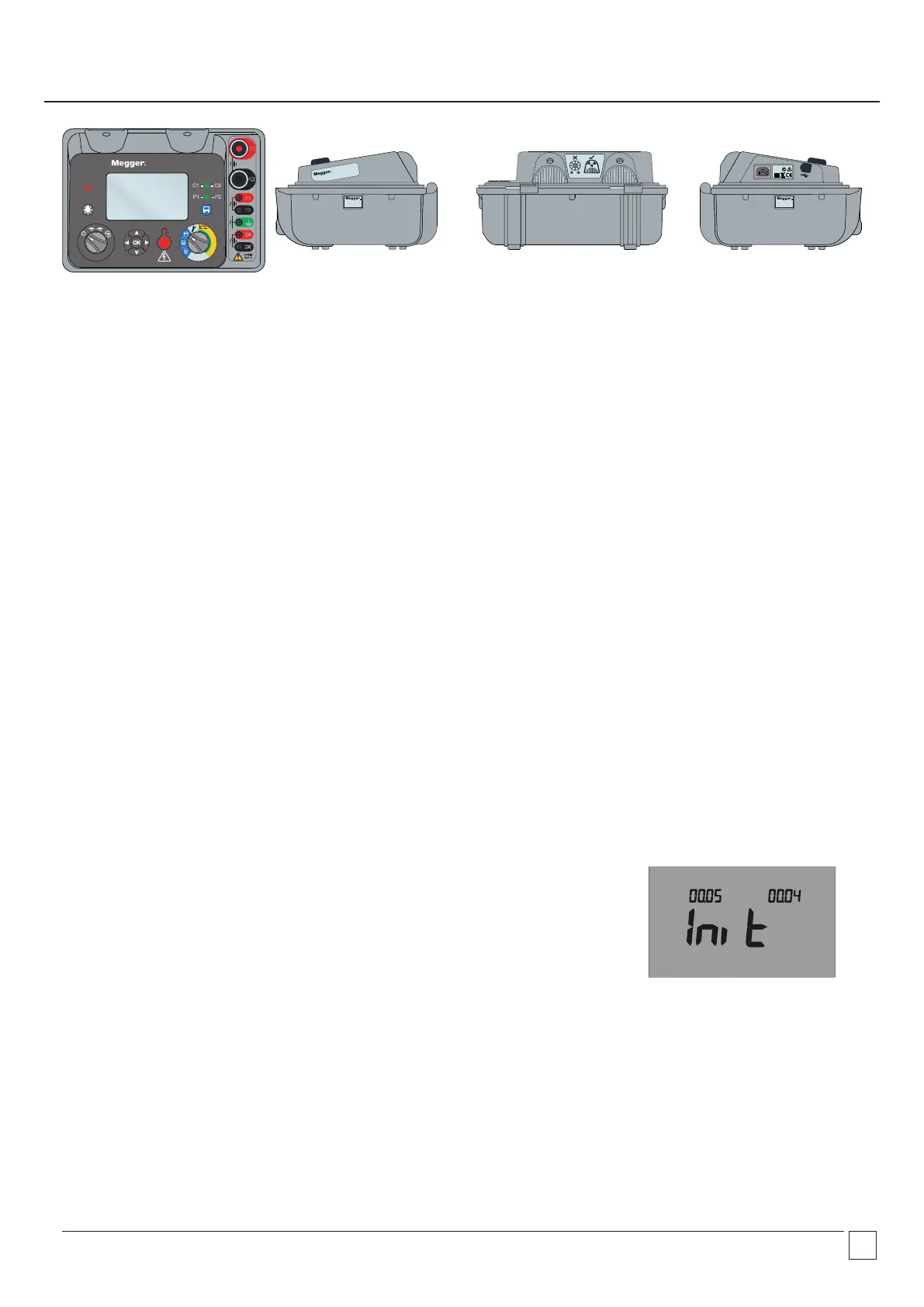

Initial instructions
■ Remove instrument, power lead and pouch from the packing box.
■ Open the lid noting position of the IEC 60320 power inlet and USB device port on the left panel.
Test terminals are located to the right of the front panel.
■ Read the safety warnings.
■ A quick reference is provided in the instrument lid.
■ Keep the original packaging for re-use.
Power lead and battery charging
■ If the power lead supplied is not suitable for your AC connection, do not use an adaptor. Always use a Megger
approved power lead
■ Use the supplied AC lead ONLY
■ Supply voltage: 90 to 265 V rms ac at 50 / 60 Hz.
■ A red LED illuminates when line power/mains is present.
■ The battery will charge when an AC source is connected, except when a test is in progress.
■ For optimum battery life, charge the battery after each use. Full charge duration is 2.5 hours.
■ The battery must be charged between 0 °C and 40 °C ambient temperature. If the battery detects a
temperature outside this range the battery symbol will flash and charging will be prevented.
Functional verification
Simply turning on the instrument at the test mode switch will initiate a start-up process and the display will respond. The initialisation
screen (right) shows the firmware version.
Calibration
The DLRO100 is supplied with a calibration certificate.
An ISO17025 (UKAS) Calibration Certificate is available if ordered with the instrument.
Storage
Instruments should be stored within its temperature and humidity specifications.
Intermittent operation limits
The DLRO100 is a high-power instrument and, as such, can generate significant heat. To prevent damage, the instrument contains
internal thermal protection which can disable the test current if excessive temperature rise is detected. In this event, the thermometer
symbol will be displayed on the screen. If this should occur, switch the instrument off and allow it to cool before repeating the test. If
possible, do not position the instrument in direct sunlight.
