4.3.2 Logging to a WinkisVLF System Card
Prerequisites

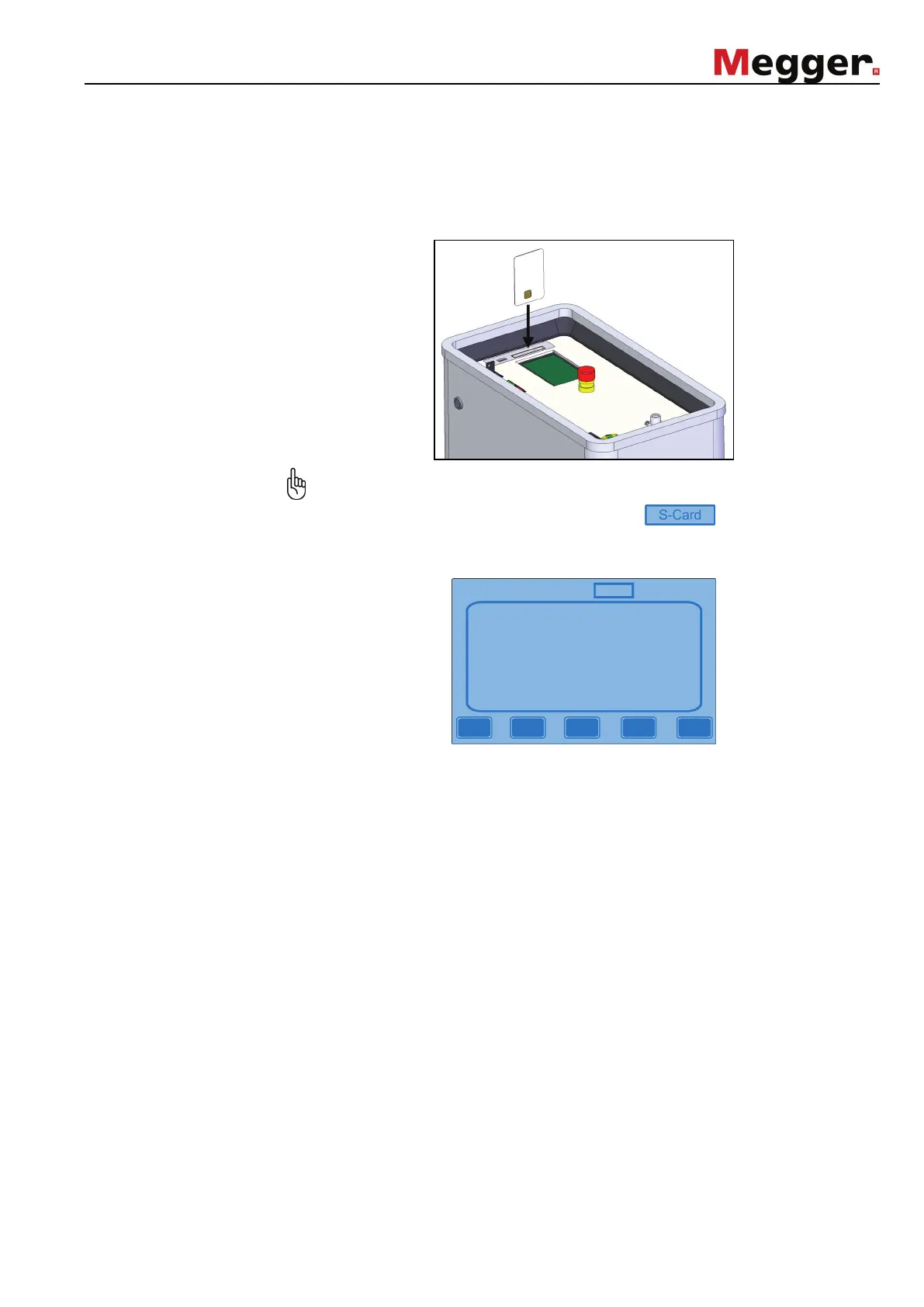

In order to log test data to a system card, a card prepared for usage in the
system has to be plugged in the appropriate slot (12) before the test is started.
The test data is only properly logged, if the
card is already plugged in the slot
prior to the test start and remains there during the complete test duration. It is
crucial not to start the test procedure before the symbol is visible.
Procedure If a formatted card is detected and accepted by the system, the follo
appears in the display:
If the card is parameterised via Winkis VLF
, the respective parameters are shown in
the display.
The example above is derived from a parameterised system card
initialised for an AC test with a test voltage of 10 kV and a duration of 5 minutes.
In this case, a test procedure in compliance with the shown conditions can be directly
started unsing the Enter soft key. The data of the test is written to the system card.
If the parameters on the system card do not match with the designated values or if the
system card is not parameterised, the main menu can be accessed using the Esc
key and an appropriate test profile can be selected. The data of th
thereupon is written to the system card.
The data on the system card can be viewed and archived using the
software. For a detailed description of Winkis VLF
, please refer to the online help of
the application.
Esc
S-Card
Parameter
AC 0,1 Hz
10 kV
5 min
░ remaining memory 161 min ░
