8.5 2 x I RCD Current Rating (Tripping test on 30mA RCD) – MFT1825 & 1835
ONLY
.1 Repeat the test sequence in 8.4 but with the LEFT rotary range knob to the
2I
RCD test range.
.2 Press the
mode button to select 0º.
.3 Press the TEST button.
X
Touch voltage limit
Measured touch voltage
RCD Trip time
RCD Type
RCD Test mode
.4 Press the mode button to select 180º.
.5 Repeat the above test.
Record the higher of the two values
>150 ms = RCD FAILED (no trip)
<150 ms = RCD Passed
8.6 5 x I RCD Current Rating (Tripping test on 30mA RCD)
Repeat the test sequence in 8.5 but with the LEFT rotary range knob to the
5I
RCD test range.
.1 Press the
mode button to select 0º.
.2 Press the TEST button.

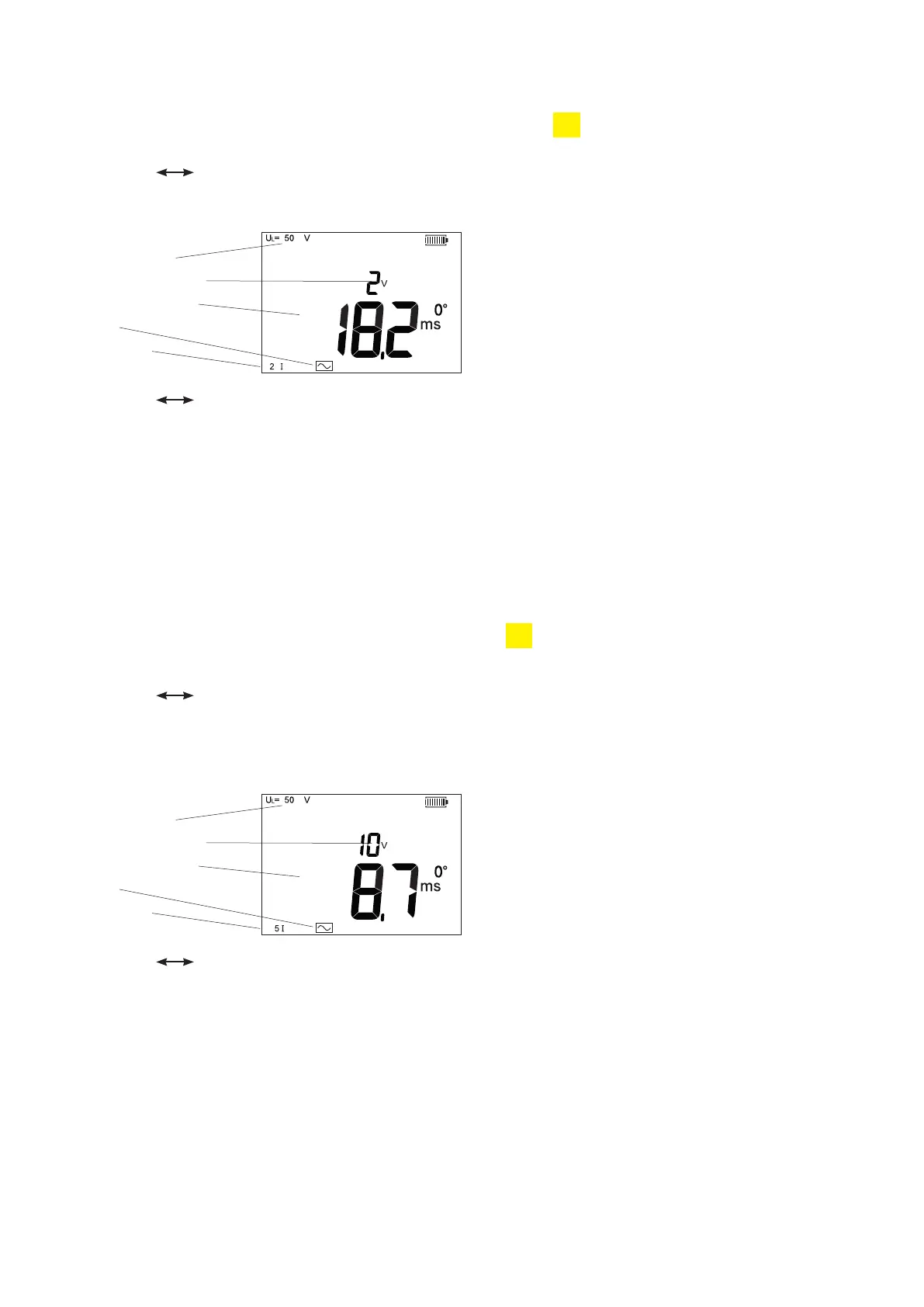

The Display should show the following:
X
Touch voltage limit
Measured touch voltage
RCD Trip time
RCD Type
RCD Test mode
.3 Press the mode button to select 180º.
.4 Repeat the above test.
Record the higher of the two values
>40 ms = RCD FAILED (no trip)
<40 ms = RCD Passed
