4 CABA LOCAL

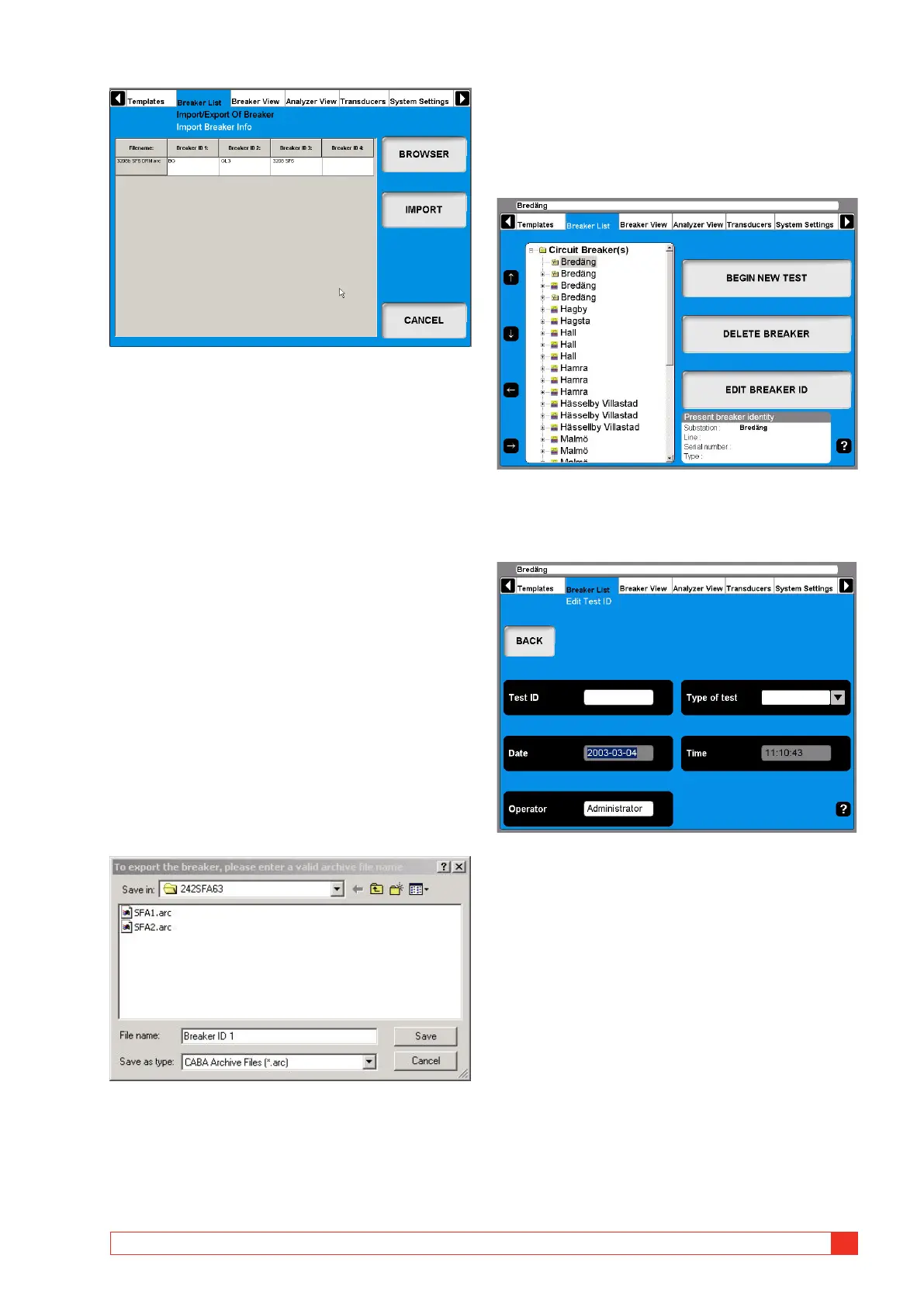

4] Navigate to the volume and folder where the
breaker files (*.arc) that you wish to import
are located, by using the Browse button.
5] Click the “Open” button in the Browse win-
dow.
6] In the list, select the breakers you want to
import and click “IMPORT”.
The selected breakers are now added to the
breaker list.
7] Repeat from step 4 if you want to import
breakers from other locations.
8] When you are done, press the “EXIT” button.
Export a breaker
1] Navigate to the root level folder labeled
Circuit Breaker(s).
2] Press the “IMPORT/EXPORT OF BREAKER”
button.
3] Navigate to the breaker you want to export.
4] Press the “EXPORT BREAKER” button.
5] Navigate to the volume and folder where
you want the breaker file to be saved.
6] Enter a valid archive file name.
7] Click the “Save” button.
Begin a new test
1] Navigate to the breaker that is going to be
tested.
2] Press the “BEGIN NEW TEST” button.
3] Fill in the “Test ID” and “Type of Test” text
fields. This is optional, also see the next sec-
tion “Edit a Test”.
4] Press the “BACK”button in order to view the
test.
