BL1448GE ZP-BL16E TM1700-SERIES
39
4 CABA LOCAL
A[n] L Phase A, head [n], left break
A[n] R Phase A, head [n], right break
B[n] L Phase B, head [n], left break
B[n] R Phase B, head [n], right break
C[n] L Phase C, head [n], left break
C[n] R Phase C, head [n], right break
A[n] LM Phase A, head [n], left break, main contact
A[n] LR Phase A, head [n], left break, resistor
contact
A[n] RM Phase A, head [n], right break, main
contact
A[n] RR Phase A, head [n], right break, resistor
contact
B[n] LM Phase B, head [n], left break, main contact
B[n] LR Phase B, head [n], left break, resistor
contact
B[n] RM Phase B, head [n], right break, main con-
tact
B[n] RR Phase B, head [n], right break, resistor
contact
C[n] LM Phase C, head [n], left break, main contact
C[n] LR Phase C, head [n], left break, resistor
contact
C[n] RM Phase C, head [n], right break, main
contact
C[n] RR Phase C, head [n], right break, resistor
contact

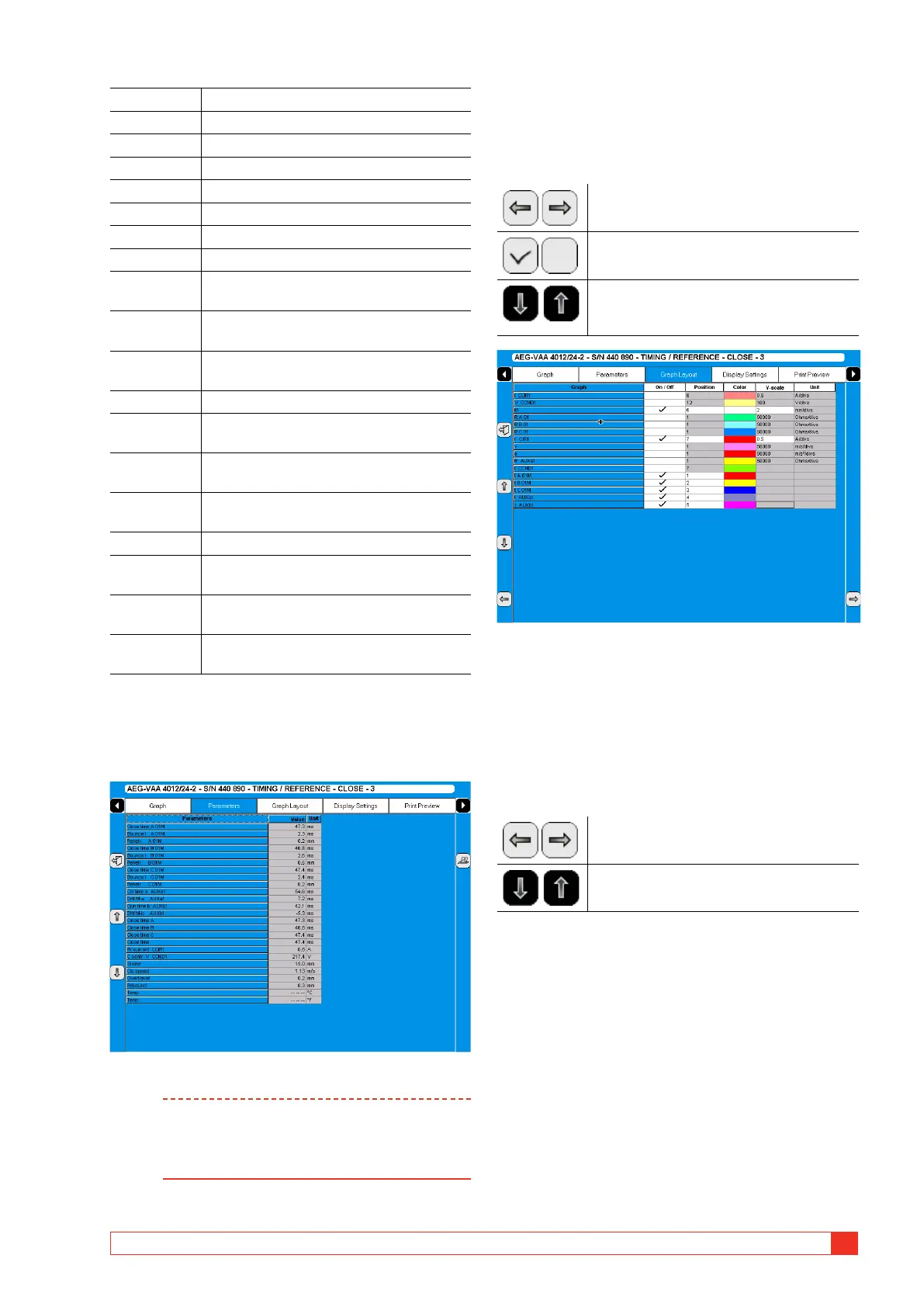

Parameters
The Parameters view shows a list of the recorded
parameters.
List of measurement results is shown in table format.
Note Pass/Fail limits can be also displayed here
but only if this functionality was setup and
activated in CABAWin. It is not possible to do
this in CABA Local.
Graph layout
Navigation and operation of this screen can be done
using the trackball and mouse buttons. Alternatively
the arrow keys can be used.
Use the buttons to select column
When the curser is in the On/Off column
use the buttons to change the setting.
Entries in the Position, Color and Y-scale
columns can be changed using the but-
tons.
Per recorded trace you can set graphical presentation op-
tions such as On/Off (visible/not visible), Position of the
trace, trace color and scale of trace.
Display settings
Navigation and operation of this screen can be done
using the trackball and mouse buttons. Alternatively
the arrow keys can be used.
Use the buttons to select column.
Entries are changed using the buttons.
To Next Page
