BL1448GE ZP-BL16E TM1700-SERIES
17
3 SYSTEM OVERVIEW
TM1760
The TM1760 is equipped as a TM1750 plus three
analog channels.
TM1760 with 3 extra analogue
channels
The TM1760 with three extra analog channels (totally
6 analog channels).

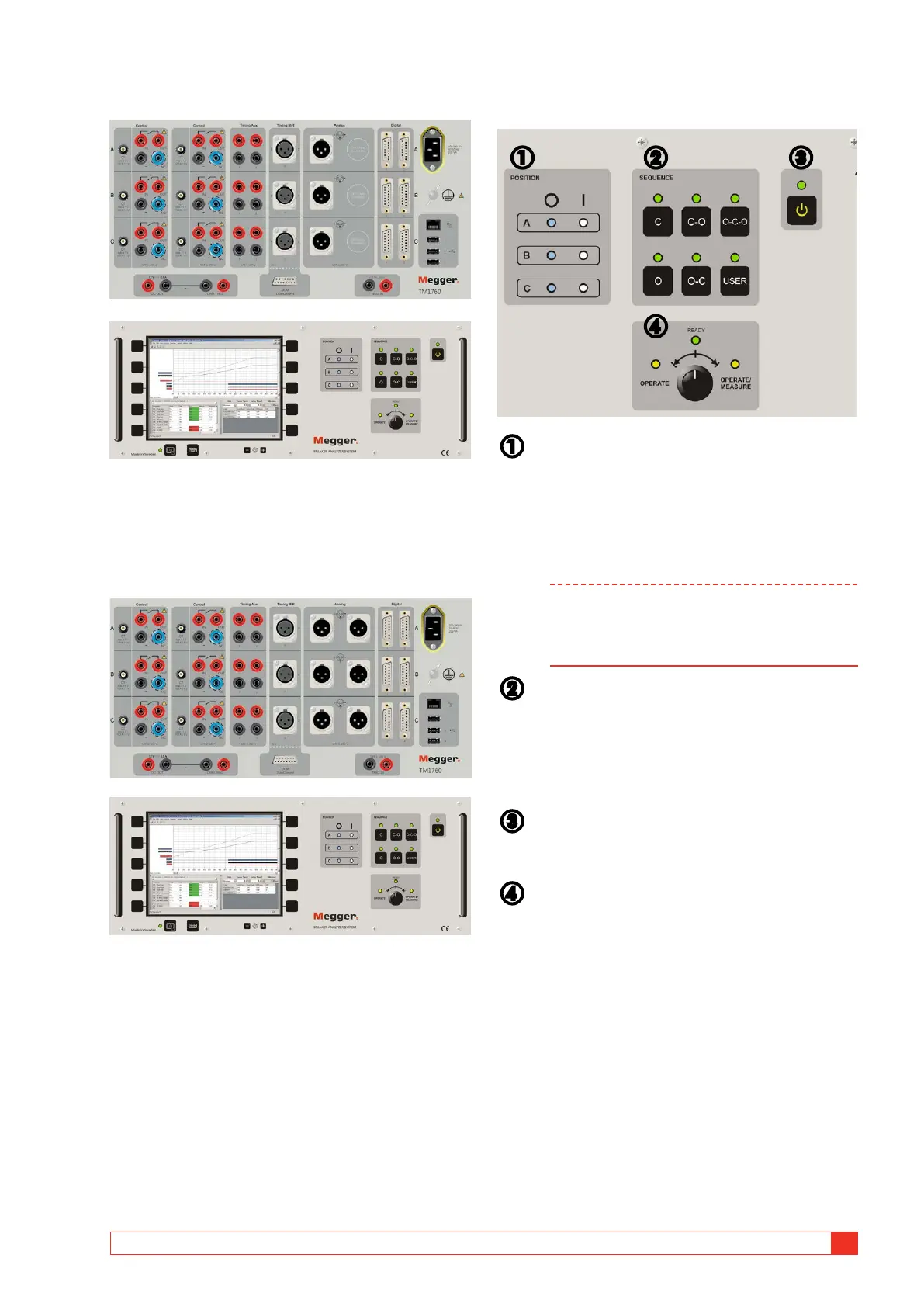

3.2 Control panel
❷❶ ❸
❹
❶ POSITION
Indicates the position of the circuit breaker main
contacts if the coil circuit is connected to the Control
section and “Auto detect” is enabled.
“O” indicates Open position
“I” indicates Closed position
Note Position indicates per operating
mechanism(s). If the Circuit Breaker has
common operating mechanism only one
LED will indicate the CB position.
❷
SEQUENCE
Indicates the next operation of the circuit breaker. If
Auto-detect breaker state is enabled in CABA Local
or CABA Win, only possible sequences for the circuit
breaker are selectable.
❸
ON/OFF
Power on/off switch
❹
OPERATE/MEASURE
Initiates the selected operation sequence and makes
the measurement. Green “READY” LED must be lit
before turning the rotary switch. The yellow “OP-
ERATING” LED is blinking as long as the sequence is
performed.
