AJ0383DE ZP-AJ01E TRAX
23
5 OPERATING INSTRUCTIONS
The following outputs are connected internally to the
same output transformer and should be considered
“live” when one of the outputs is activated.
▪ 0-2200 V AC
▪ 0-250 V/10 A AC
▪ 0-300 V DC
▪ 0-200 / 800 A AC
The 2.2 kV output is additionally disconnected with a
relay and the output is “live” only when this genera-
tor is selected to be used.
The 1, 16 and 100 A DC current outputs are intended
for resistance measurements.

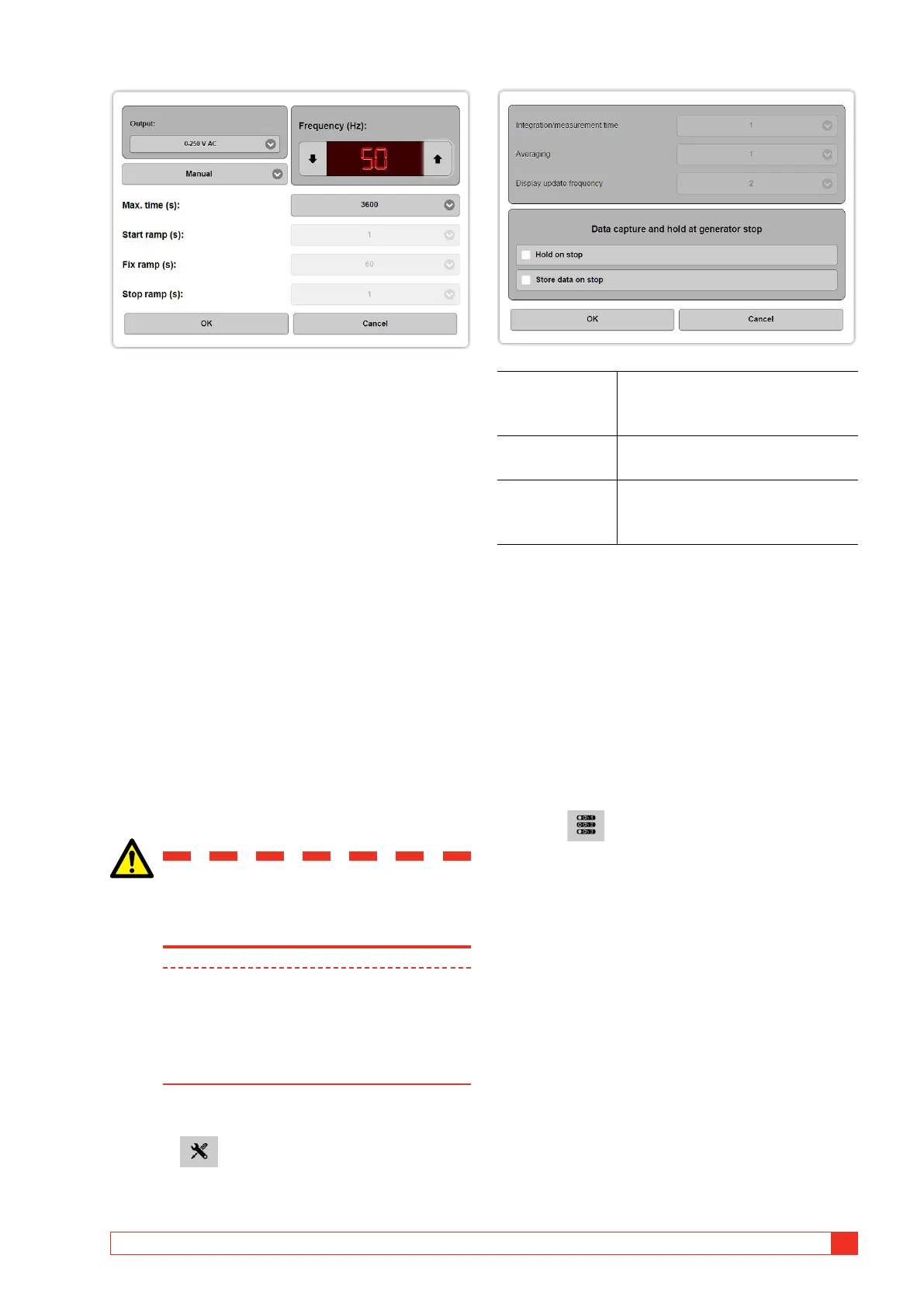

3] Make settings for “Frequency”.
4] Select “Manual” or “Ramp”.
In manual mode the generator is started instantly. A
maximum generating time can be set.
In ramp mode, the output signal amplitude is
increased continuously, hold at the set value and
decreased back to zero. Ramp and hold times are
selectable.
Warning
The Manual Control is not designed for
resistance measurements on inductive
loads.
Note If Manual Control is used for resistance
measurements on inductive loads, manual
setting with small and slow adjustment of test
current should be used. For measuring highly
inductive loads, e.g. transformer windings, the
winding resistance app should be used.
App settings
1] Press
Integration /
measurement
time
Integration time for the individual
measurement record
Averaging Number of averaged measurement
records in the measured value
Display update
frequency
Interval for updating displayed
values
(Time per measurement record)
Example: 1,1,1 means that a measurement is per-
formed over 1 s, no additional averaging and the
display is updated every second. 2, 3, 1 means that
a measurement is performed over 2 seconds and 3
measurements are averaged. The display shows a
running average every second (2/2).
Data capture and hold at generator stop
Make desired action at generator stop, “Hold on
stop” and/or “Store on stop”.
App channel selection
1]
Press to select measurement channels.
