14 TRAX ZP-AJ01E AJ0383DE

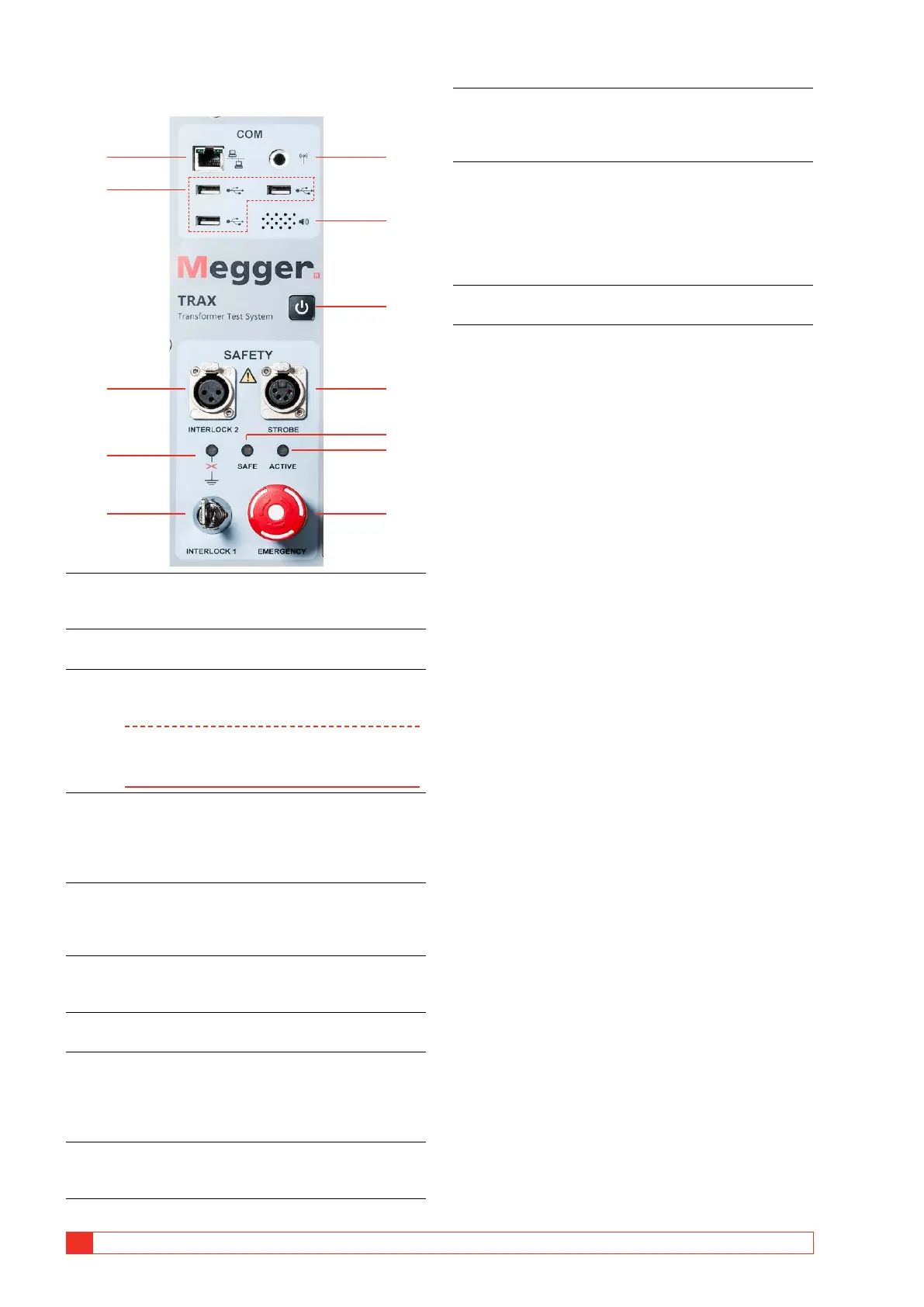

3 CONTROLS, INDICATORS AND CONNECTORS
Communication and safety
1 6
2
3
4
5
10
7
8
9
12
11
1. Ethernet port for running the instrument from
an external PC or connect it to an external net-
work.
2. Three USB ports for multipurpose use: USB mem-
ory stick, external mouse or keyboard.
3. INTERLOCK 2
Manual interlock. If activated, the power amplifi-
er shuts off when the interlock is open.
Note Interlock 2 can not be deactivated for 2.2 kV
output and when using the TDX120 acces-
sory.
4.
Ground Loop Indicator
This yellow LED will indicate if the GROUND con-
nector on the side panel is not connected to the
same external ground as the mains outlet. See
section “Safety” for details.
5. INTERLOCK 1
Fixed interlock with key switch. If the key is in
the OFF position, or is not in the unit, the power
amplifier is OFF.
6. Connector for Wifi antenna, making it possible
to run the instrument wireless from a PC or tab-
let (option).
7. Communication Speaker
Beeper under the panel for sound indicator.
8. ON / OFF
Press button for 1 second and the instrument will
start.
Press for 3 seconds and the instrument will shut
off.
9. STROBE
External strobe is optional, but when connected,
it will flash while generating voltage/current.
10. SAFE
Green LED indicates that the instrument is in a
safe state for connecting and disconnecting of
cables.
11. ACTIVE Indicator
Red LED continuous light – Instrument is ready
for generating voltage/current (armed).
Red LED flashes – Instrument is generating a
voltage or current or discharging an inductive
circuit after a DC test (winding resistance meas-
urements).
12. EMERGENCY
ESD – Emergency shut down button.
