AJ0383DE ZP-AJ01E TRAX
25
5 OPERATING INSTRUCTIONS

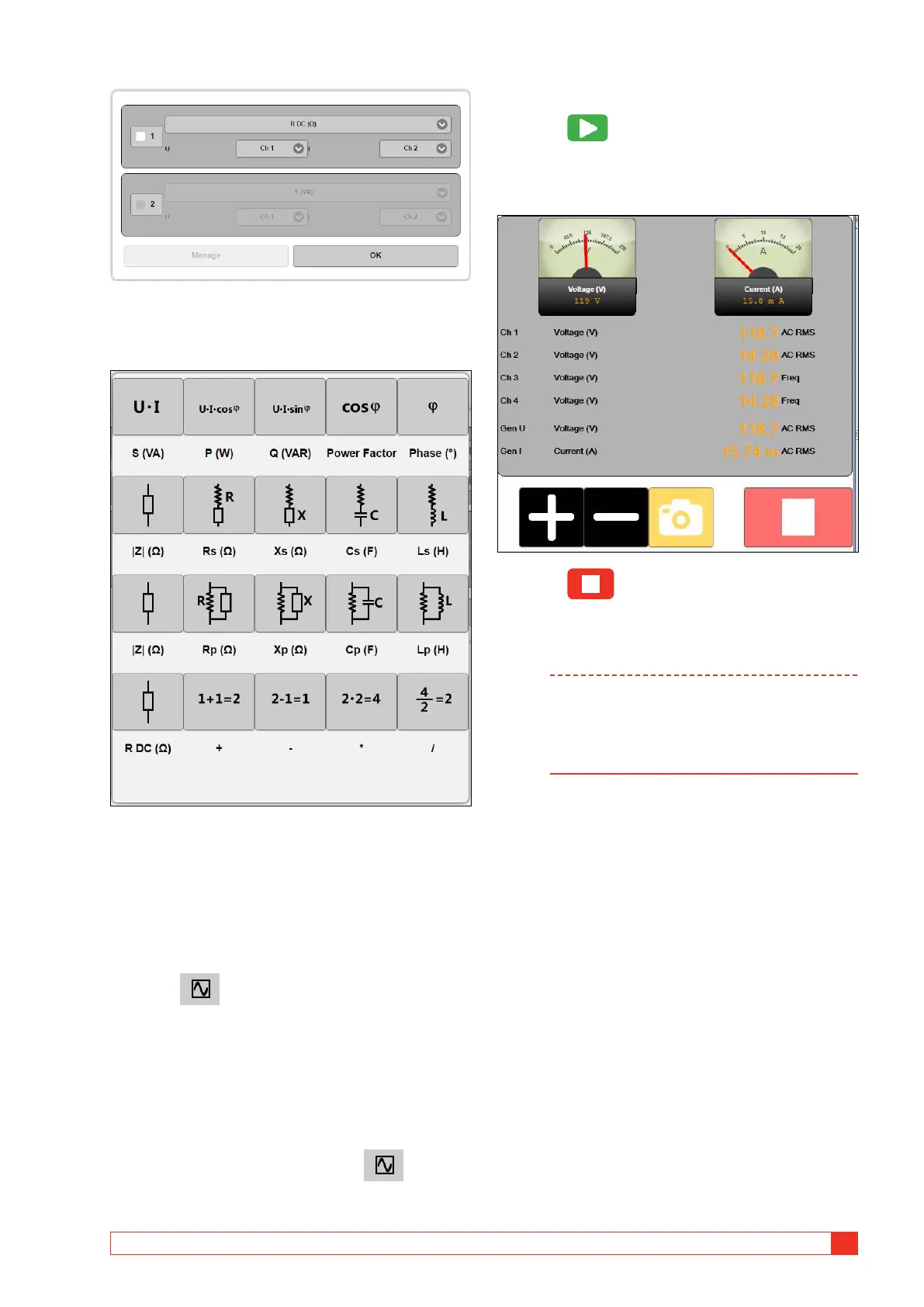

The dialog activates mathematical operations on test
data. Measured data can be used to calculate one or
two selected parameters out of the following list:
For phase measurements, the lowest channel number
is reference (e.g. phase difference between Ch 1 and
Ch 2 is calculated as Ch 2 lag).
For phase related measurements e.g. Z, X etc. the
value is calculated with voltage reference.
Oscilloscope
1]
Press
The oscilloscope can be used to monitor measurement
signals.
2] Press “Inputs” (red square) and select meas-
urement channels for display.
3] Press “Freeze” to hold and show the oscillo-
scope picture.
4] To close the oscilloscope, press
Start/Stop measurements
1]
Press to start the measurement.
Output signals and selected measurement signals are
continuously displayed on the analog meters and in
the results fields.
2] Press to stop the generator.
Measurement data and calculated parameters are
captured and held. Pending app settings, the results
are stored in the results table.
Note Selected measurement channels in Manual
Control are “always on” (multimeter mode) to
be able to be used with or without TRAX gen-
erators. This means that values are displayed
also before the TRAX generator is started.
