Owners manual MELEX 4XX MELEX 2021/01
13

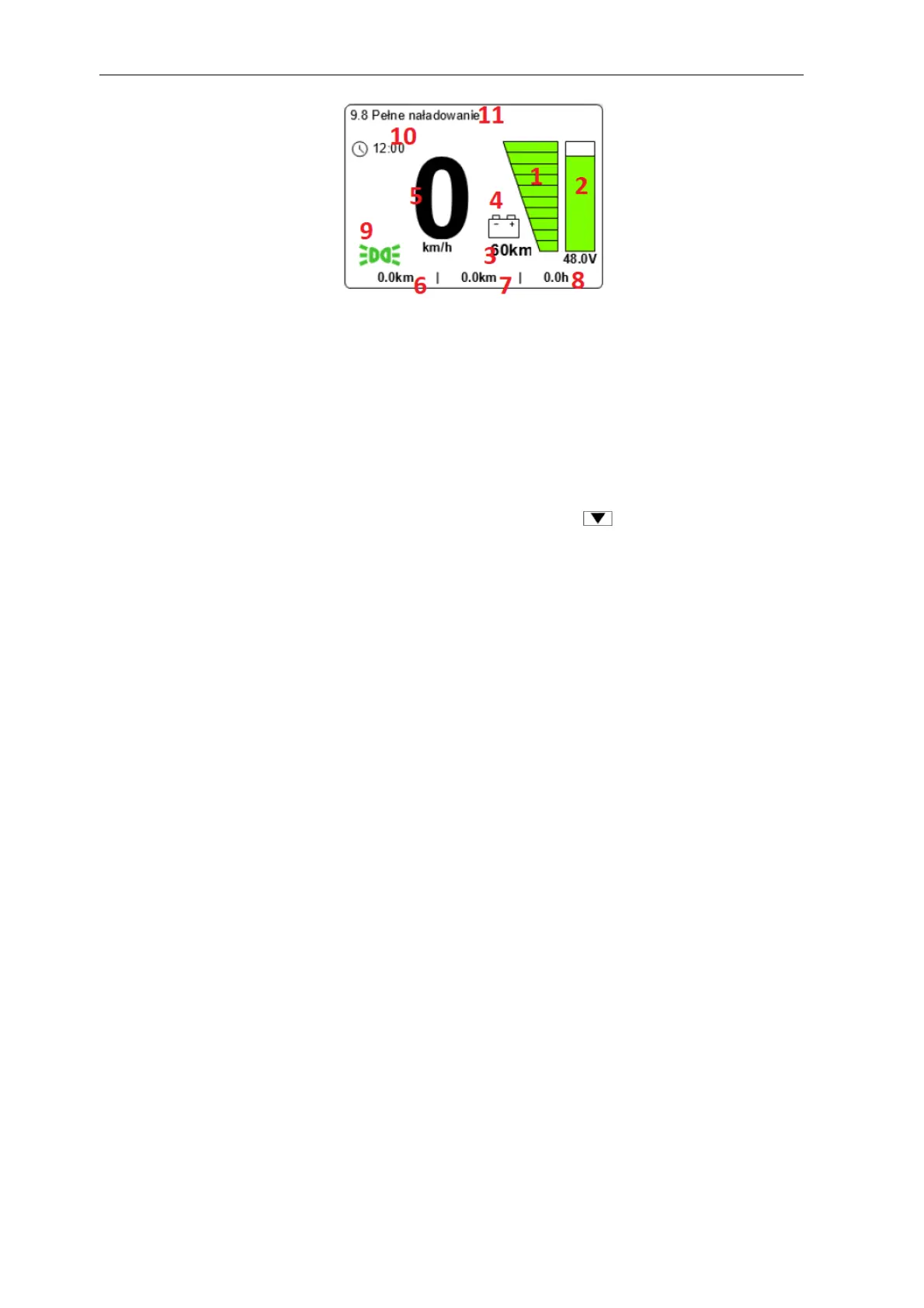

Drawing 3-12
1. Batteries discharge indicator
2. Indicator of momentary batteries voltage value
3. Estimated range of vehicle for present level of batteries charging
4. Battery icon
5. Current speed indication with unit
6. Counter of total kilometers
7. Counter of daily kilometers – deleted with the button
8. Moto - hours counter
9. Position lights icon
10. Clock
11. System messages
List of errors and failure (displayed and saved in the registry):
No of failure Failure’s description
8,1 Indicator used in temperature below -20⁰C
8,2 Indicator used in temperature over +50°C
8,3 Too low batteries voltage - batteries should be charged
8,4 Not in use nowadays
8,5 No voltage of power supply of speed sensor (possible short circuit to
ground)
8,6 Not in use nowadays
8,7 Output overload MOTOR TEMP (possible too high voltage at the
output)
8,8 Not in use nowadays
8,9 Memory configuration failure
9,1 Database failure
9,2 Overheated motor
9,3 Too big output overload LOW BDI (possible too high voltage at the
output)
9,4 Too big output overload PARK OUT (possible too high voltage at the
output)
9,5 Driving with pulled hand brake
9,6 Detecting move of vehicle at KSI - OFF
9,7 Deep discharge
9,8 Full charge
9,9 The occurrence of OC RESET (charging of batteries out of the
vehicle)
