1.1 Adapter Cards Covered in this Manual
Table 3 lists the single VPI adapter cards described in this manual.
Table 4 lists the dual port VPI adapter cards described
in this manual.
Table 3 - Single Port Cards List
Ordering Part Number
(OPN)
PCI Express
SERDES
Speed
Data Transmis-
sion Rate/
# of ports
Short / Tall
Bracket
RoHS Adapter IC Part Number
MHRH19C-XSR PCIe Gen2
5.0 GT/s
40 Gb/s QDR
1 port
Short R-6 MT25414B0-FCCR-QI
MHRH19C-XTR PCIe Gen2
5.0 GT/s
40 Gb/s QDR
1 port
Tall R-6 MT25414B0-FCCR-QI
MHQH19C-XSR PCIe Gen2
5.0 GT/s
40 Gb/s QDR
1 port
Short R-6 MT25414B0-FCCR-QI
MHQH19C-XTR PCIe Gen2
5.0 GT/s
40 Gb/s QDR
1 port
Tall R-6 MT25414B0-FCCR-QI
MHRH19B-XSR PCIe Gen2
5.0 GT/s
20 Gb/s DDR
1 port
Short R-6 MT25408B0-FCCR-GI
MHRH19B-XTR PCIe Gen2
5.0 GT/s
20 Gb/s DDR
1 port
Tall R-6 MT25408B0-FCCR-GI
MHQH19B-XSR PCIe Gen2
5.0 GT/s
40 Gb/s QDR
1 port
Short R-6 MT25408B0-FCCR-QI
MHQH19B-XTR PCIe Gen2
5.0 GT/s
40 Gb/s QDR
1 port
Tall R-6 MT25408B0-FCCR-QI

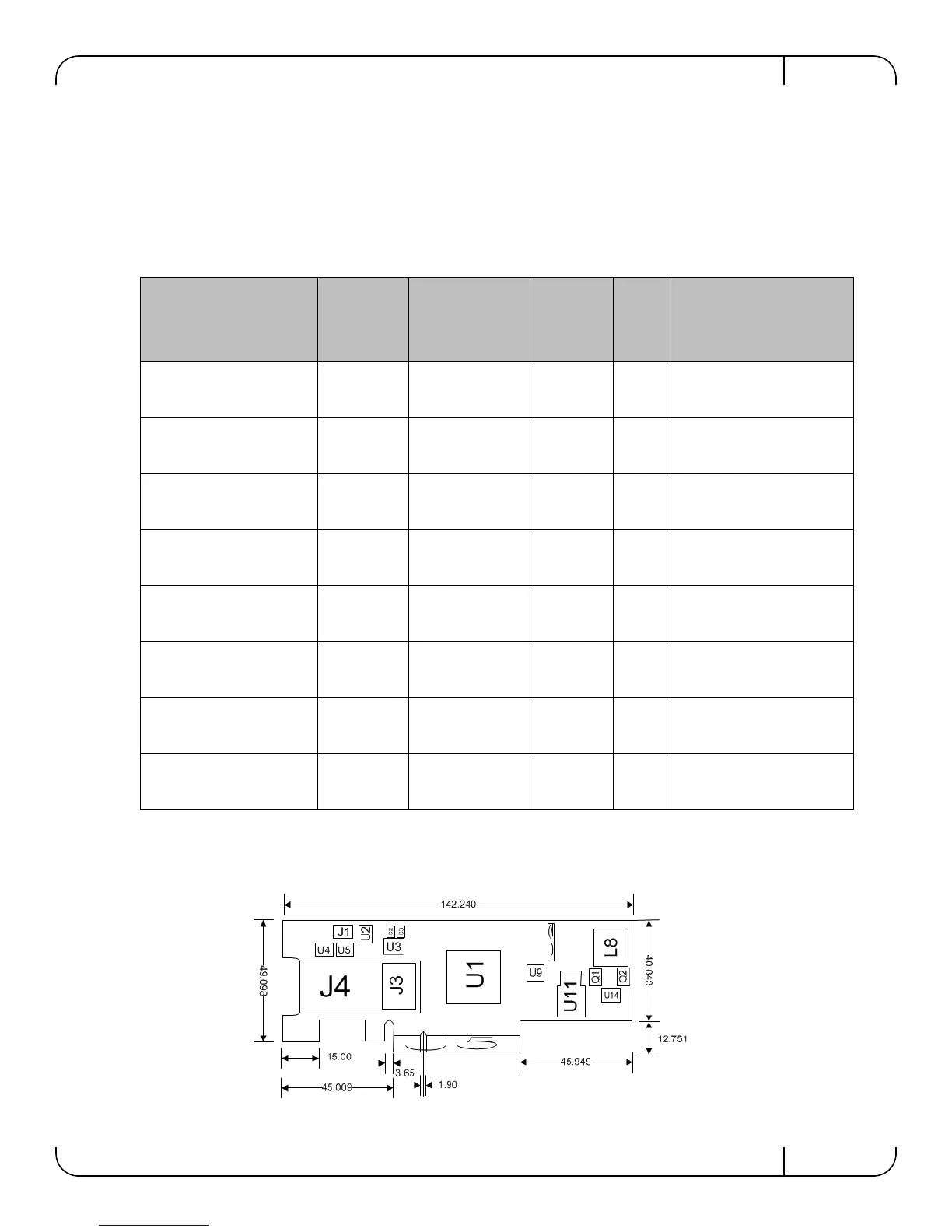

Figure 1: Single Port Card Component Side
