Rev 1.6
Mellanox Technologies
50

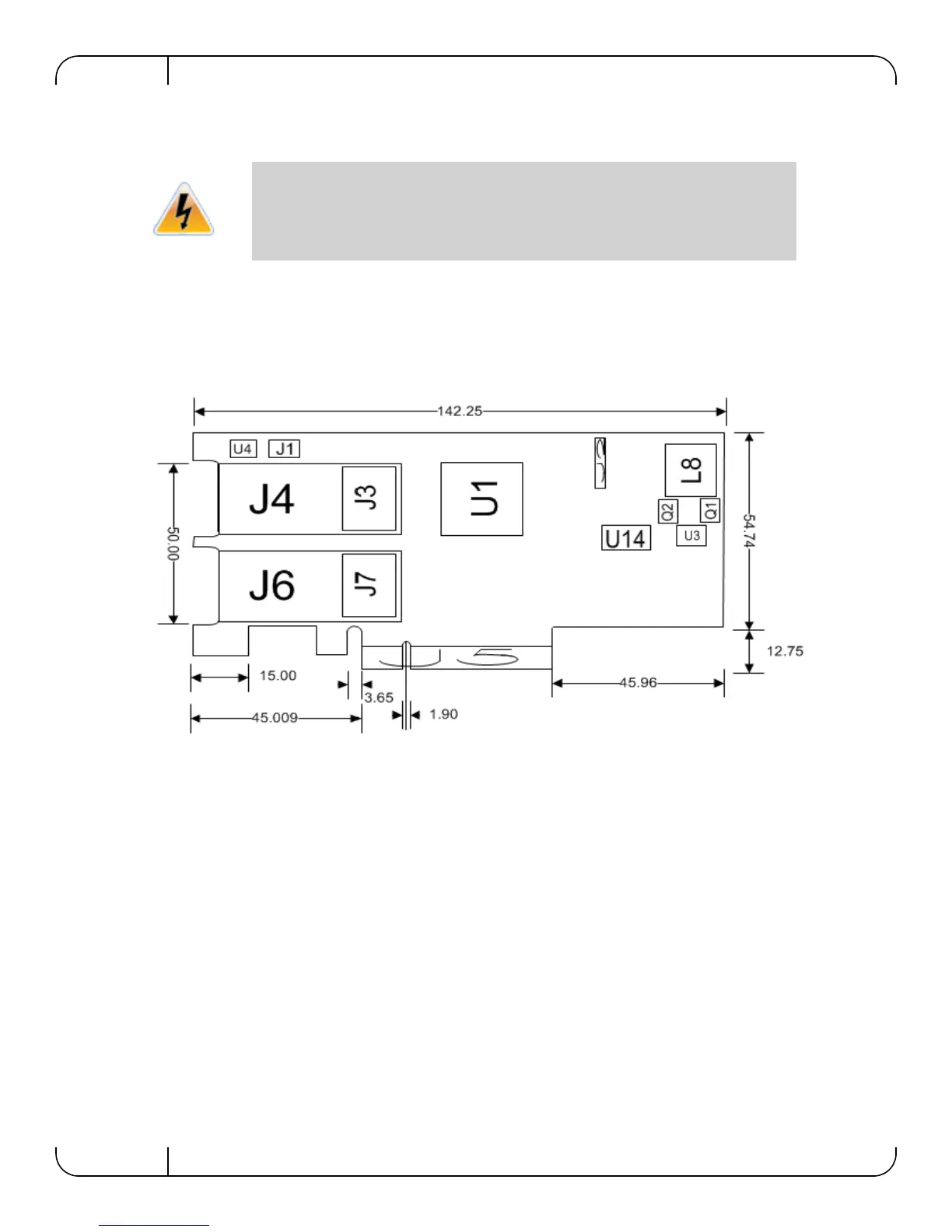

A.7 Board Mechanical Drawing and Dimensions
All dimensions are in millimeters.
All the mechanical tolerances are +/-0.1mm
Figure 12: Schematic of the Dual Port Adapter Card MHQH29C
