Mellanox Technologies MHQH29C-XTR User Manual

ConnectX®-2 VPI Single and Dual Port QSFP InfiniBand and Ethernet Adapter Card User Manual Rev 1.6
Mellanox Technologies
57
C.1 Remove the Existing Bracket from the Adapter Card

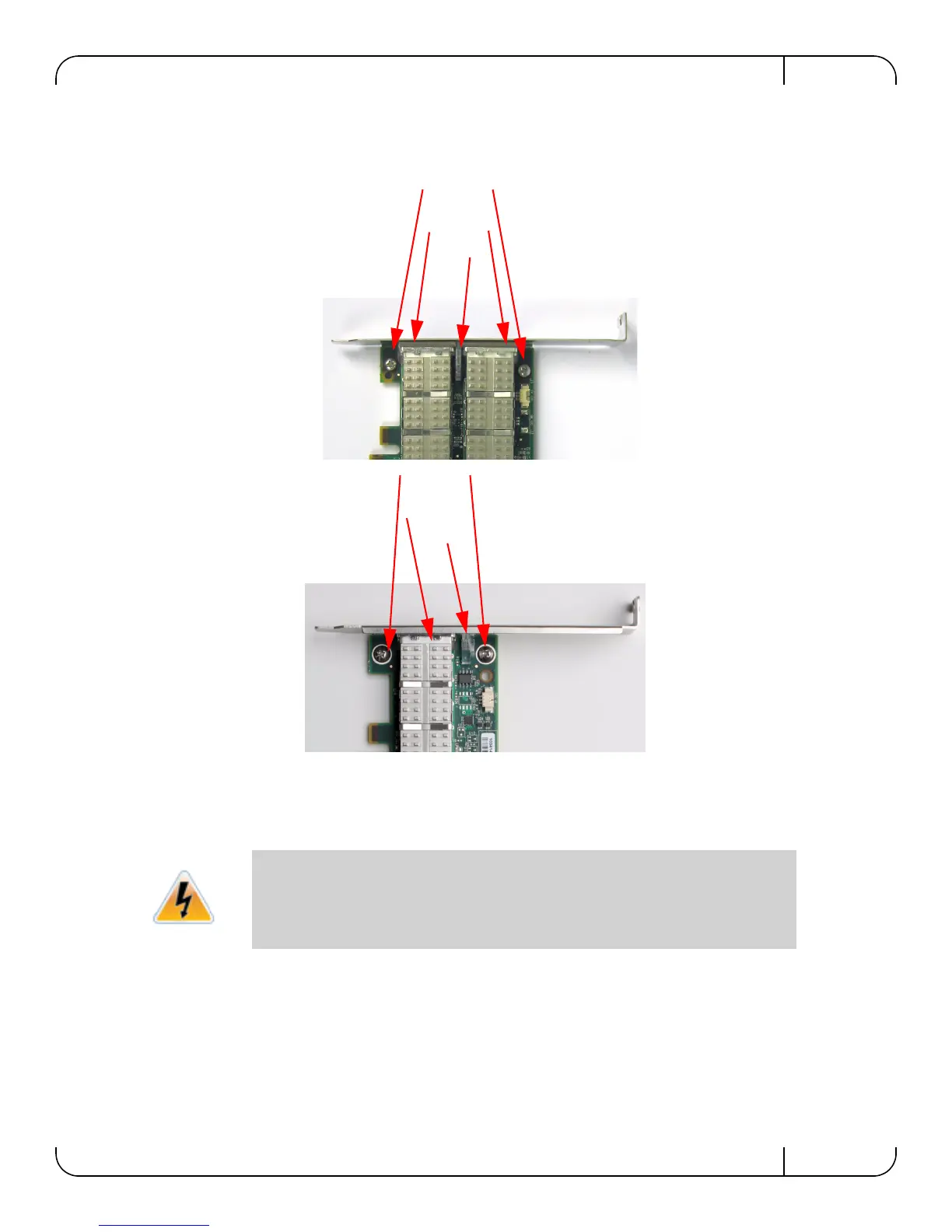

Figure 17: Remove the Bracket
Screws
Gaskets
LEDs
Screws
Gasket
LEDs
1. Remove the two screws holding the bracket in place.
2. The bracket comes loose from the card.
Be careful not to put stress on the LEDs.
3. Save the two screws and the two fiber washers.
C.2 Installing the New Bracket
1. Remove the paper to expose the adhesive on the gasket.
2. Place the gasket for each port onto the new bracket. Ma
ke sure to correctly align the gasket
with the hole in the bracket.

Mellanox Technologies MHQH29C-XTR Specifications

General

Manufacturer	Mellanox Technologies
Model	MHQH29C-XTR
Maximum Data Transfer Rate	40 Gbps
Data Transfer Rate	40 Gbps
Connector Type	QSFP+
Ports	1
Form Factor	Plug-in card
RoHS Compliance	Yes
Product Type	Adapter
Interface (Bus) Type	PCI Express
Data Link Protocol	Ethernet
