85-03-01120 M27 Page 78

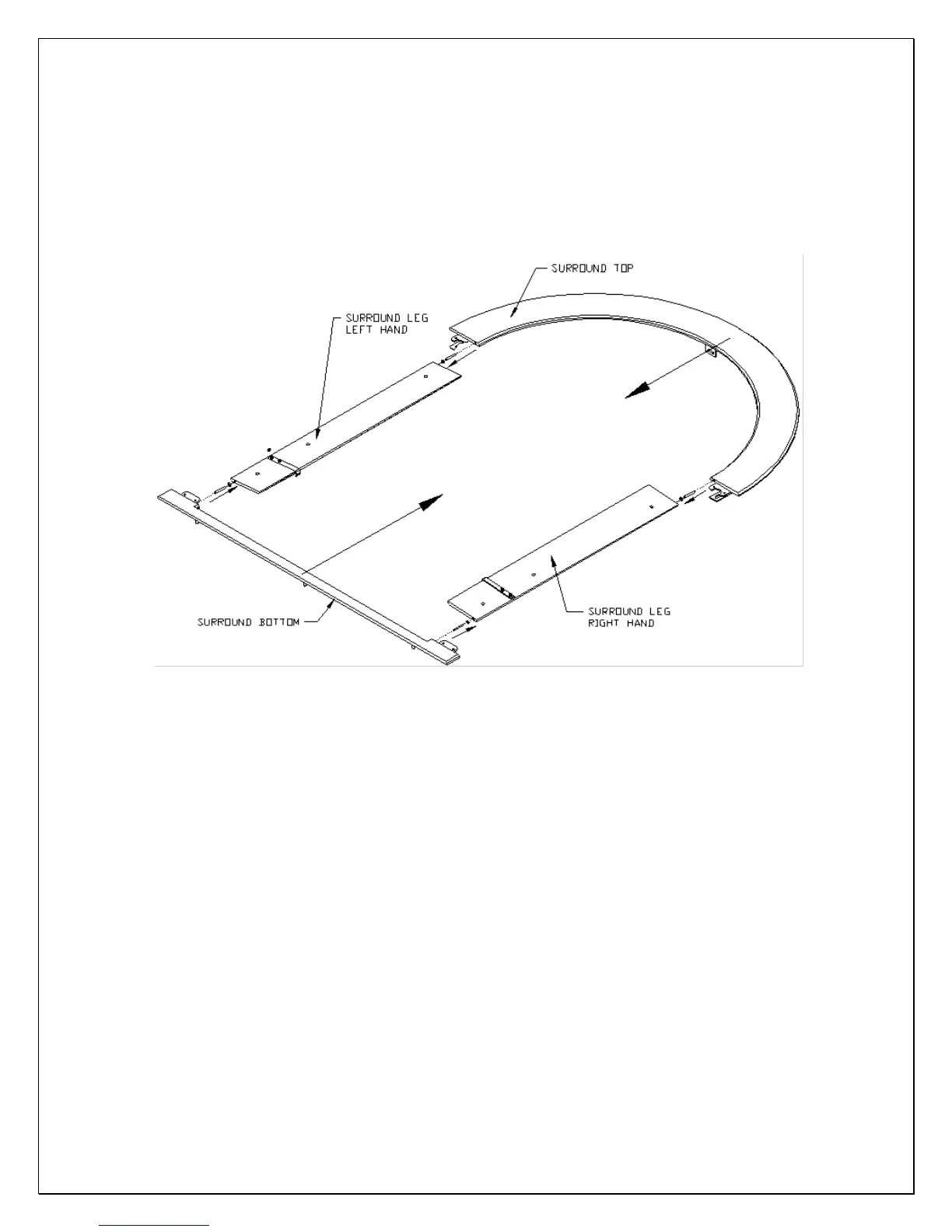

4. Lay the four main surround parts (Top, Left Hand Leg, Right Hand Leg and Bottom) on the floor with their visible sides facing
upwards. See Figure, below.
5. Insert one 1/8” X 1” Hinge Pin into the top and bottom Hinge Pin Holes in the Left Hand and Right-Hand Surround Legs.
6. Slide one 1/8” ID X 5/32” OD spacer washer over each pin.
7. Align Hinge pinholes in Surround Top with the Top Hinge Pins in the Surround Legs. Slide Surround Top over the Top Hinge Pins
until the spacer washer is pinched between the Surround Legs and the Surround Top.
8. Align Hinge pinholes in Surround Bottom with the Bottom Hinge Pins in the Surround Legs. Slide Surround Bot-tom over the
Bottom Hinge Pins until the spacer washer is pinched between the Surround Legs and the Surround Bottom
