Mendota M27 - Page 79

85-03-01120 M27 Page 79

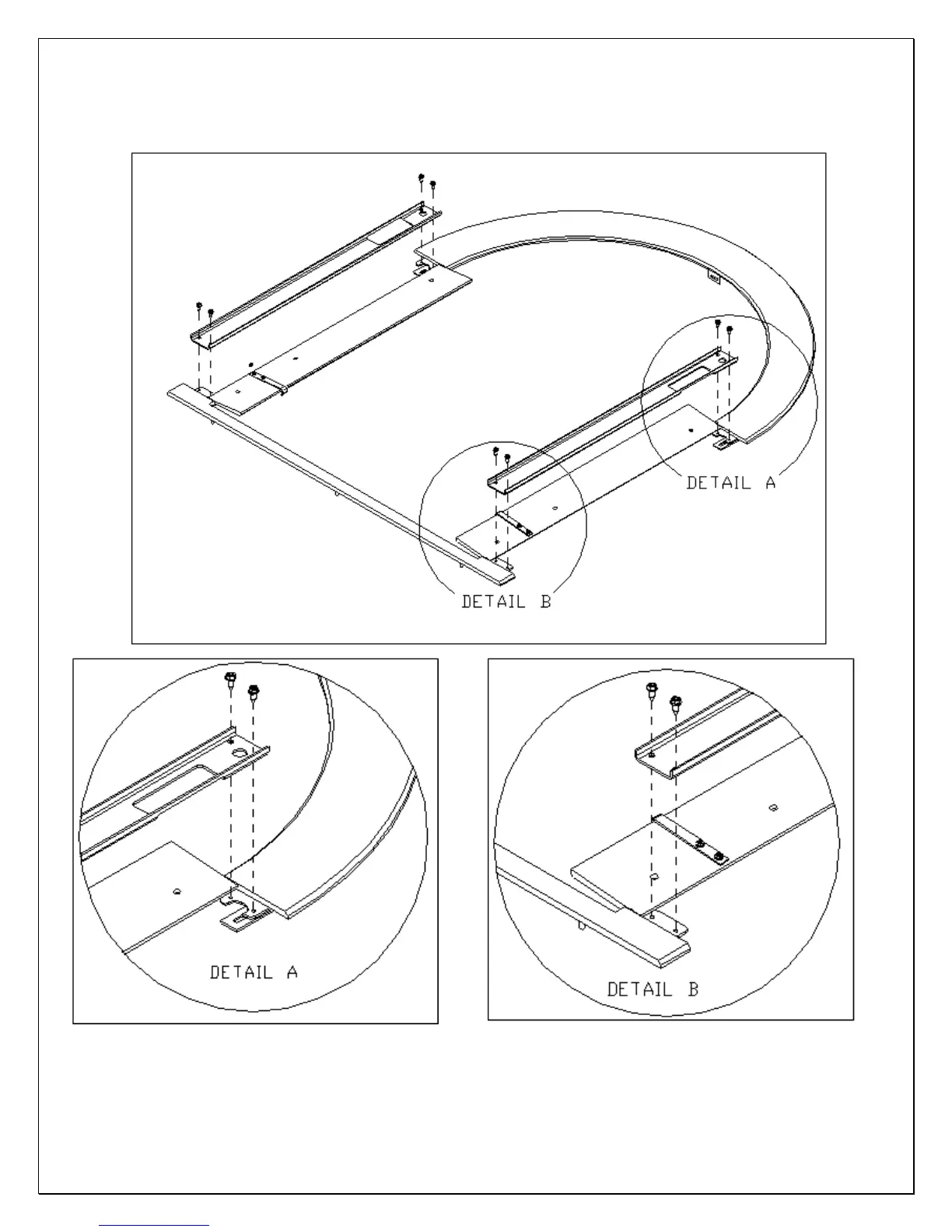

9. Identify and attach the Left Hand and Right-Hand Temporary Braces as shown, below. These braces are designed to keep
the assembly as a ONE_PIECE ASSEMBLY during the installation process. These temporary braces will prevent the Left
Hand and Right-Hand Surround Legs from closing fully. This is normal
10. The Surround Parts are now attached together and the assembly is ready to be attached to the fireplace
